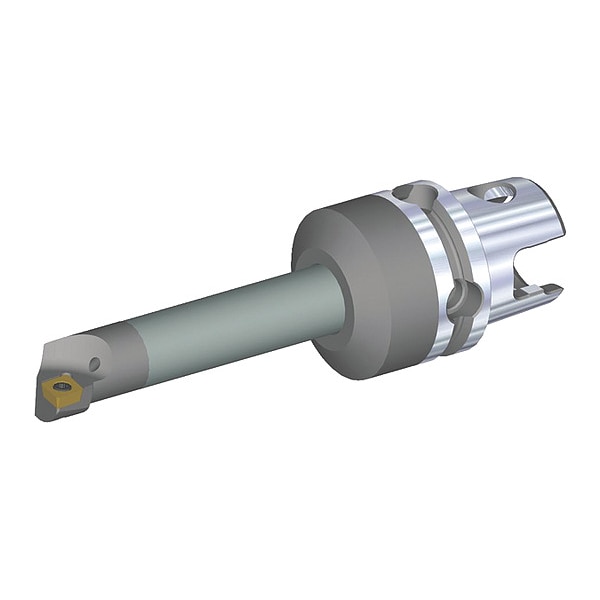

Indexable Cutting Head Unit, KM40TSE10FSCLPR06, 104.95mm L, 80 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 104.95 mm |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | KM40TSE10FSCLPR06 |
| Insert Size | 60,204 |
| Cutting Direction | Right Hand |
| Rake | -4 Degrees Radial, 0 Degrees Axial |
| Shank Dia. | 40 mm |
| Insert Clearance Angle | 11 deg |
| Compatible Hardware | Screw Clamp |
| Side Cutting Edge Angle | -5 deg |
| Center to Cutting Tip | 7 mm |
| Min. Bore Dia. | 13 mm |
| Approach Angle | 95 deg |
| Insert Cutting Edge Length | 6.45 mm |
| Cutting Application | Boring |
| Coolant Fed | Coolant Through |
| Insert Style | CP |
| ISO Number | KM40TSE10FSCLPR06 |
| Insert Holding Type | Screw On |
| Number of Coolant Holes | 1 |
| Max. Bore Depth | 50 mm |
| Standards | ISO 26622 |
| Connection Size | KM40TS |
| Package Quantity | 1 |
