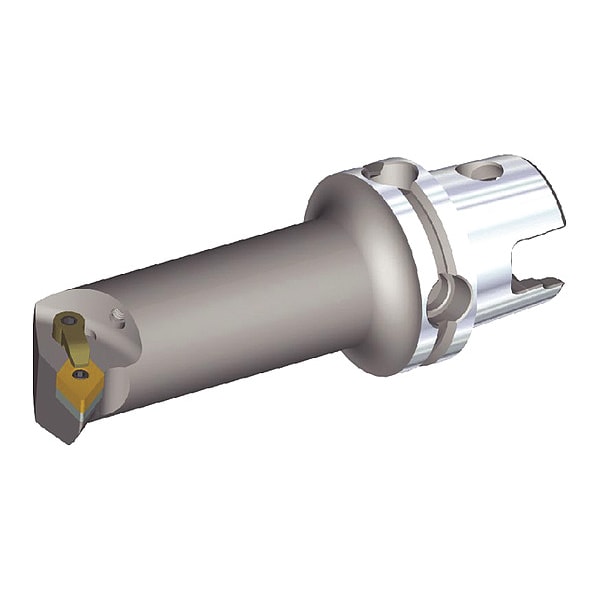

Indexable Cutting Head Unit, KM63TSS40LMDUNR15, 179.95mm L, 55 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 179.95 mm |
| Insert Shape | 55 Degrees Diamond |
| ANSI Code | KM63TSS40LMDUNR15 |
| Cutting Direction | Right Hand |
| Rake | -12 Degrees Radial, -5 Degrees Axial |
| Insert Size | 150408 (432) |
| Shank Dia. | 63 mm |
| Side Cutting Edge Angle | -3 deg |
| Coolant Fed | Coolant Through |
| Insert Style | DN |
| Standards | ISO 26622 |
| Min. Bore Dia. | 50 mm |
| Insert Cutting Edge Length | 15.5 mm |
| Cutting Application | Boring |
| Number of Coolant Holes | 1 |
| Center to Cutting Tip | 27 mm |
| Insert Clearance Angle | 0 deg |
| ISO Number | KM63TSS40LMDUNR15 |
| Max. Bore Depth | 117.14 mm |
| Approach Angle | 93 deg |
| Insert Holding Type | Clamp, Lock Pin |
| Connection Size | KM63TS |
| Package Quantity | 1 |
