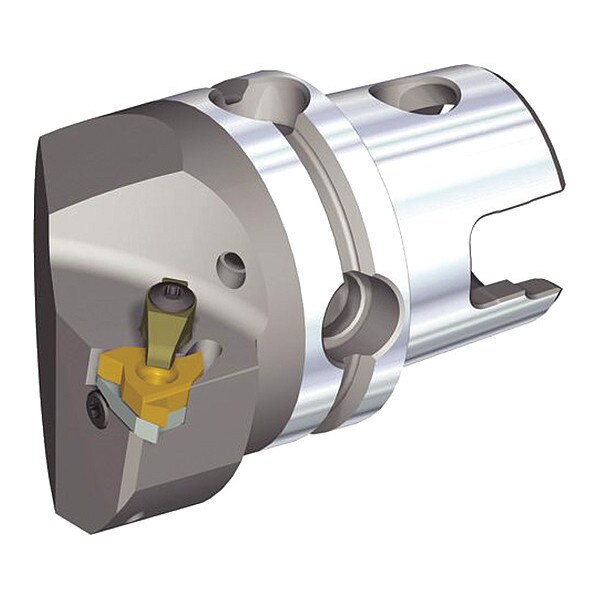

Indexable Thread Cutting Unit Head, KM40TSLSEL16N, 64.95mm L, High Speed Steel
| Item | Indexable Thread Cutting Unit Head |
|---|---|
| Overall Length | 64.95 mm |
| Shank Material | High Speed Steel |
| Insert Shape | Triangle |
| ANSI Code | KM40TSLSEL16N |
| Rake | -15 Degrees Radial, -1.500 Degrees Axial |
| Shank Dia. | 40 mm |
| Insert Size | 16 |
| Cutting Direction | Left Hand |
| Type | Screw Clamping |
| Left/Right Hand | Left Hand |
| Insert Holding Type | Screw |
| Min. Bore Dia. | 54 mm |
| ISO Number | KM40TSLSEL16N |
| Coolant Fed | Coolant Through |
| Cutting Height | 0 mm |
| Cutting Application | Turning, Threading |
| Number of Coolant Holes | 1 |
| Toolholder Style | LSEL |
| Insert Style | LT16NL |
| Standards | ISO 26622 |
| Max. Bore Depth | 40 mm |
| Compatible Hardware | CKC3 Clamp Assembly, LT16NL Gage Insert, SMYE3 Shim, SSA3T Insert Screw, SSY3T Shim Screw |
| Center to Cutting Tip | 27 mm |
| Package Quantity | 1 |
