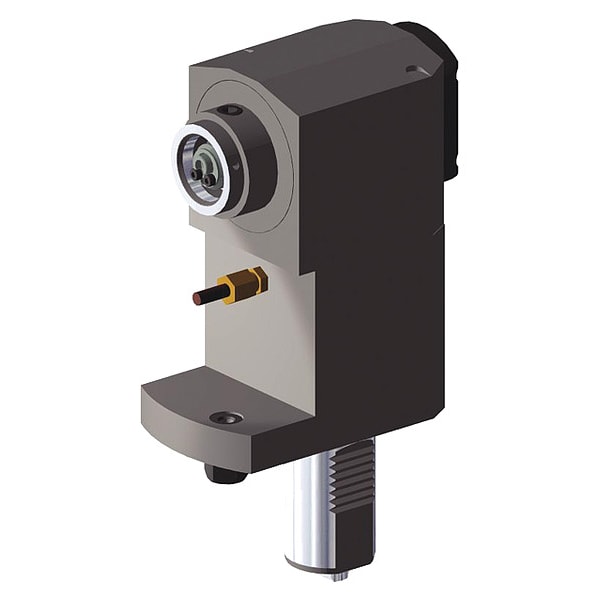

Taper Shank Tool Holder, AB2,
| Item | Taper Shank Tool Holder |
|---|---|
| Projection | 130 mm |
| Nose Dia. | 40 mm |
| Shank Length | 78 mm |
| Standards | ISO 26622 |
| Coolant Fed | Non-Coolant Through |
| Overall Length | 246 mm |
| Compatible with Product Type | Hyper Quadrex 200 Machine Series (12 Station Turret), Hyper Quadrex 250 MSY Machine Series (12 Station Turret), Multiplex 6200 Machine Series (12 Station Turret), Multiplex 6200Y Machine Series (12 Station Turret), Multiplex 6250 Machine Series (12 Station Turret) |
| Package Quantity | 1 |
