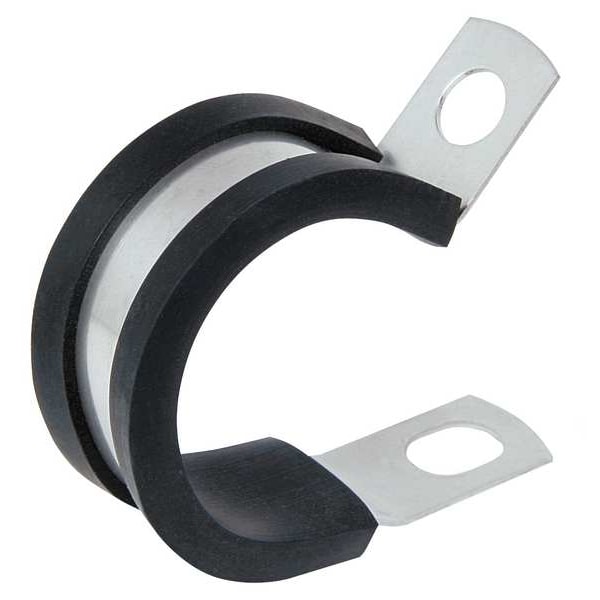

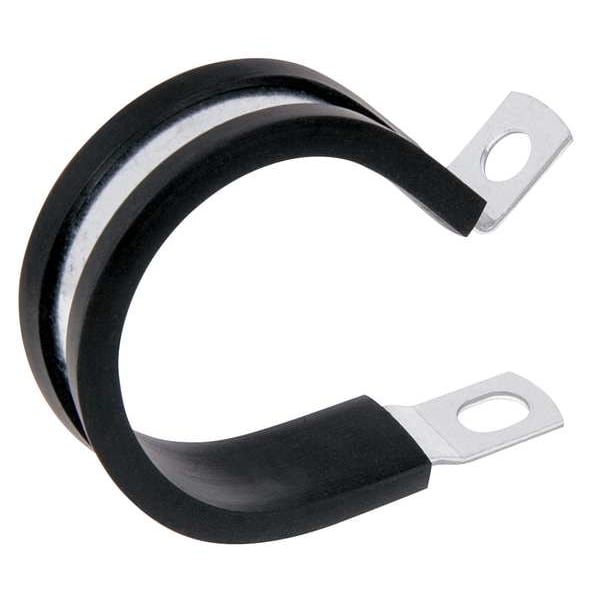

5/16 In Dia. Aluminum, Rubber Cushion Clamp, 0.281 Hole
| Item | Clamp |
|---|---|
| Clamp Material | Aluminum |
| Color | Black |
| Width | 1/2 in |
| Clamp Thickness | 0.032 in |
| Mounting Hole Dia. | 0.2813 in |
| Clamp Finish | Natural |
| Clamp Band Width | 1/2 in |
| Finish | Plain |
| Type | Loop Strap with Cushion |
| Coating Material | EPDM Rubber |
| Package Quantity | 50 |
| Cushion Type | Rubber EPDM |
| Material | Aluminum |
| Thickness | 0.032 in |
| Temp. Range (F) | -65 F to +250 |
| Clamp Color | Black |
| Clamping Dia. | 5/16 in |
| Cable Clamping Dia. | 5/16 in |
| Standards | ASTM A240/A666, ASTM A653/A653M, ASTM B209 |
| Liner Color | Black |
| Additional Features | Part# COL0509AL 5/16 In. Diameter Medium Duty Clamp Aluminum Black EPDM Rubber Cushion Manufactured by KMC Stampings 0.312 In. Clamping Diameter 0.281 In. Screw Hole Size 0.5 In. Width 0.032 In. Material Thickness |
| Product Type | Clamp |
| Operating Temperature - Minimum | -65 deg F |
| Cushion Material | EPDM Rubber |
| Band Width | 1/2 in |
| Operating Temperature - Maximum | 250 deg F |
| Mounting Hole Diameter | 9/32 in |
| Clamping Diameter - Maximum | 5/16 in |
