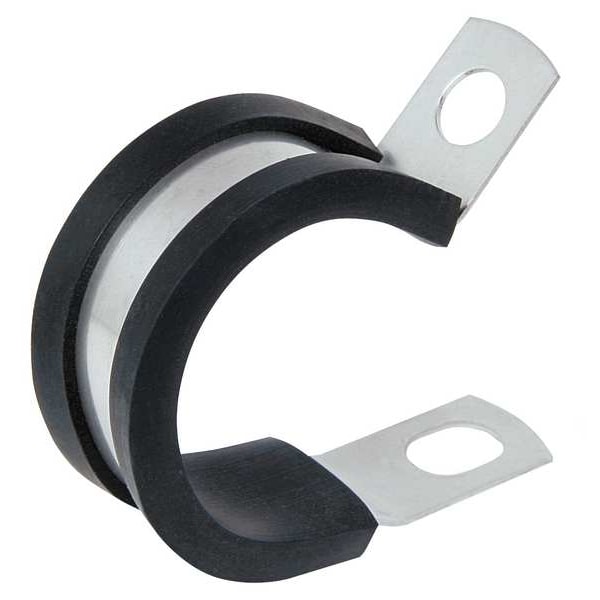

Cable Clamp, 1/2" dia., 3/4" W, PK500
| Item | Cable Clamp |
|---|---|
| Clamp Material | 304 Stainless Steel |
| Coating Material | EPDM Rubber |
| Package Quantity | 500 |
| Clamp Thickness | 0.032 in |
| Clamp Color | Gray |
| Cable Clamping Dia. | 1/2 in |
| Liner Color | Black |
| Type | Cushioned |
| Mounting Hole Dia. | 0.4063 in |
| Clamp Band Width | 3/4 in |
| Clamp Finish | Natural |
| Cushion Type | Extruded EPDM |
| Temp. Range (F) | -50 to 350 |
| Standards | ASTM A240/A666, ASTM A653/A653M, ASTM B209 |
| Material | 304 Stainless Steel |
| Thickness | 0.032 in |
| Finish | Plain |
| Additional Features | Part# COL0813SS 1/2 In. Diameter Medium Duty Clamp 304 Stainless Steel Black EPDM Rubber Cushion Manufactured by KMC Stampings 0.5 In. Clamping Diameter 0.406 In. Screw Hole Size 0.75 In. Width 0.032 In. Material Thickness |
| Band Width | 3/4 in |
| Operating Temperature - Minimum | -50 deg F |
| Clamping Diameter - Maximum | 1/2 in |
| Product Type | Clamp |
| Cushion Material | EPDM Rubber |
| Mounting Hole Diameter | 13/32 in |
| Operating Temperature - Maximum | 350 deg F |
