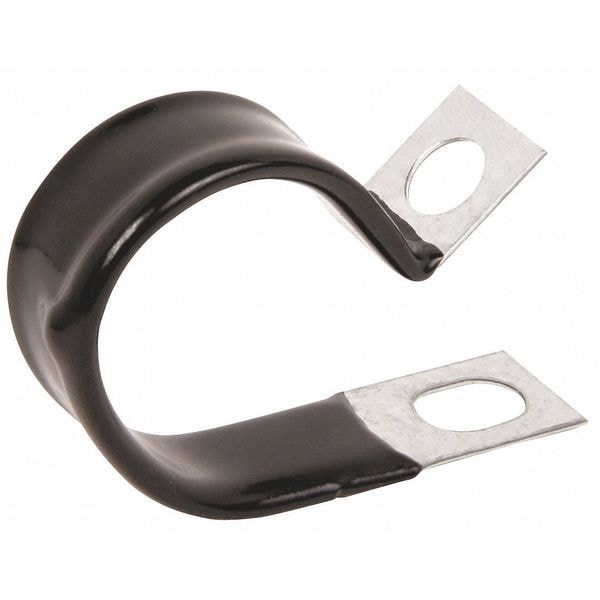

Cable Clamp, 5/16" dia., 1/2" W, PK10
| Item | Cable Clamp |
|---|---|
| Clamp Material | Galvanized Steel |
| Cushion Type | Vinyl |
| Clamp Thickness | 0.025 in |
| Mounting Hole Dia. | 0.2813 in |
| Coating Material | Vinyl Plastisol |
| Cable Clamping Dia. | 5/16 in |
| Type | Cushioned with Flared Edge |
| Temp. Range (F) | -30 to 180 |
| Clamp Band Width | 1/2 in |
| Package Quantity | 10 |
| Liner Color | Black |
| Clamp Finish | Hot Dipped Galvanized |
| Clamp Color | Gray |
| Standards | ASTM A653/A653M |
| Material | Steel |
| Finish | Galvanized |
| Thickness | 0.025 in |
| Additional Features | Part# CFV0609Z1 5/16 In. Diameter Light Duty, Vinyl Cush Flared Clamp Hot-Dipped Galvanized Steel, Chem-Treated G90 Black Vinyl Plastisol Cushion Manufactured by KMC Stampings 0.312 In. Clamping Diameter 0.281 In. Screw Hole Size 0.5 In. Width 0.025 In. Material Thickness |
| Cushion Material | Vinyl Plastisol |
| Operating Temperature - Minimum | -30 deg F |
| Product Type | Edge Clamp |
| Clamping Diameter - Maximum | 5/16 in |
| Mounting Hole Diameter | 9/32 in |
| Operating Temperature - Maximum | 180 deg F |
| Band Width | 1/2 in |
