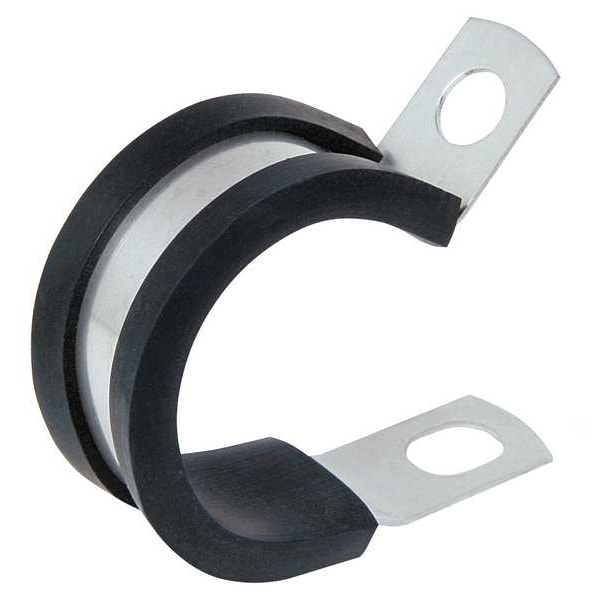

Cable Clamp, 5/8" dia., 5/8" W, PK10
| Item | Cable Clamp |
|---|---|
| Clamp Material | 304 Stainless Steel |
| Cable Clamping Dia. | 5/8 in |
| Cushion Type | Extruded EPDM |
| Liner Color | Black |
| Package Quantity | 10 |
| Clamp Band Width | 5/8 in |
| Clamp Finish | Natural |
| Clamp Color | Gray |
| Mounting Hole Dia. | 0.3438 in |
| Type | Cushioned |
| Temp. Range (F) | -50 to 350 |
| Coating Material | EPDM Rubber |
| Clamp Thickness | 0.032 in |
| Material | 304 Stainless Steel |
| Standards | ASTM A240/A666, ASTM A653/A653M, ASTM B209 |
| Thickness | 0.032 in |
| Finish | Plain |
| Additional Features | Part# COL1011SS 5/8 In. Diameter Medium Duty Clamp 304 Stainless Steel Black EPDM Rubber Cushion Manufactured by KMC Stampings 0.625 In. Clamping Diameter 0.343 In. Screw Hole Size 0.625 In. Width 0.032 In. Material Thickness |
| Band Width | 5/8 in |
| Product Type | Clamp |
| Mounting Hole Diameter | 11/32 in |
| Clamping Diameter - Maximum | 5/8 in |
| Cushion Material | EPDM Rubber |
| Operating Temperature - Maximum | 350 deg F |
| Operating Temperature - Minimum | -50 deg F |
