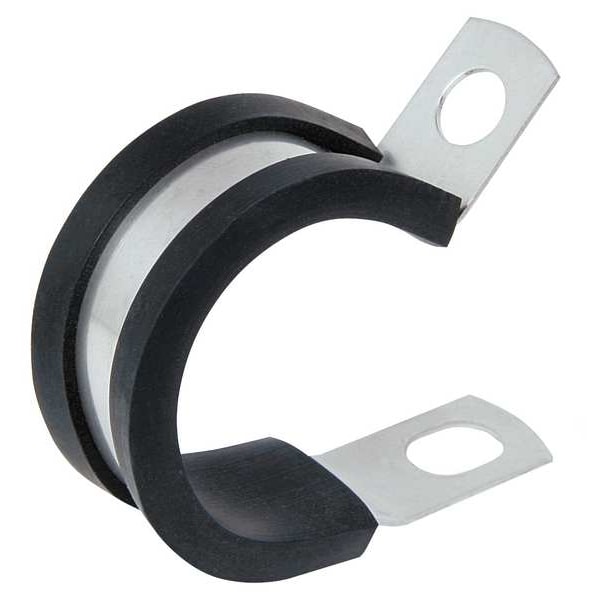

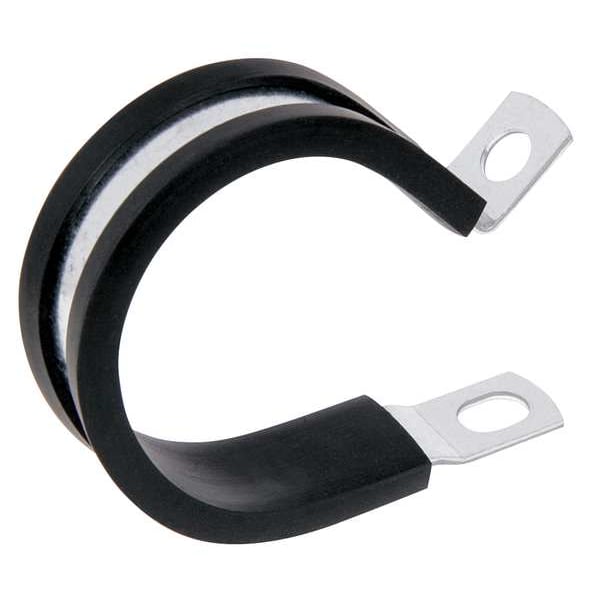

Clamp, Cushioned, EPDM, Dia 3/4 In, PK25
| Item | Clamp |
|---|---|
| Clamp Material | Aluminum |
| Color | Black |
| Width | 1/2 in |
| Coating Material | EPDM Rubber |
| Cushion Type | Rubber EPDM |
| Temp. Range (F) | -65 F to +250 |
| Cable Clamping Dia. | 3/4 in |
| Clamp Finish | Natural |
| Clamp Thickness | 0.032 in |
| Thickness | 0.032 in |
| Clamp Color | Black |
| Clamping Dia. | 3/4 in |
| Mounting Hole Dia. | 0.2813 in |
| Finish | Plain |
| Package Quantity | 25 |
| Clamp Band Width | 1/2 in |
| Material | Aluminum |
| Type | Loop Strap with Cushion |
| Standards | ASTM A240/A666, ASTM A653/A653M, ASTM B209 |
| Liner Color | Black |
| Additional Features | Part# COL1209AL 3/4 In. Diameter Medium Duty Clamp Aluminum Black EPDM Rubber Cushion Manufactured by KMC Stampings 0.75 In. Clamping Diameter 0.281 In. Screw Hole Size 0.5 In. Width 0.032 In. Material Thickness |
| Cushion Material | EPDM Rubber |
| Operating Temperature - Maximum | 250 deg F |
| Clamping Diameter - Maximum | 3/4 in |
| Operating Temperature - Minimum | -65 deg F |
| Band Width | 1/2 in |
| Mounting Hole Diameter | 9/32 in |
| Product Type | Clamp |
