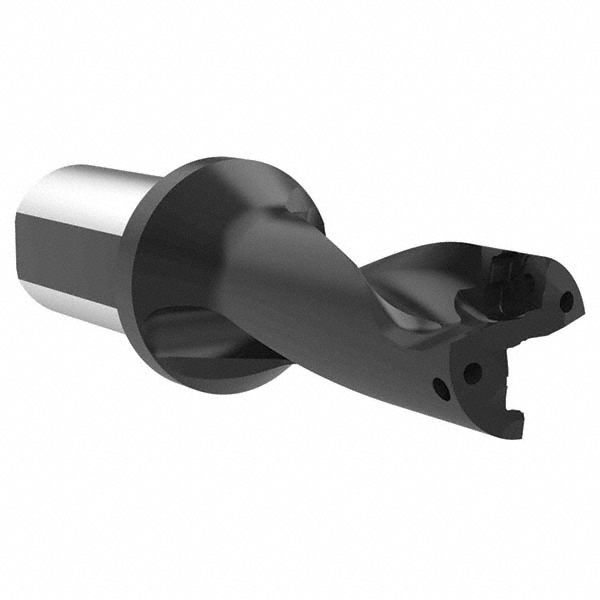

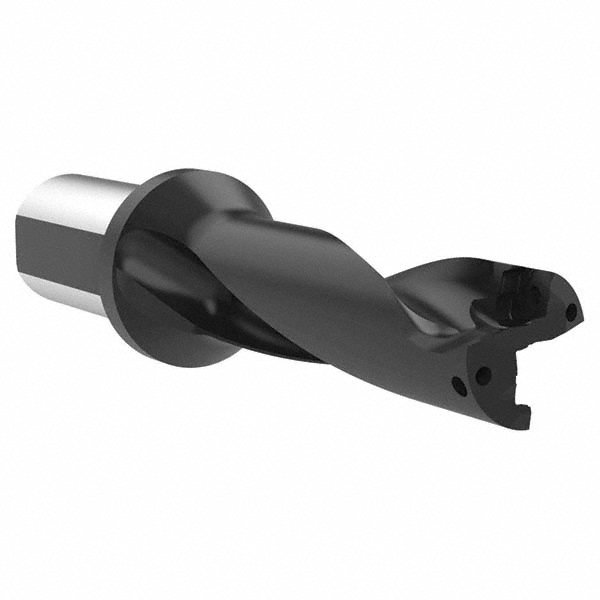

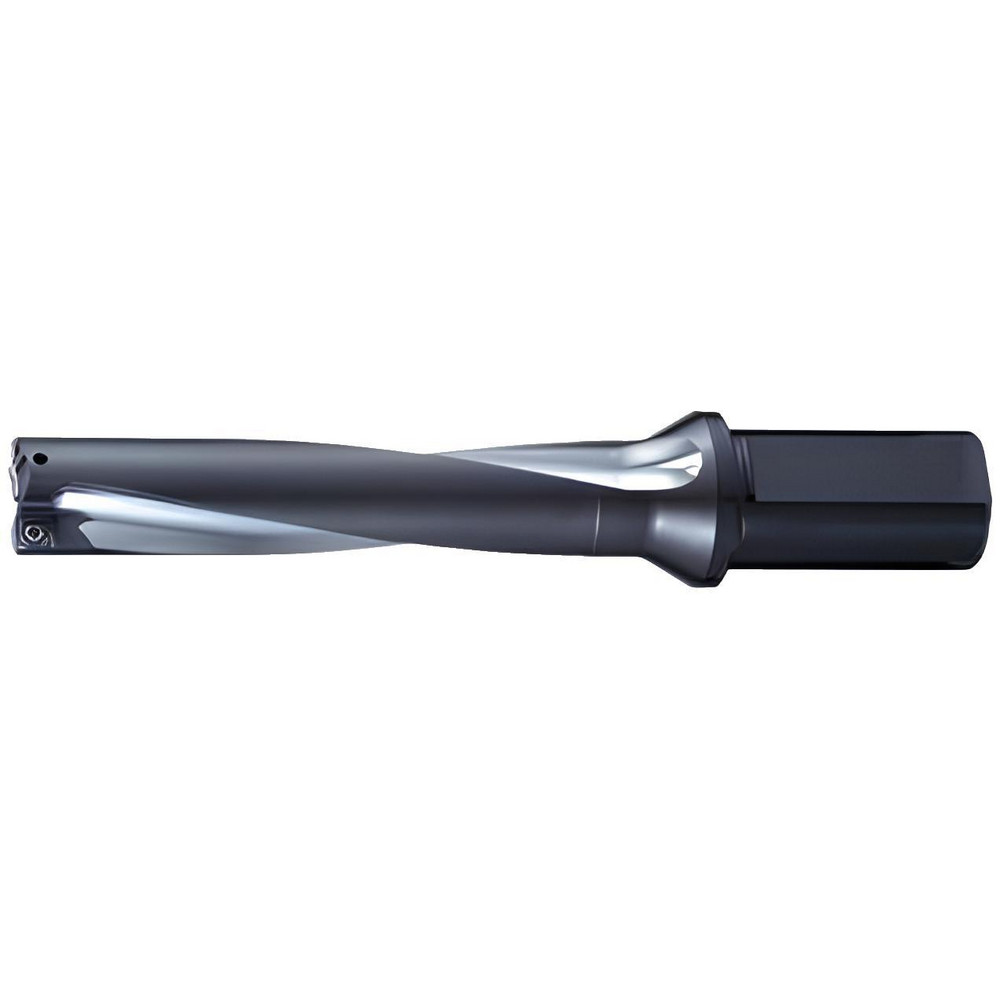

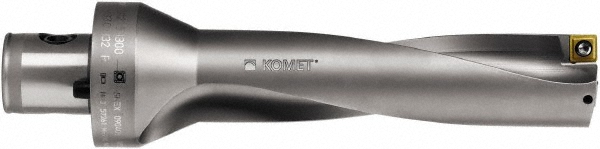

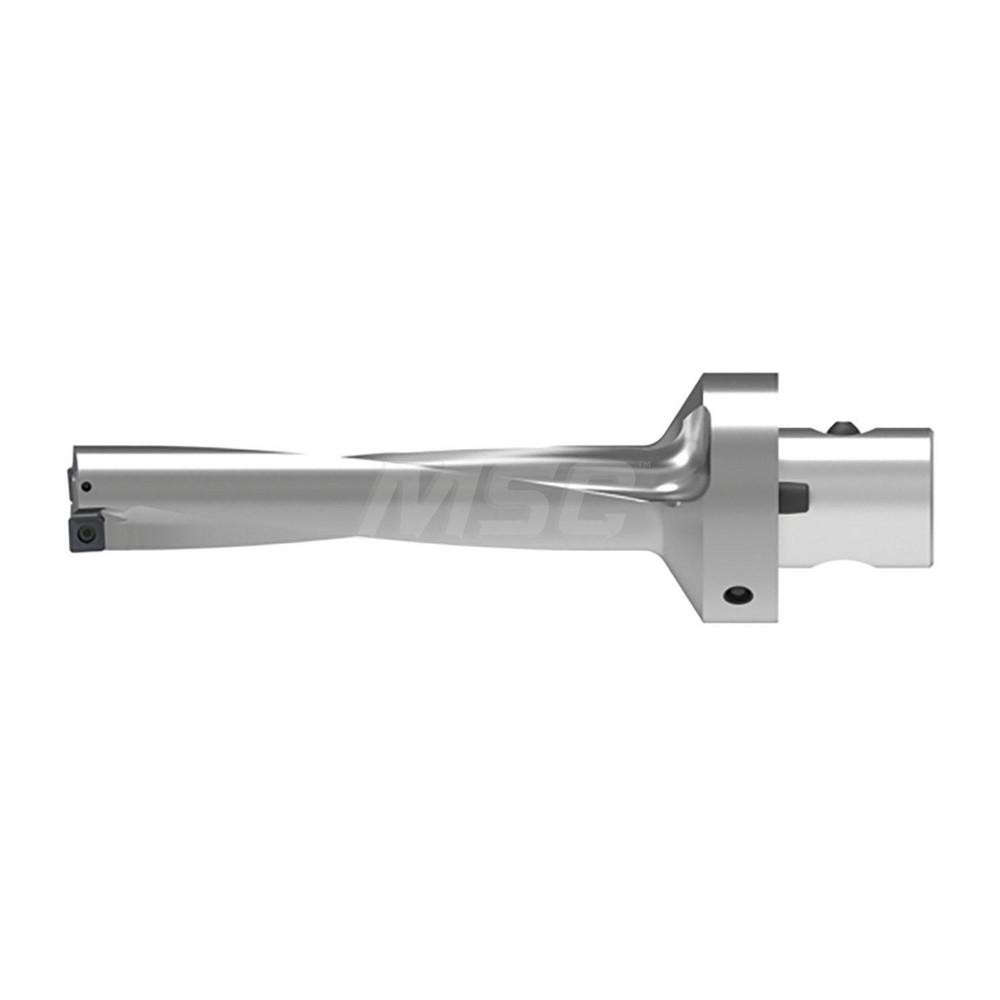

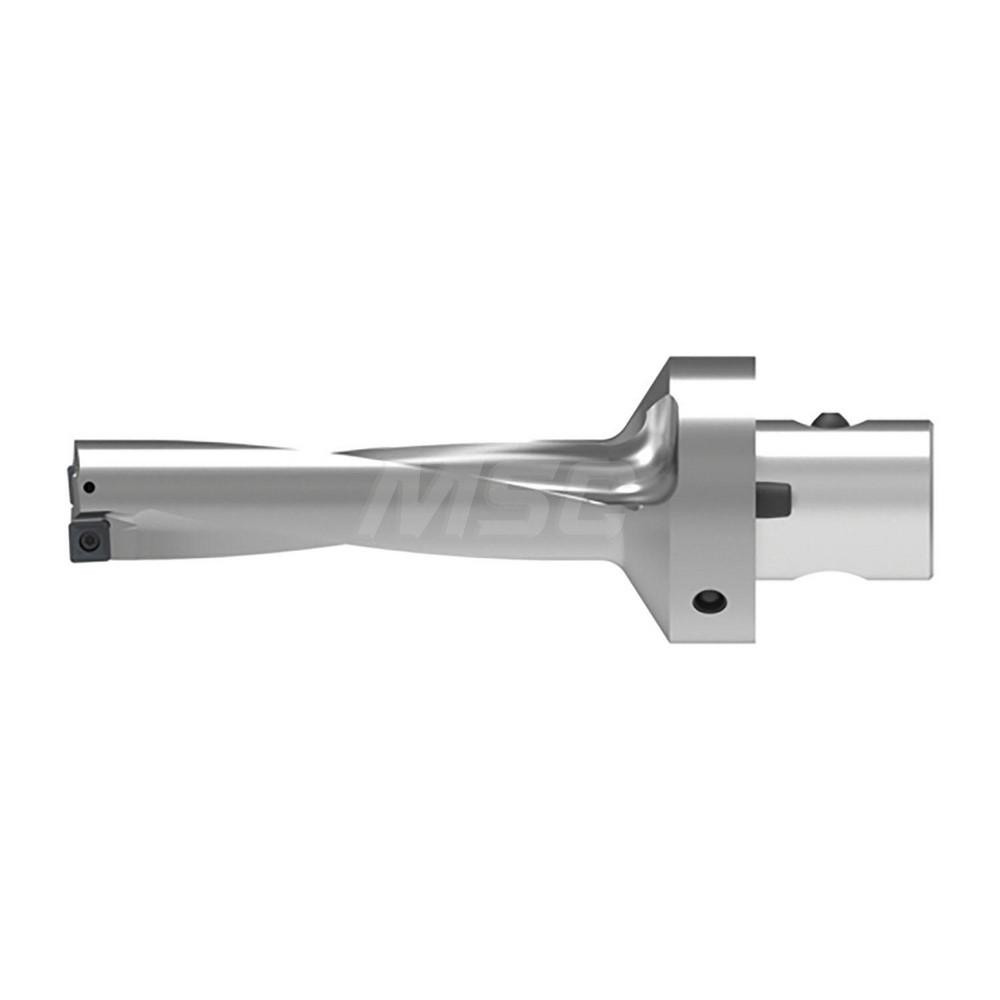

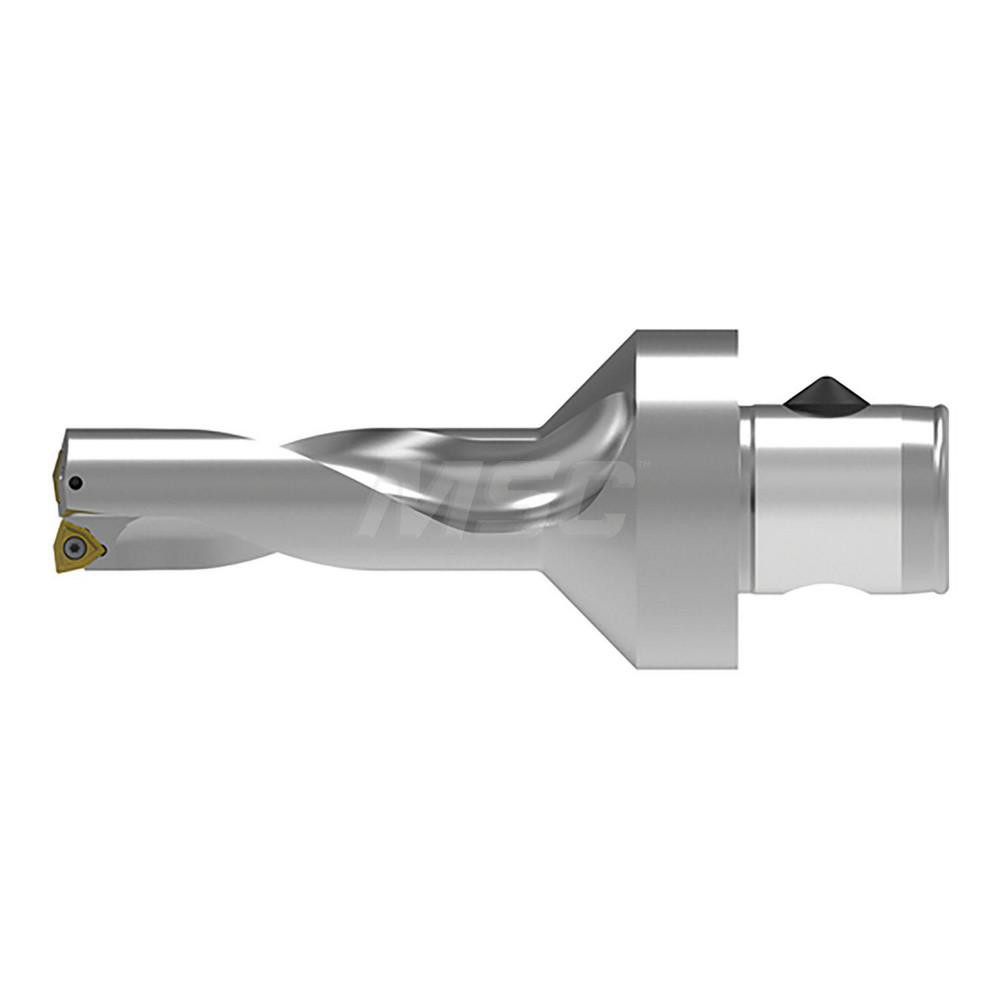

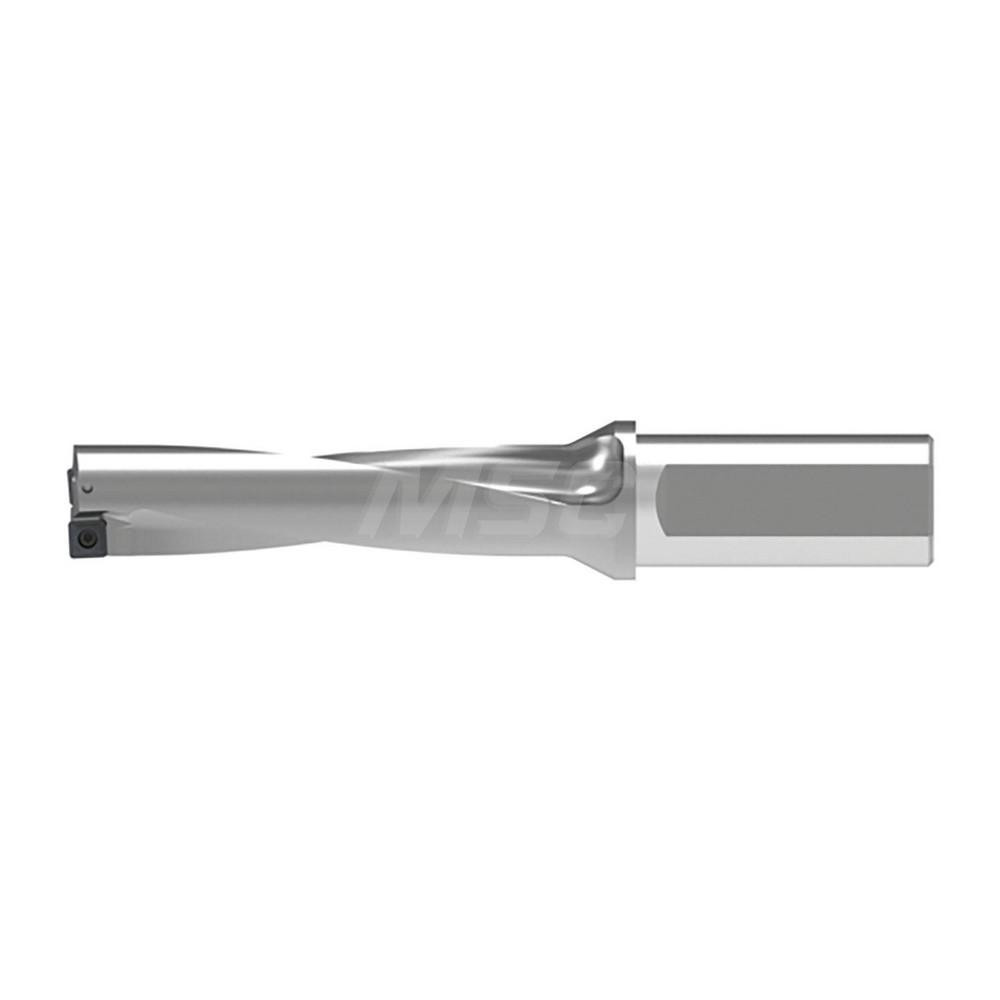

Weldon Flat & Flange Shank, Uses SOGX 110408 Inserts, Series KUB Pentron
| Compatible Drill Style | KUBP |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Decimal Inch) | 5.5118 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 34.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Compatible Insert Size Code | 110408 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

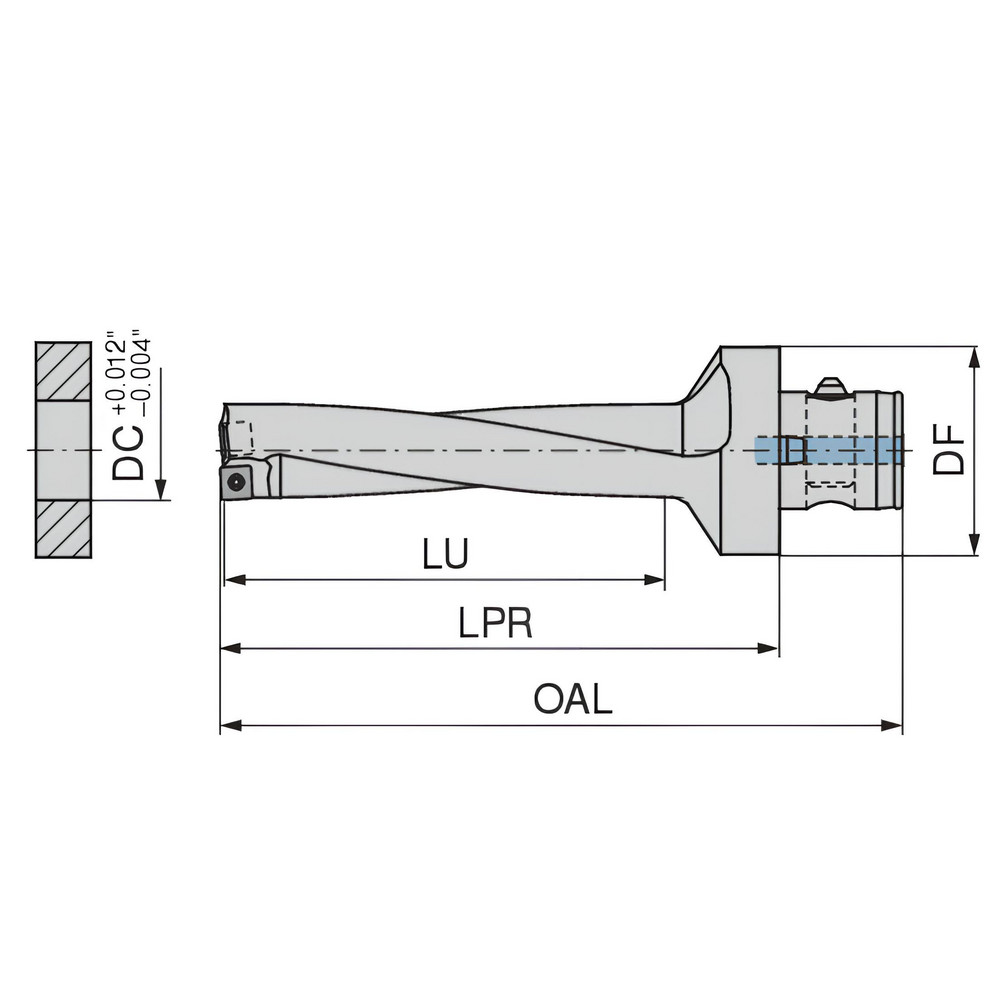

| Overall Length (Decimal Inch) | 8.6220 |
| Series | KUB Pentron |
| Flute Length (Decimal Inch) | 5.5118 |
| Body Length (Decimal Inch) | 7.1260 |
| Shank Length (Decimal Inch) | 1.4960 |
| Modular Connection Size | ABS63 |
| Tool Application | Drilling; Cross Hole; Inclined Hole Exit |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4291 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOGX 110408 |
| Collar Diameter (Decimal Inch) | 2.4803 |
| Insert Lock Screw | N0057261 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 11629052 |
