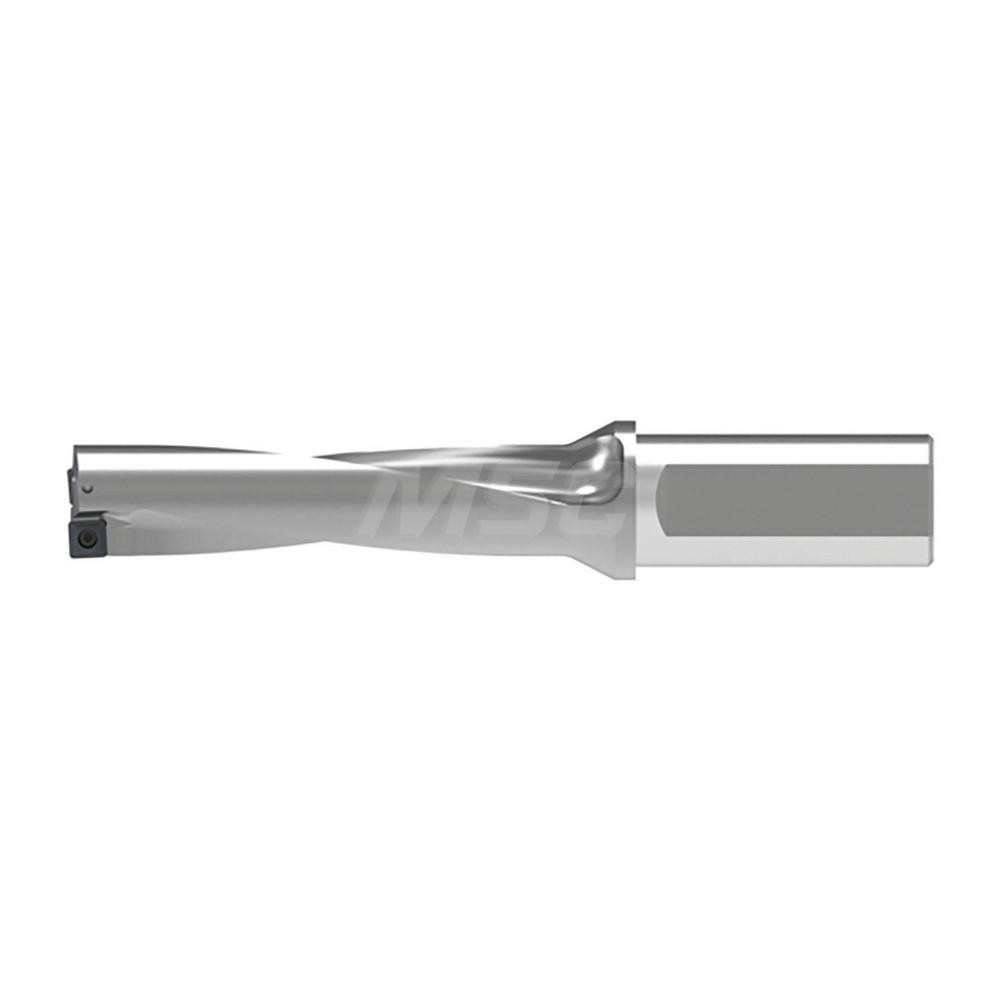

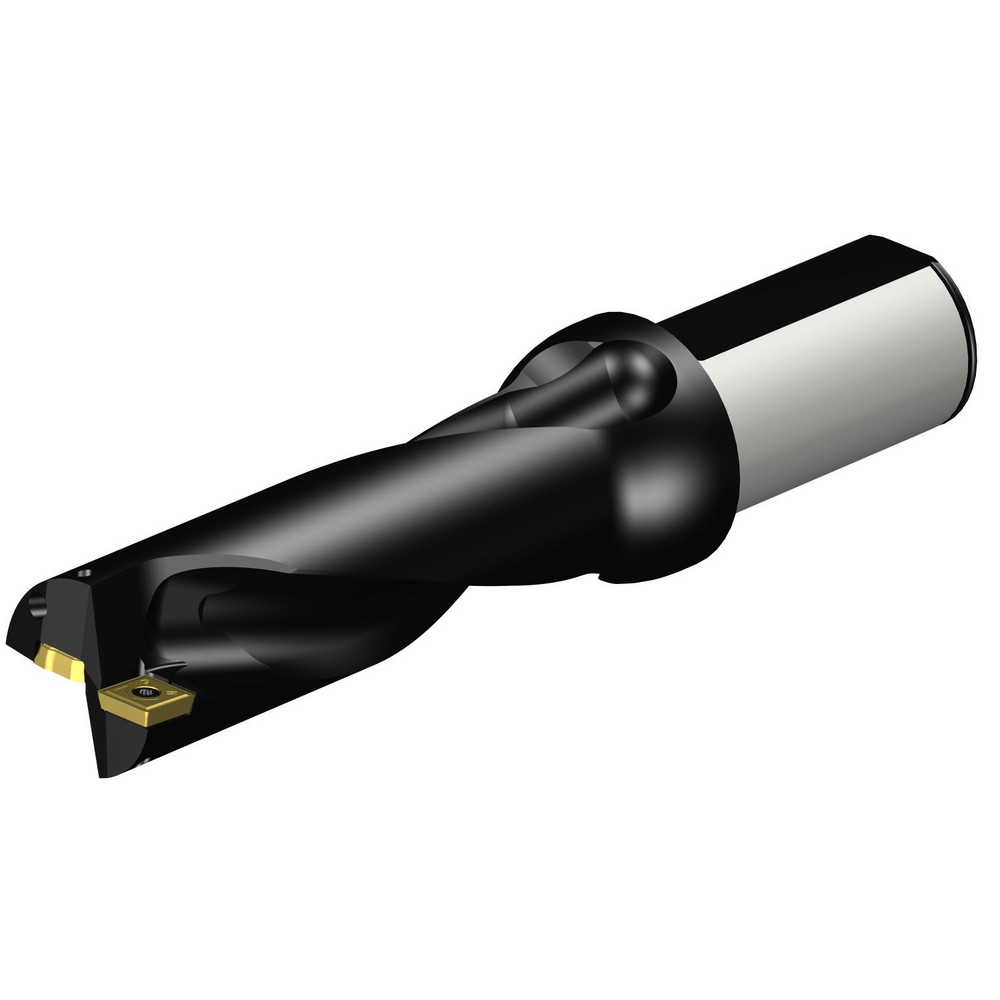

Weldon Flat & Flange Shank, Uses SOGX 120408 Inserts, Series KUB Pentron
| Compatible Drill Style | KUBP |
|---|---|
| Maximum Drill Diameter (Inch) | 1-15/32 |
| Maximum Drill Diameter (Decimal Inch) | 1.4688 |
| Maximum Drill Depth (Inch) | 5-63/64 |
| Maximum Drill Depth (Decimal Inch) | 5.9840 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Compatible Insert Size Code | 120408 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

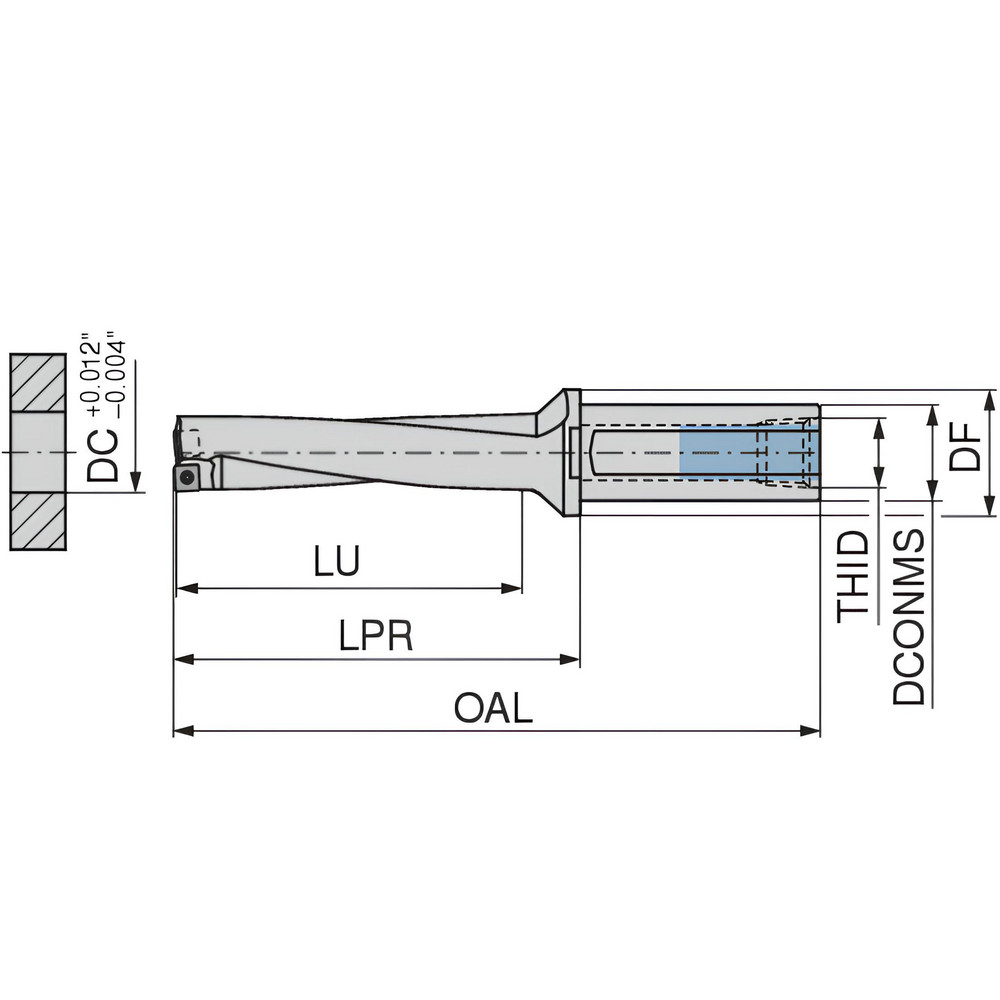

| Overall Length (Decimal Inch) | 10.7969 |
| Overall Length (Inch) | 10-51/64 |
| Series | KUB Pentron |
| Flute Length (Decimal Inch) | 5.9840 |
| Body Length (Decimal Inch) | 7.0470 |
| Shank Length (Decimal Inch) | 3.7499 |
| Coolant Hole Thread Size | "3/4-14 NPT" |
| Tool Application | Drilling; Cross Hole; Inclined Hole Exit |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4724 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOGX 120408 |
| Collar Diameter (Decimal Inch) | 1.9700 |
| Shank End Coolant Hole Thread Size (Inch) | 3/4 |
| Insert Lock Screw | N0057301 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 11635166 |
