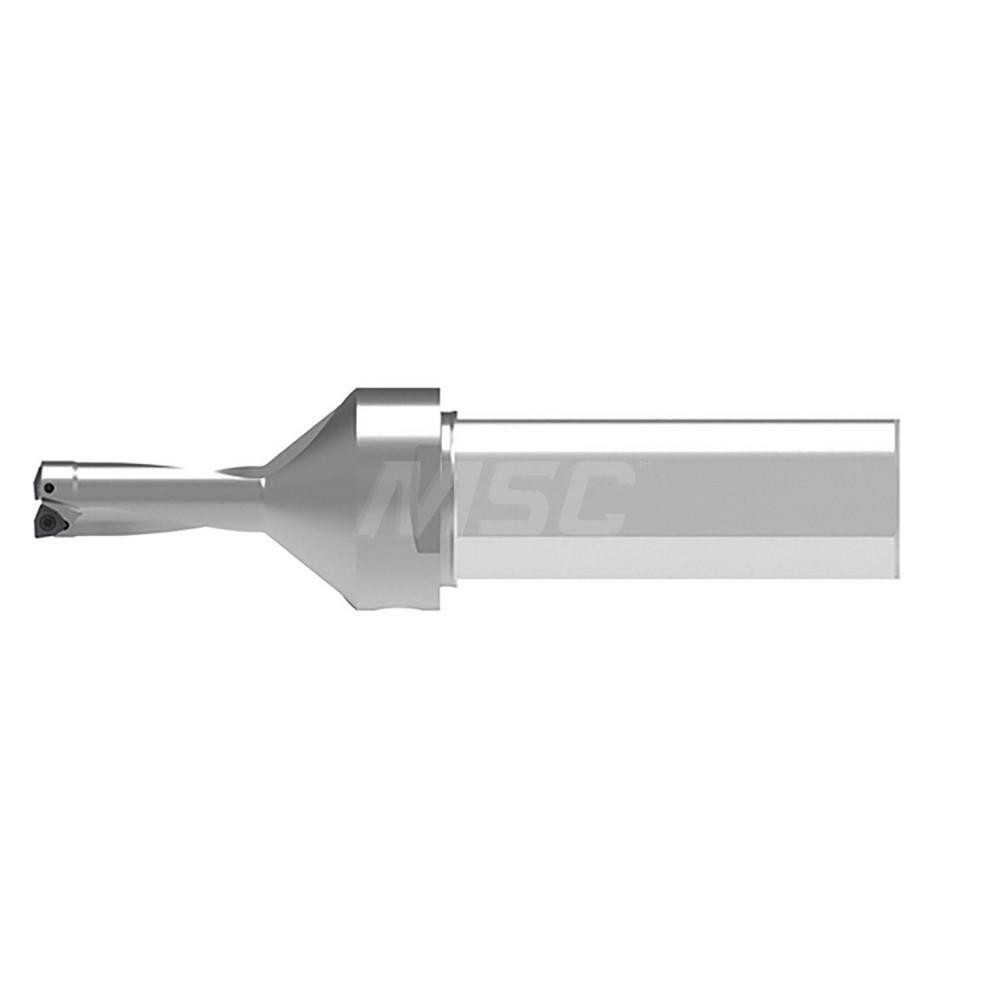

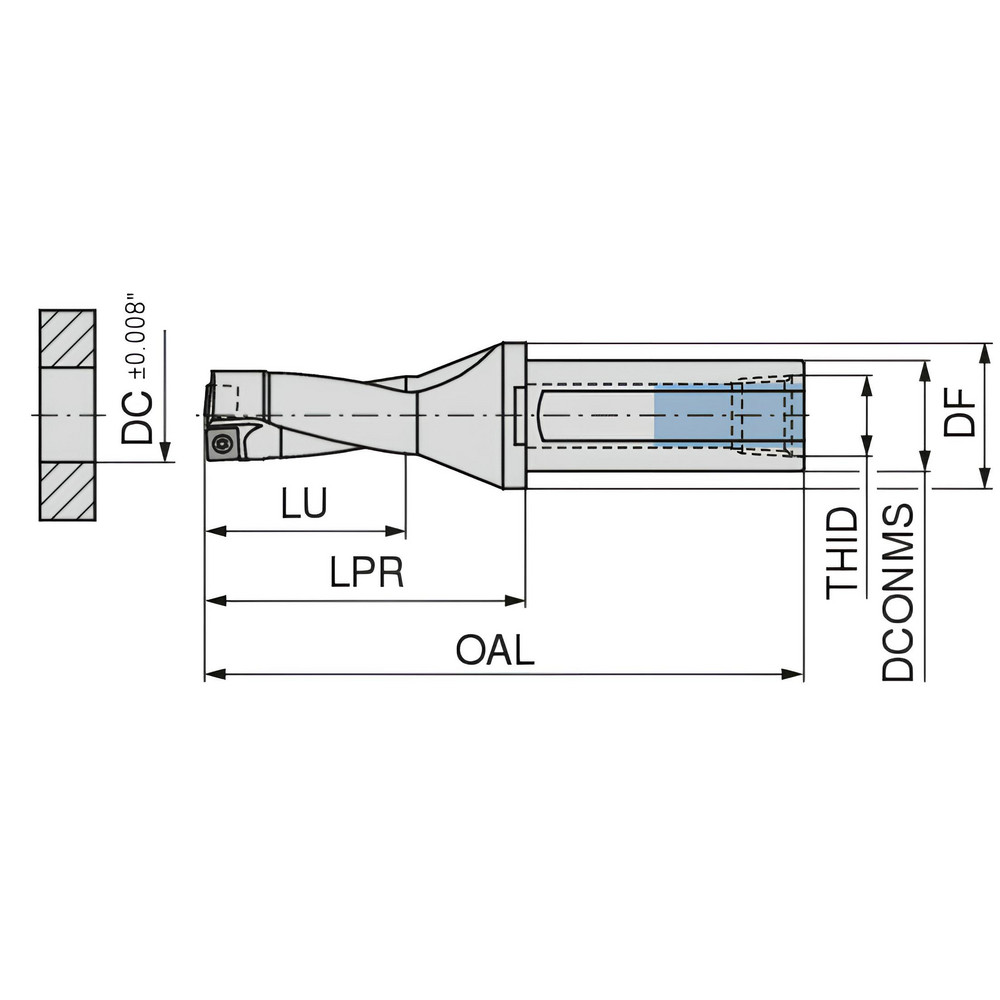

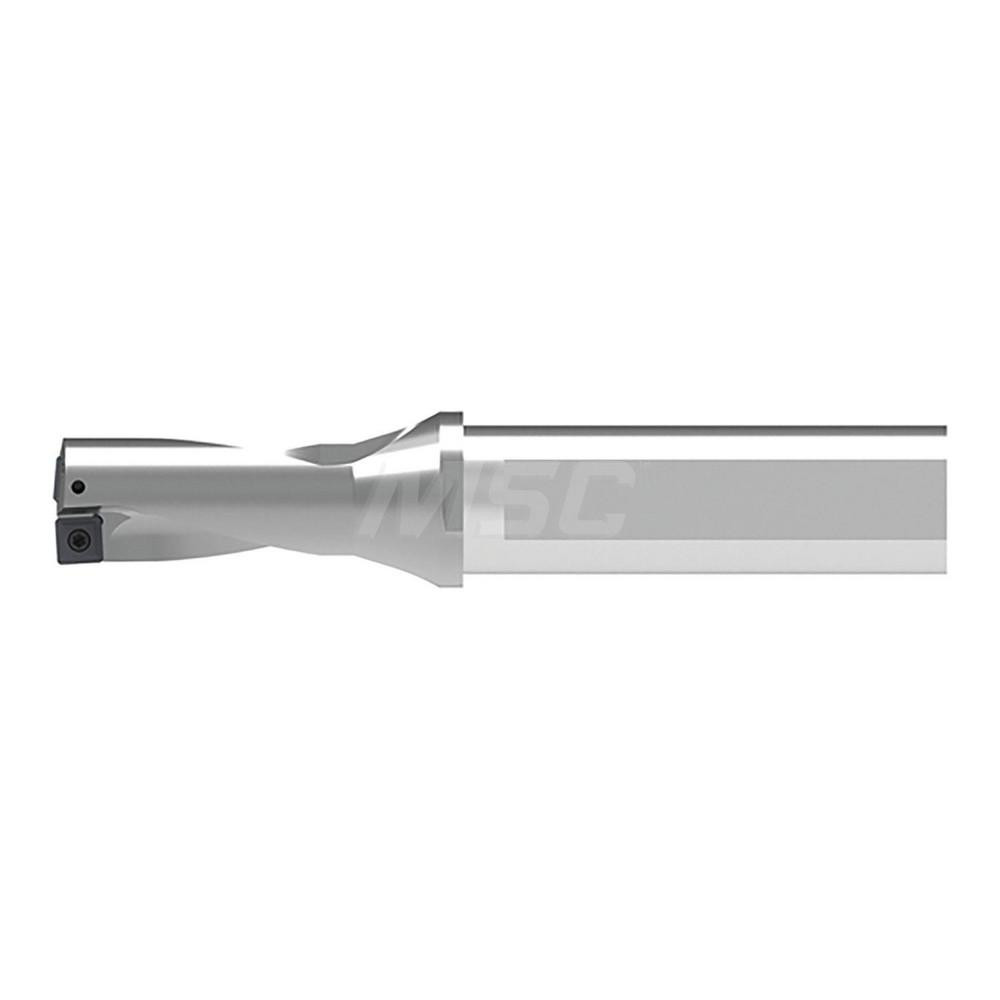

Weldon Flat & Flange Shank, Uses SOEX 07T308 Inserts, Series KUB Quatron
| Compatible Drill Style | KUBQ |
|---|---|
| Maximum Drill Diameter (Inch) | 15/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.9375 |
| Maximum Drill Depth (Decimal Inch) | 1.8900 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Compatible Insert Size Code | 07T308 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.0850 |
| Series | KUB Quatron |
| Flute Length (Decimal Inch) | 1.8900 |
| Body Length (Decimal Inch) | 2.8350 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3126 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOEX 07T308 |
| Collar Diameter (Decimal Inch) | 1.5400 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | N0057571 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 11637055 |
