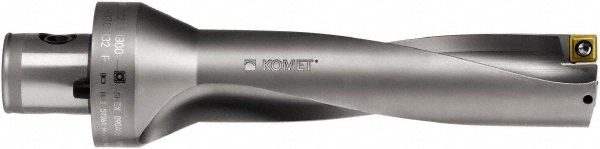

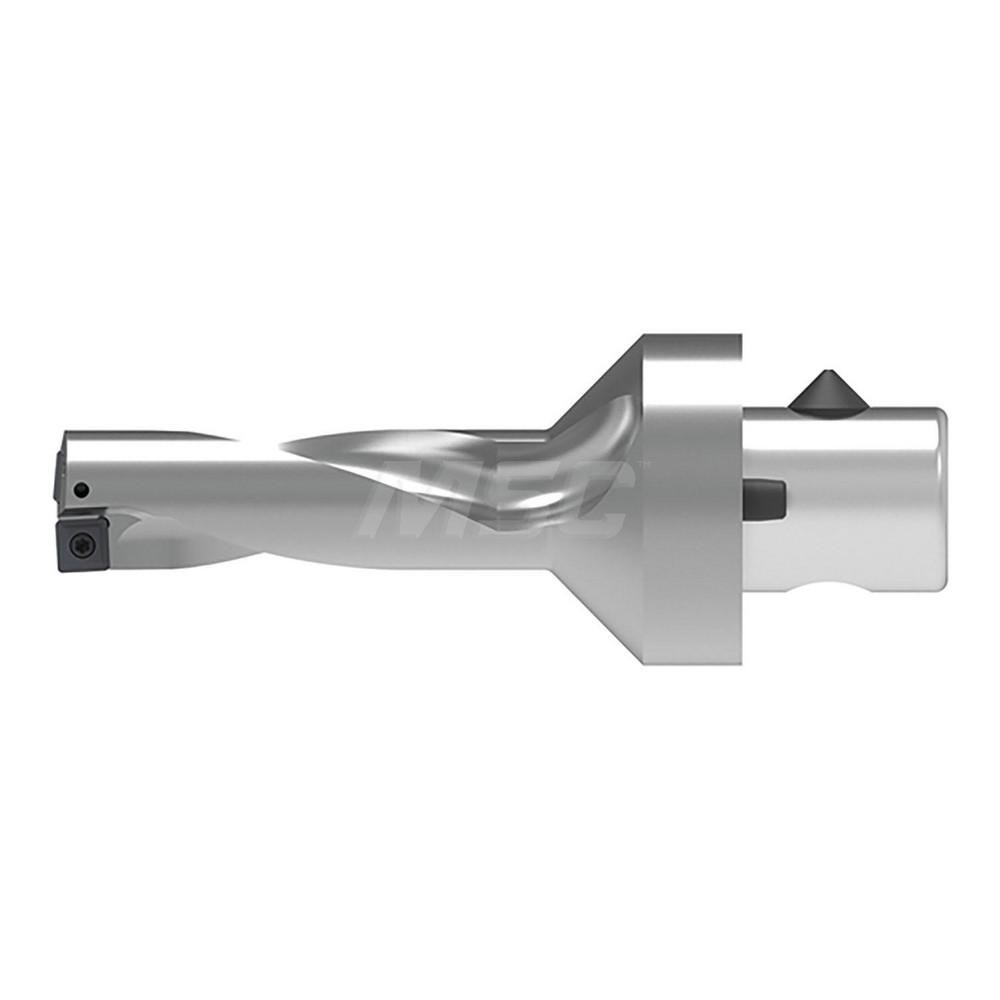

Weldon Flat & Flange Shank, Uses SOEX 050204 Inserts, Series KUB Quatron
| Compatible Drill Style | KUBQ |
|---|---|
| Maximum Drill Diameter (Inch) | 19/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.5938 |
| Maximum Drill Depth (Decimal Inch) | 1.8900 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 28.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.4880 |
| Series | KUB Quatron |
| Flute Length (Decimal Inch) | 1.8900 |
| Body Length (Decimal Inch) | 3.2680 |
| Shank Length (Decimal Inch) | 1.2200 |
| Modular Connection Size | ABS50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2189 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOEX 050204 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Insert Lock Screw | N0056041 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 11637014 |
