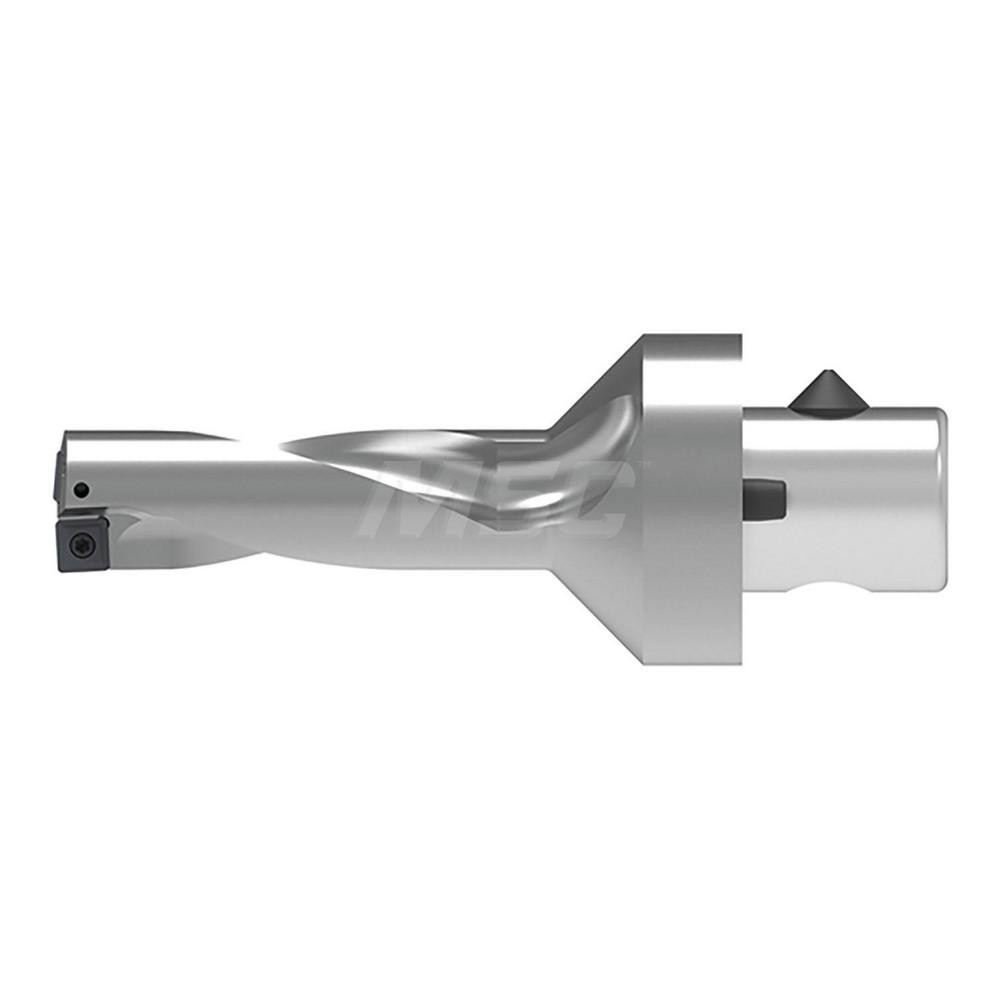

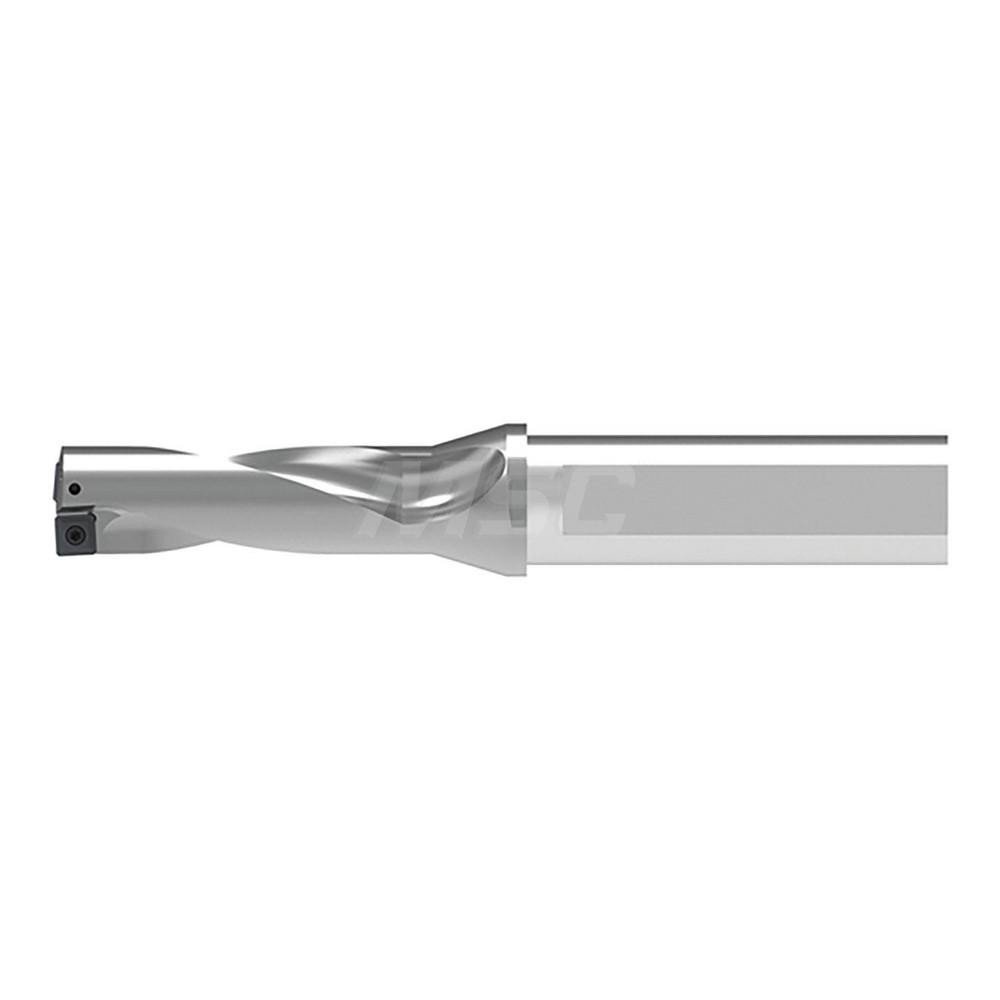

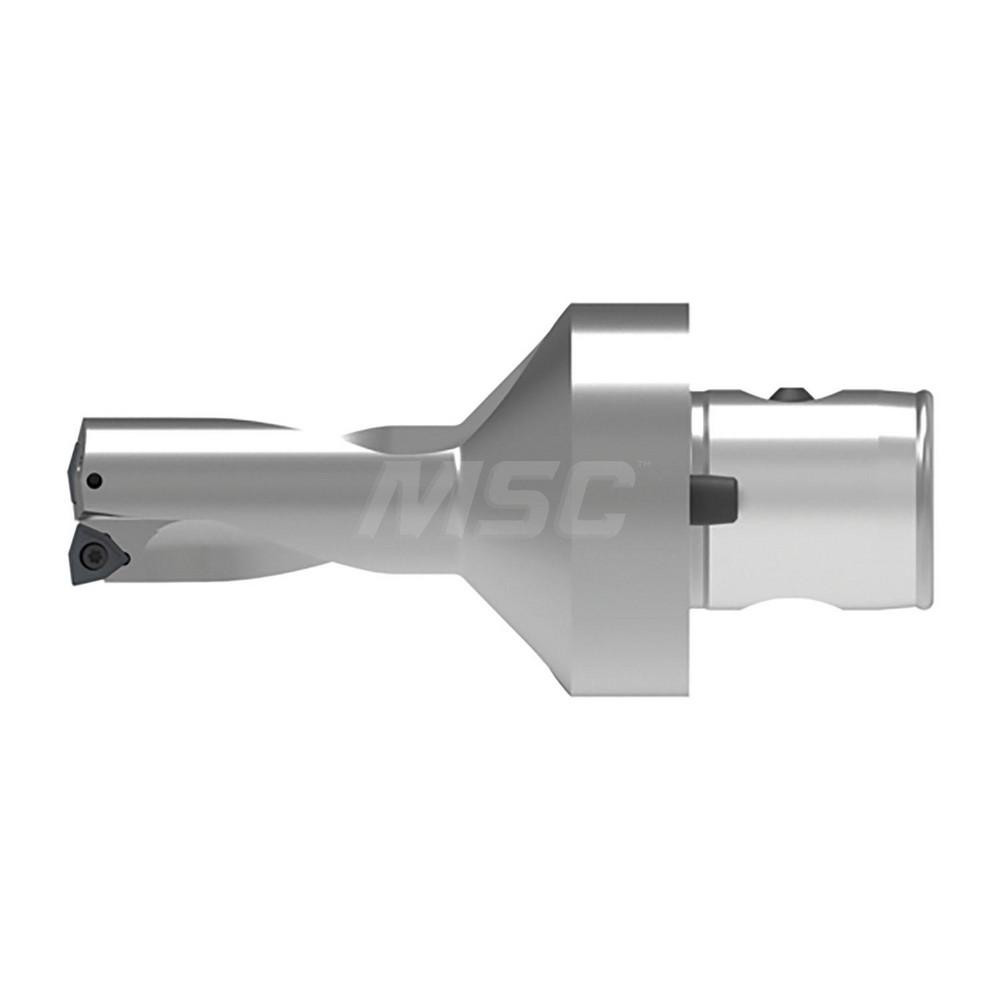

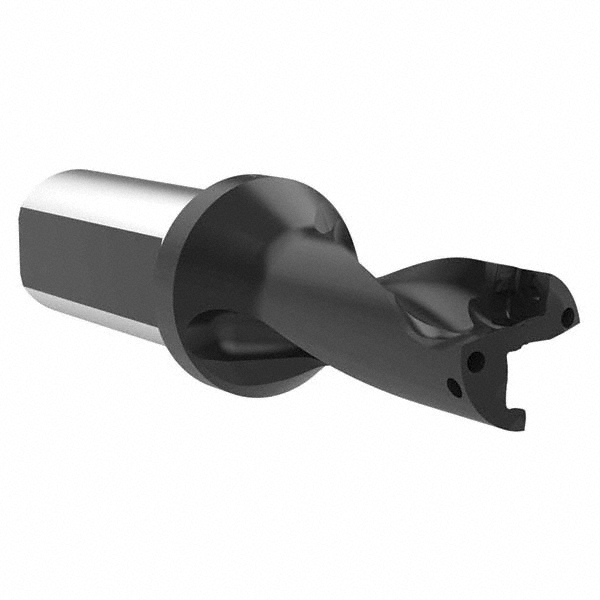

Weldon Flat & Flange Shank, Uses SOEX 060306 Inserts, Series KUB Quatron
| Compatible Drill Style | KUBQ |
|---|---|
| Maximum Drill Diameter (Inch) | 3/4 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (Decimal Inch) | 2.3620 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |

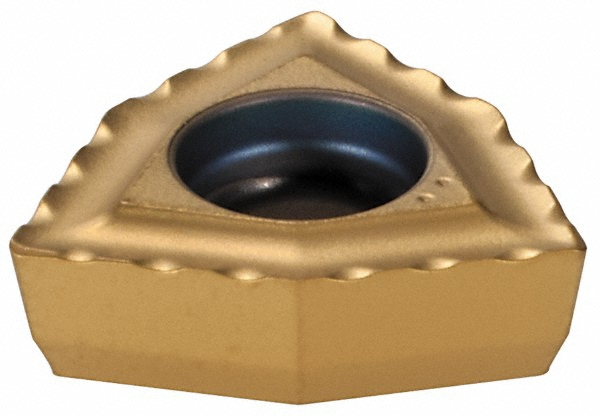

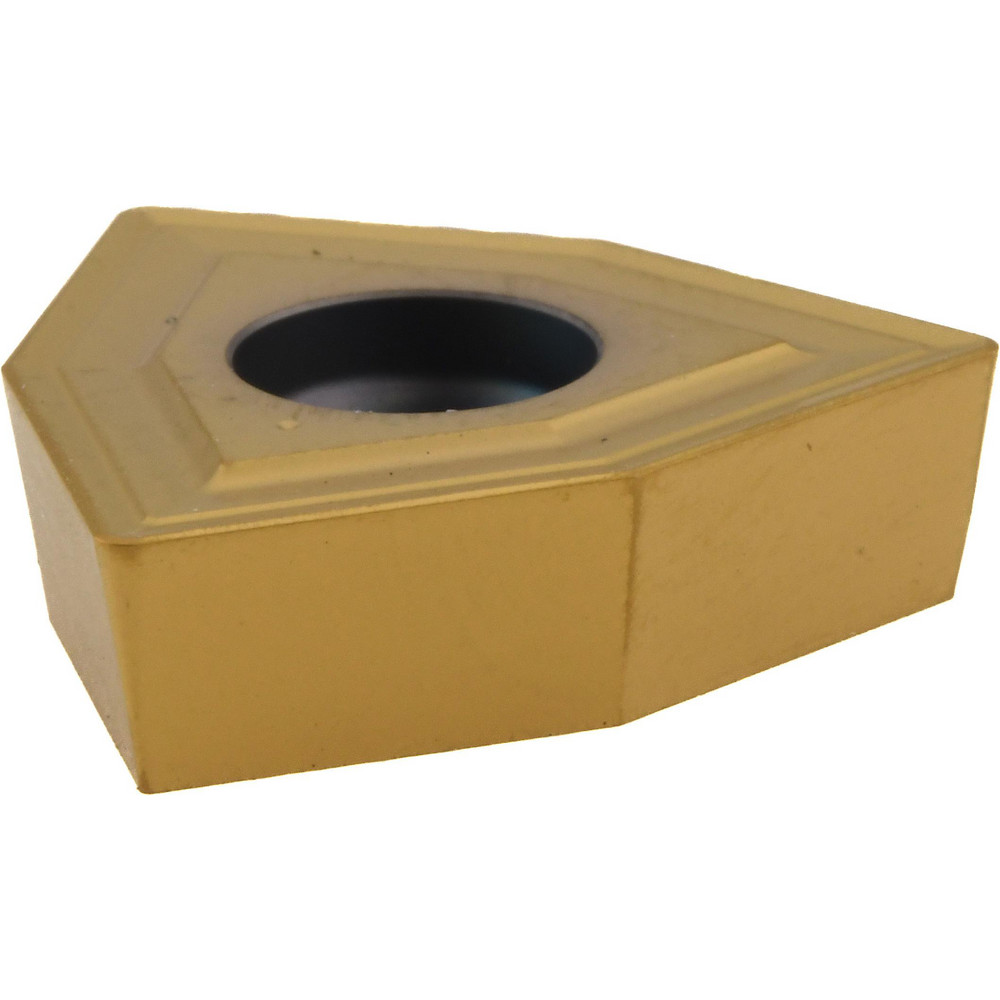

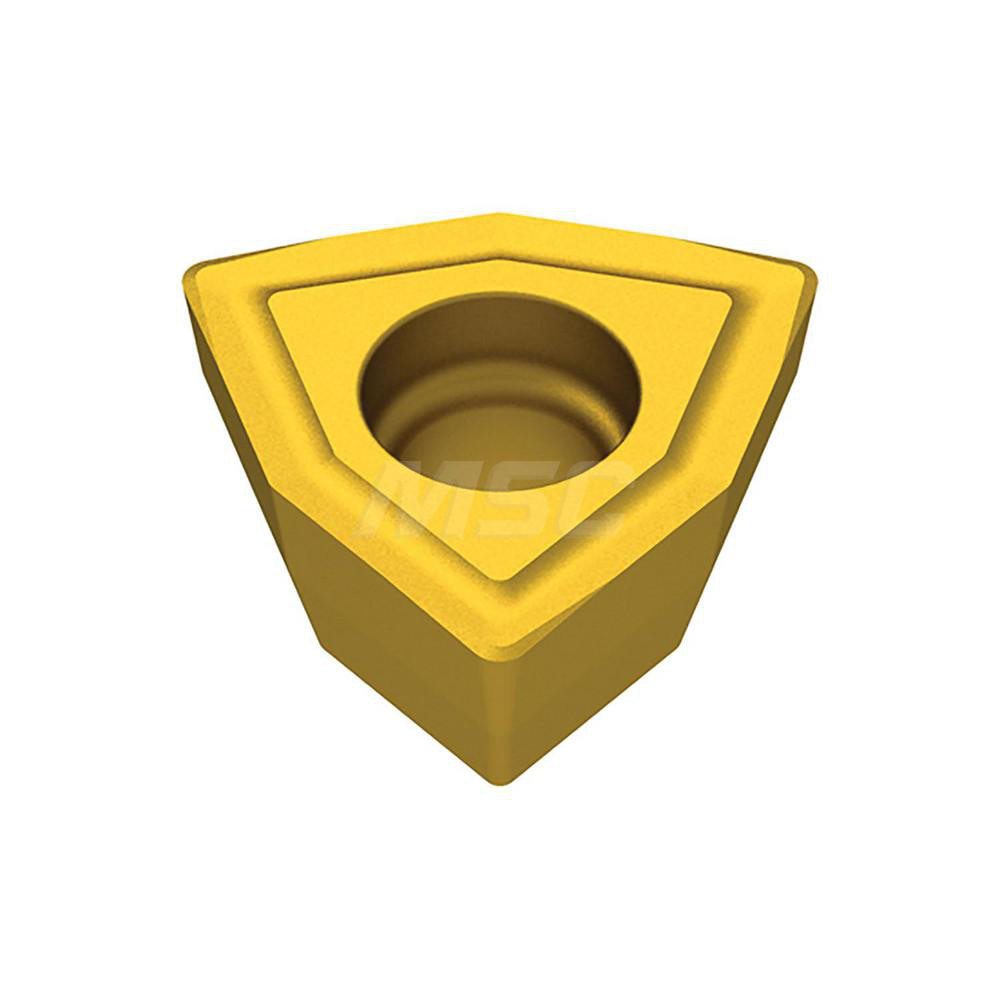

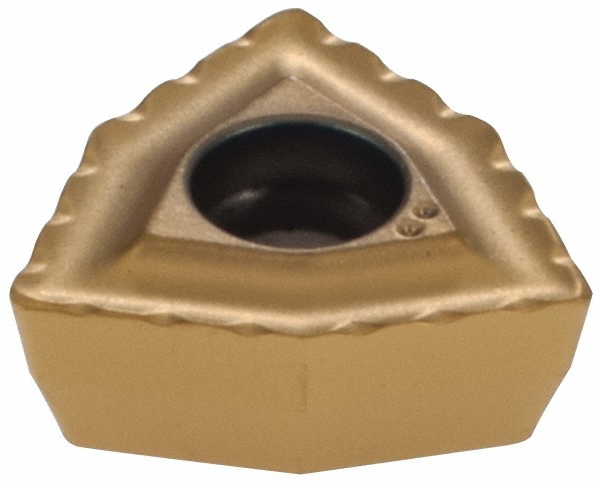

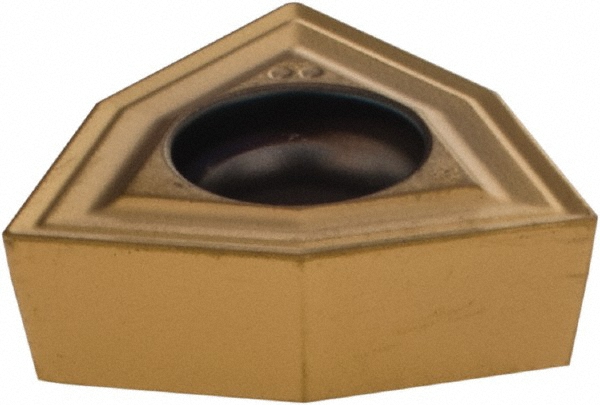

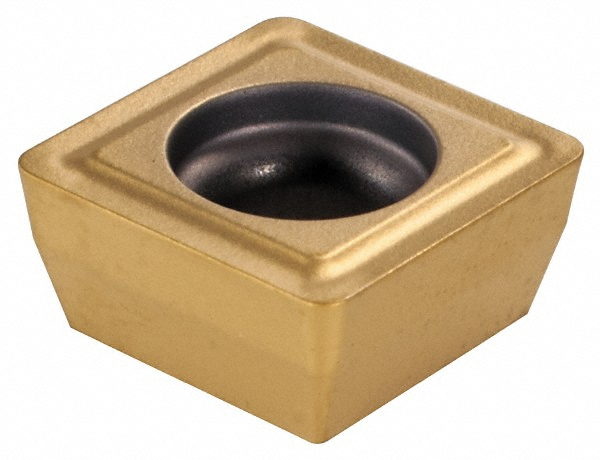

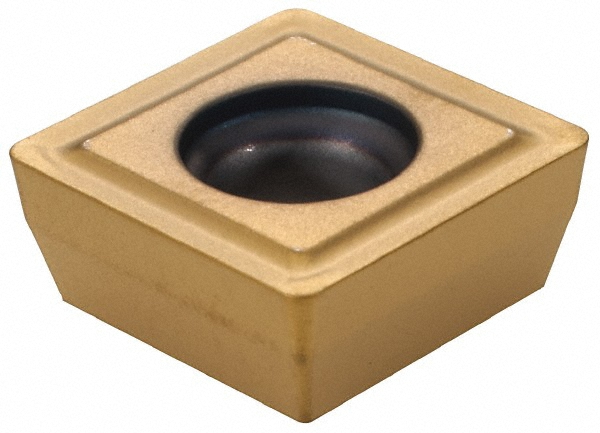

| Compatible Insert Style | SOEX |
| Compatible Insert Size Code | 060306 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

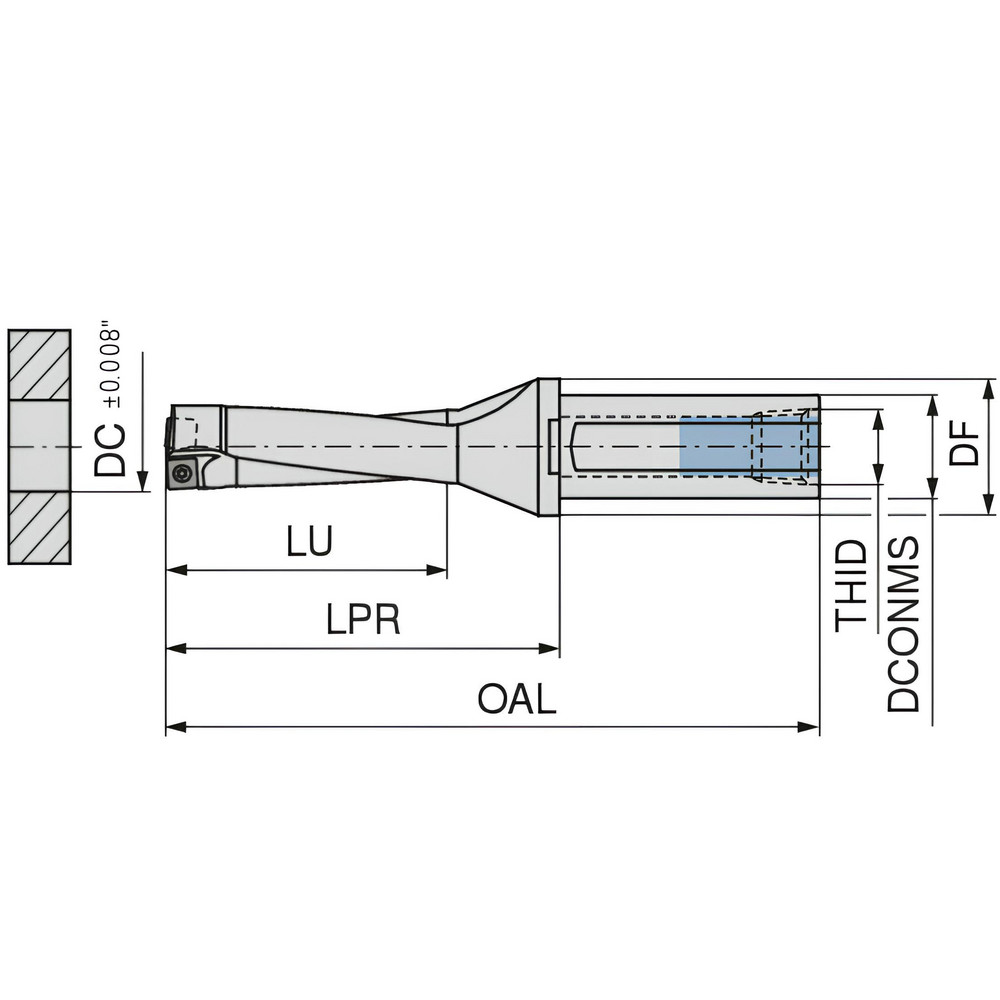

| Overall Length (Decimal Inch) | 6.5570 |
| Series | KUB Quatron |
| Flute Length (Decimal Inch) | 2.3620 |
| Body Length (Decimal Inch) | 3.3070 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOEX 060306 |
| Collar Diameter (Decimal Inch) | 1.1800 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |

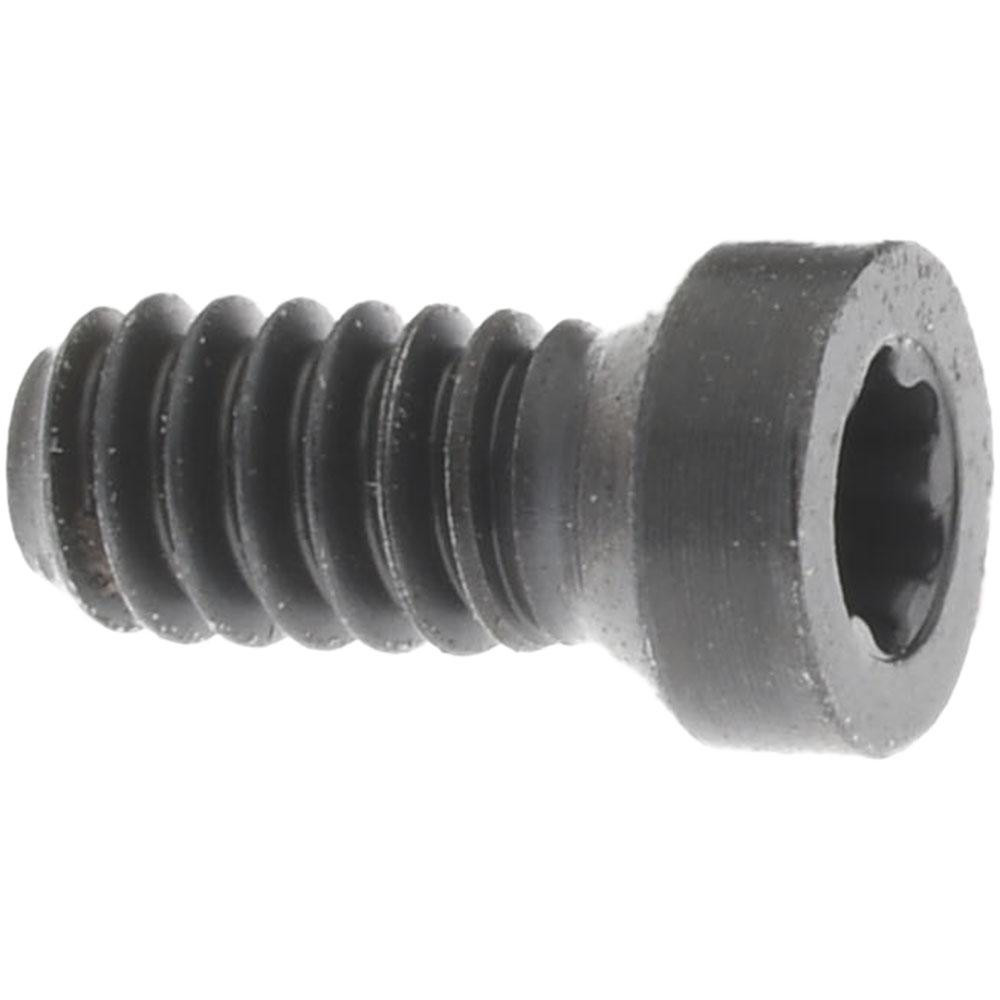

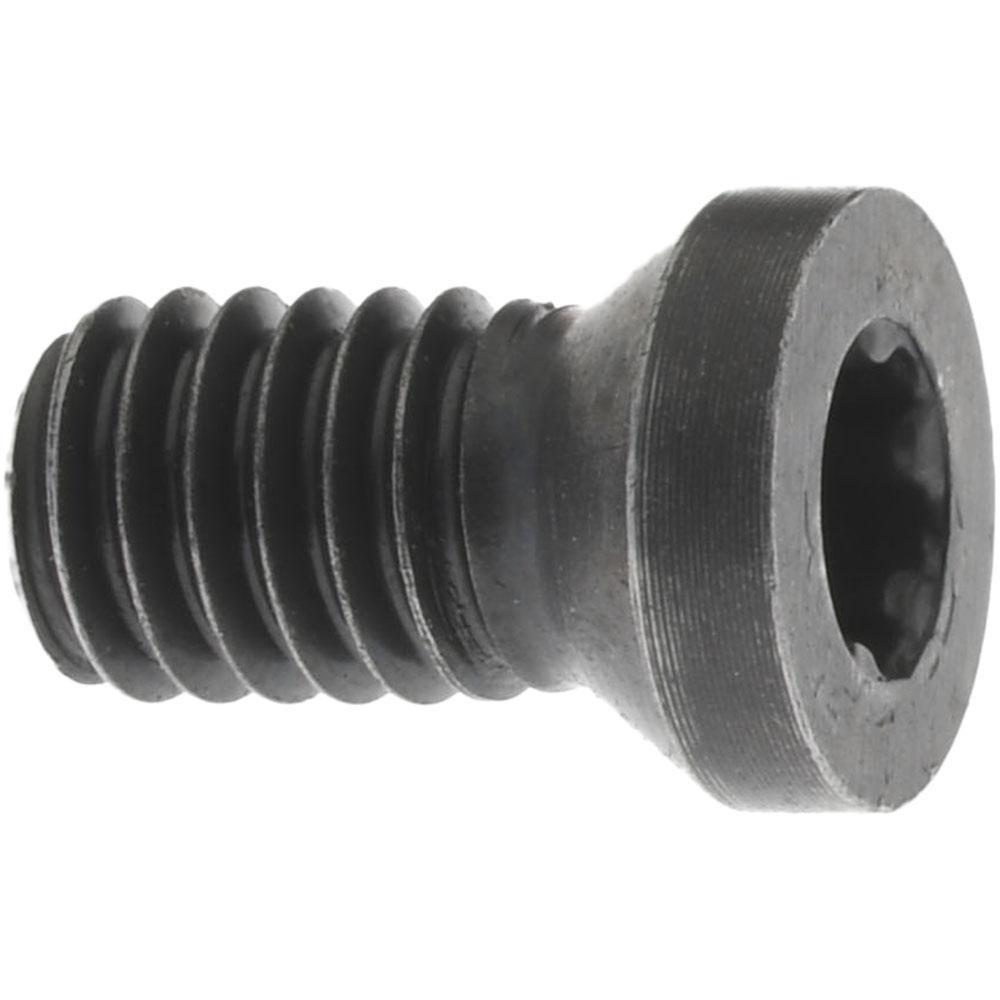

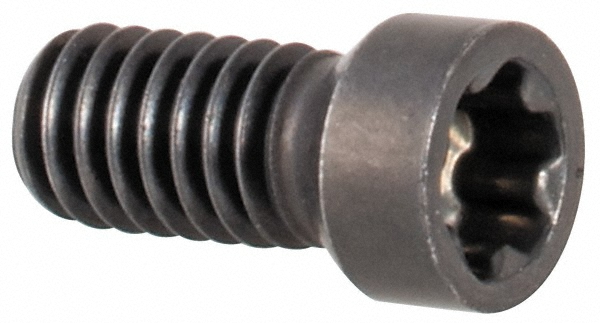

| Insert Lock Screw | N0057553 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 11635927 |
