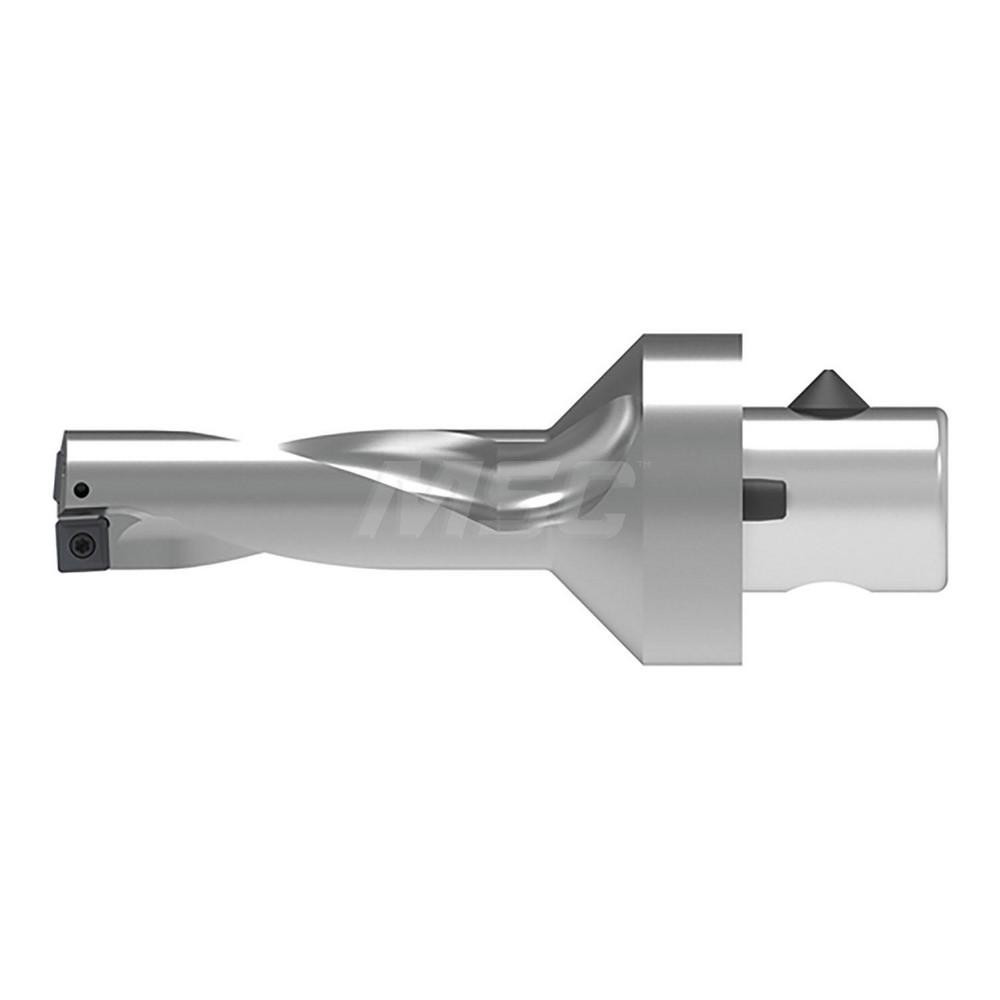

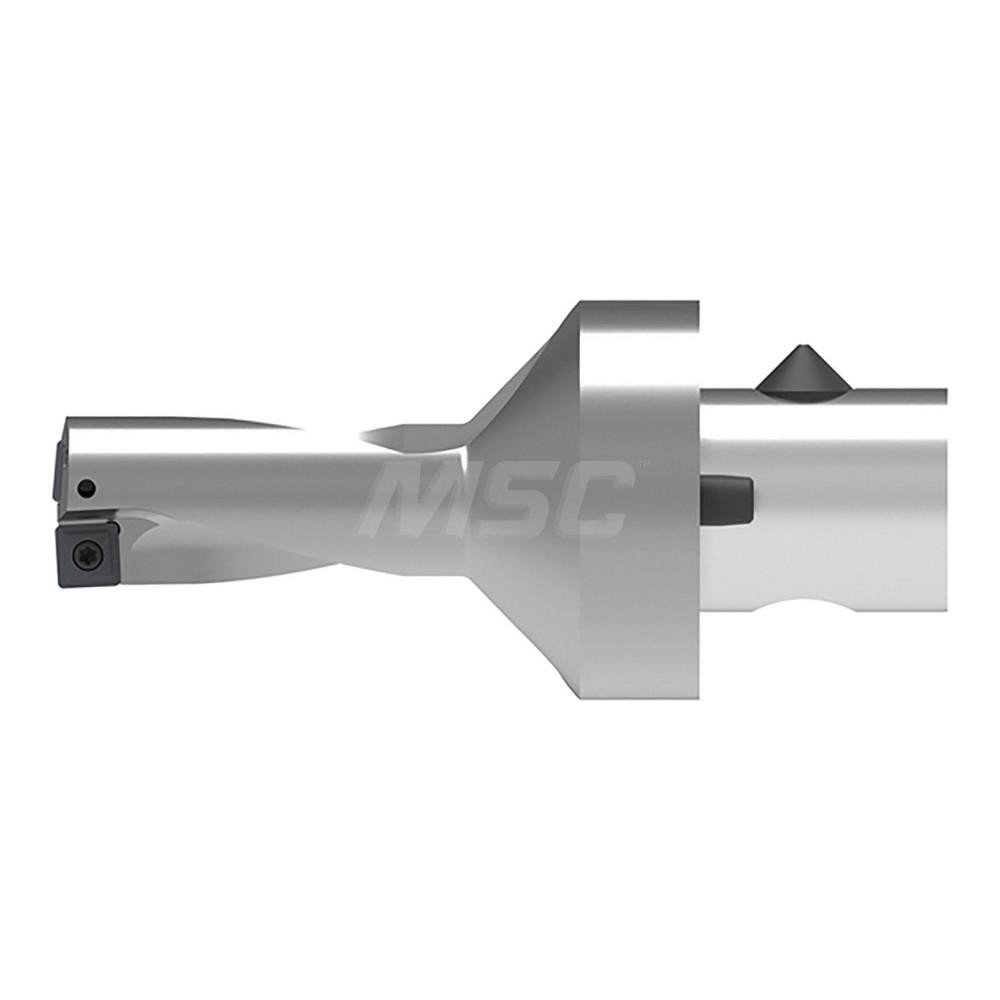

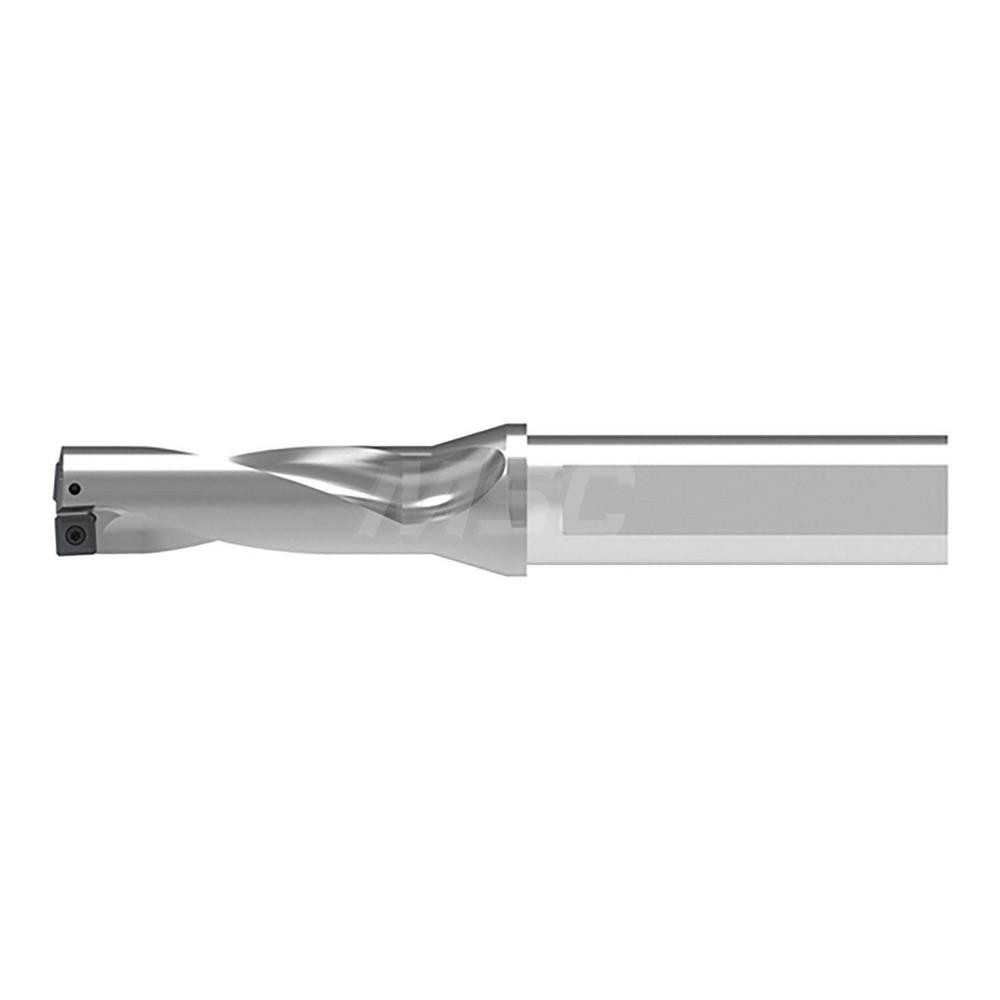

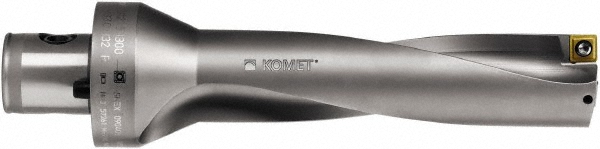

Weldon Flat & Flange Shank, Uses SOEX 090408 Inserts, Series KUB Quatron
| Compatible Drill Style | KUBQ |
|---|---|
| Maximum Drill Diameter (Inch) | 1-5/32 |
| Maximum Drill Diameter (Decimal Inch) | 1.1563 |
| Maximum Drill Depth (Decimal Inch) | 3.5430 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 28.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Compatible Insert Size Code | 090408 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

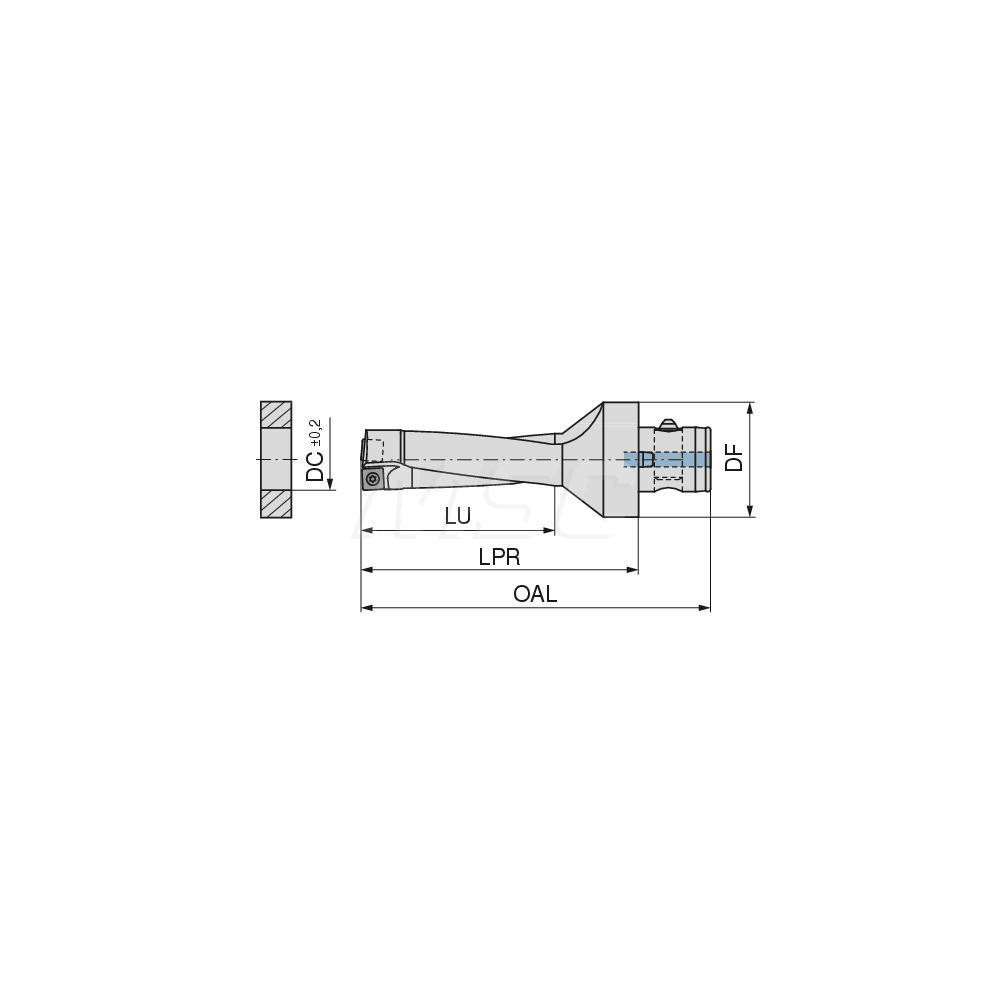

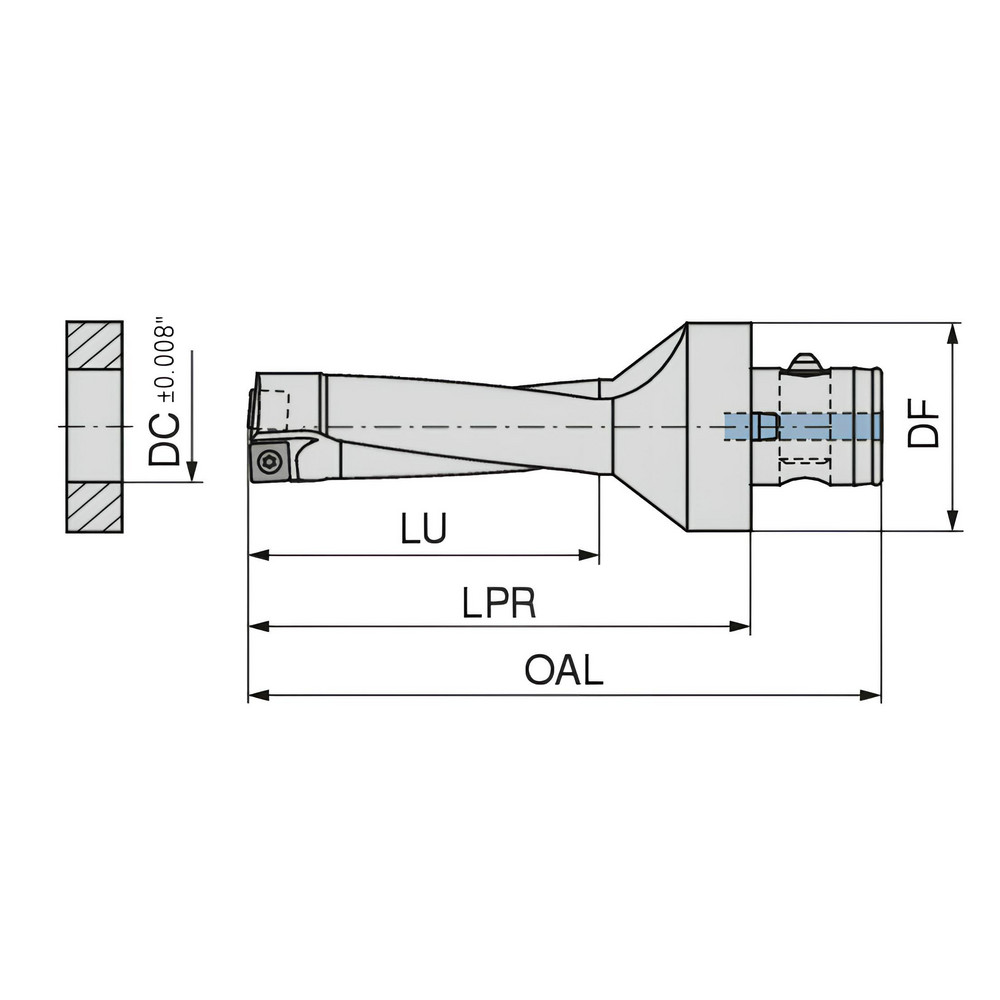

| Overall Length (Decimal Inch) | 6.1410 |
| Overall Length (Inch) | 6-9/64 |
| Series | KUB Quatron |
| Flute Length (Decimal Inch) | 3.5430 |
| Body Length (Decimal Inch) | 4.9210 |
| Shank Length (Decimal Inch) | 1.2200 |
| Modular Connection Size | ABS50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3748 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOEX 090408 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Insert Lock Screw | N0057261 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 11638798 |
