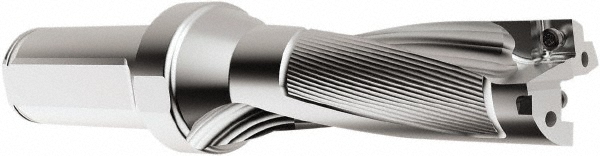

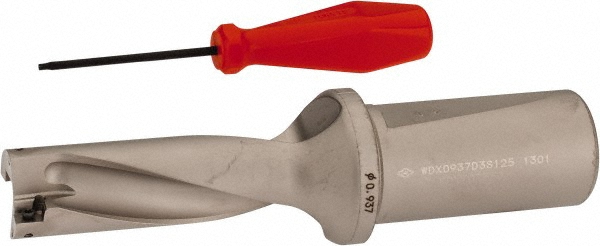

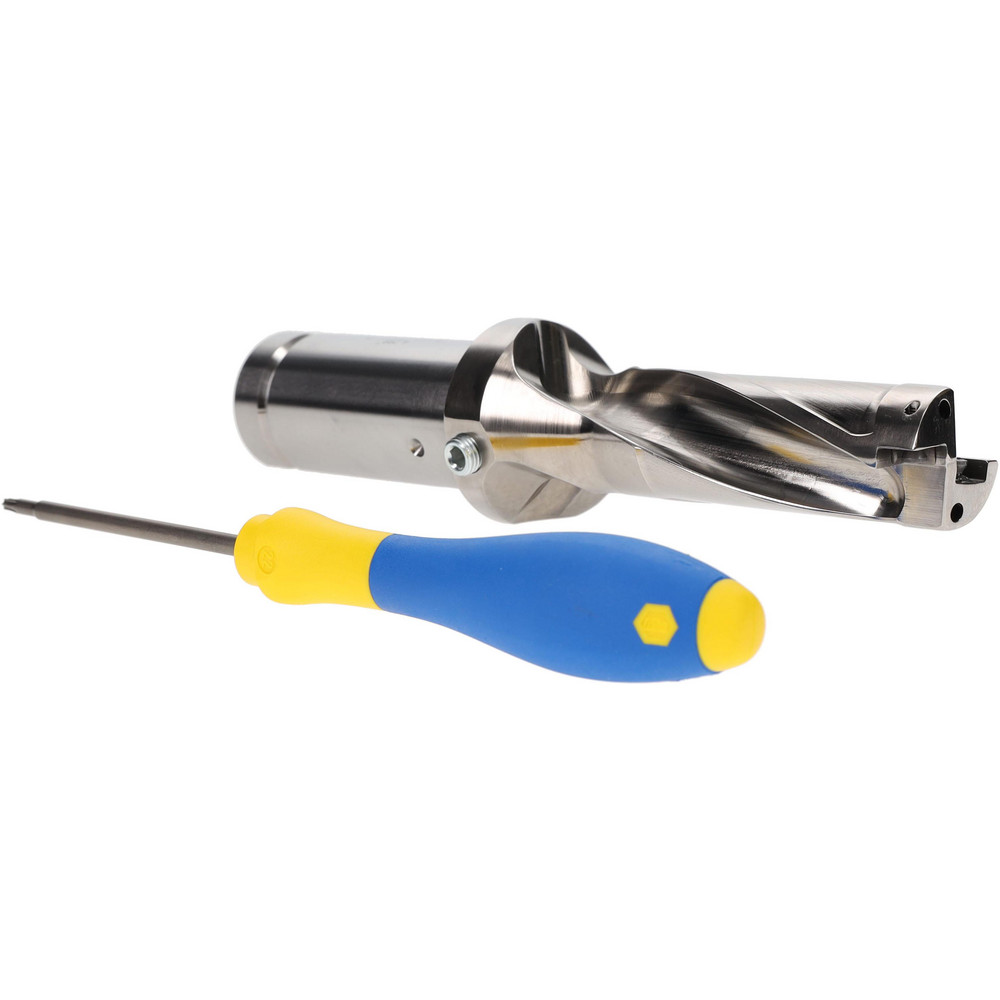

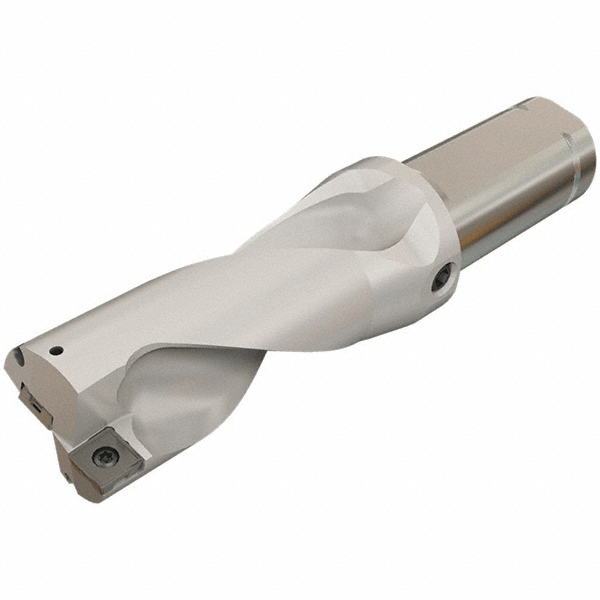

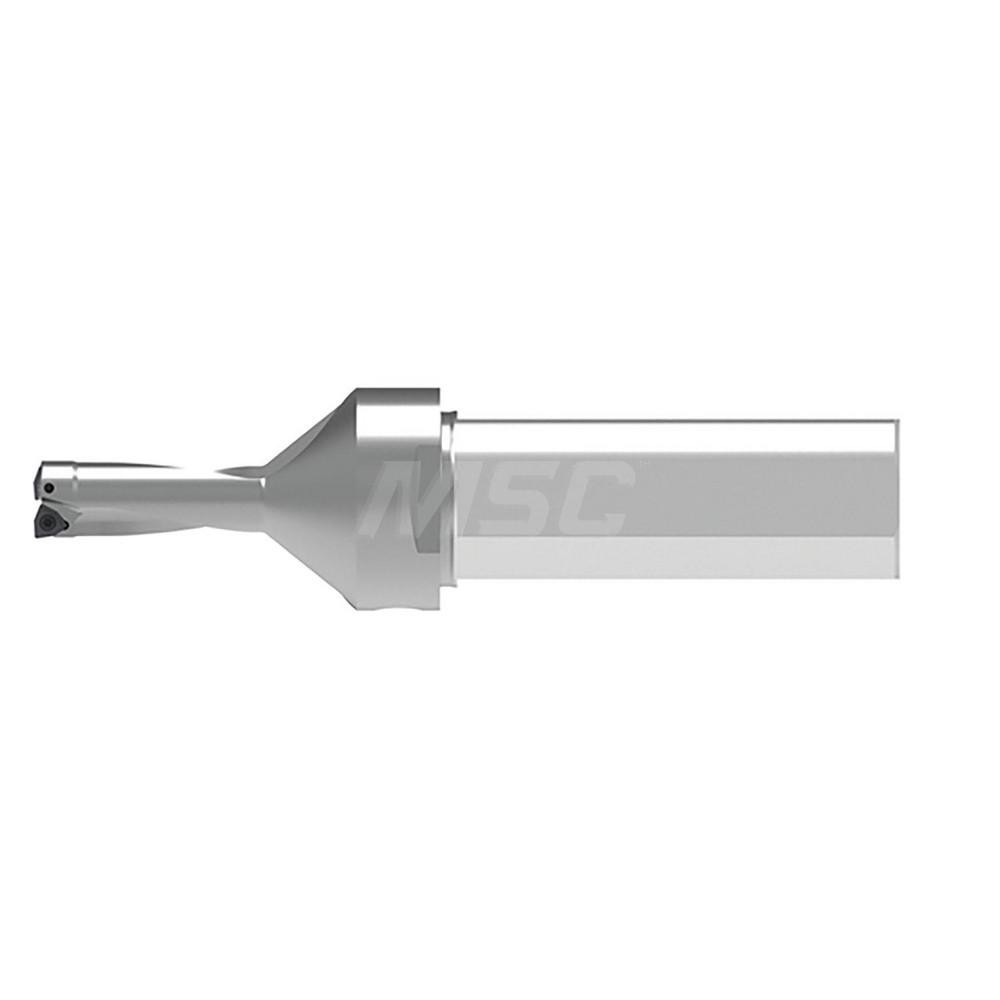

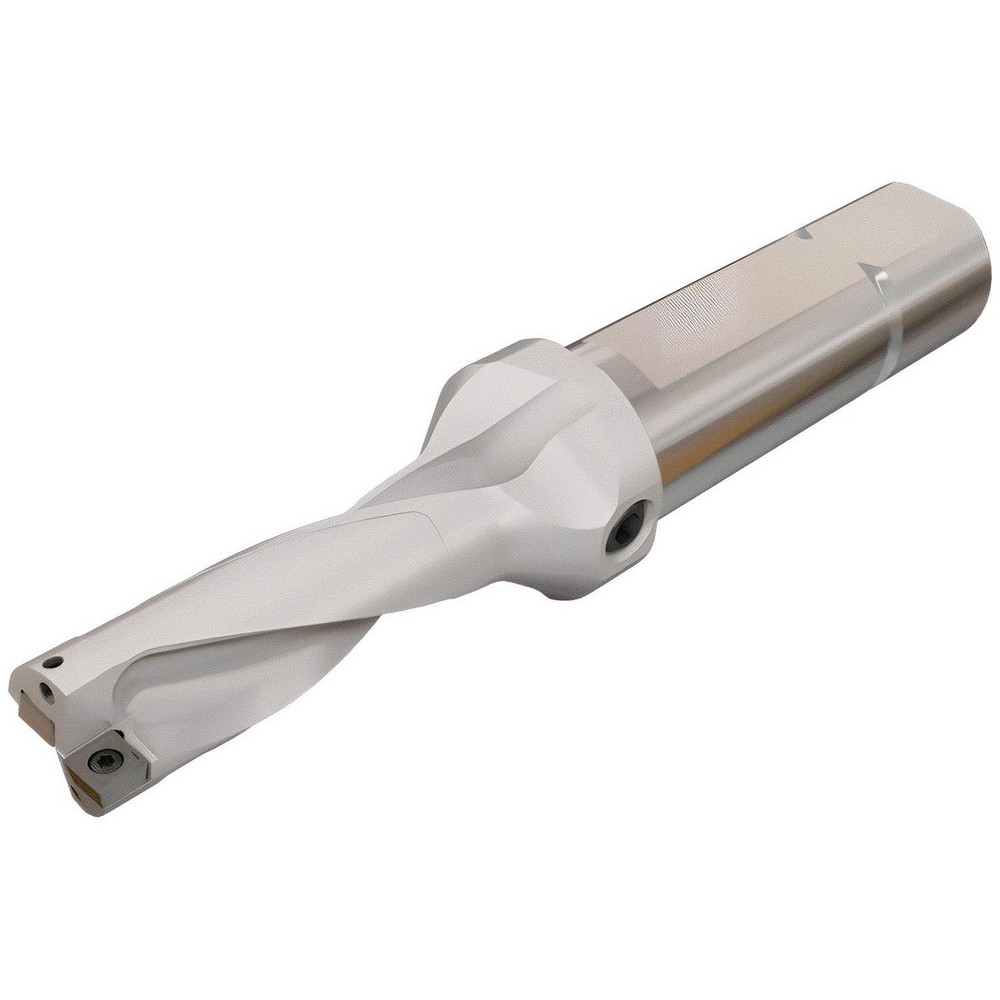

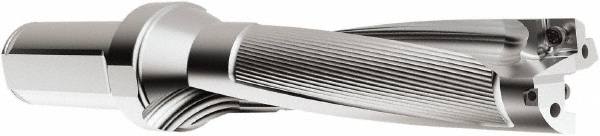

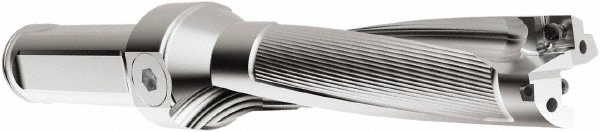

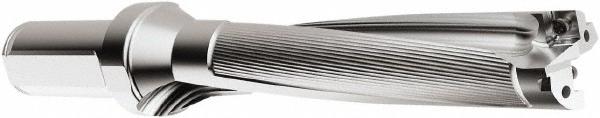

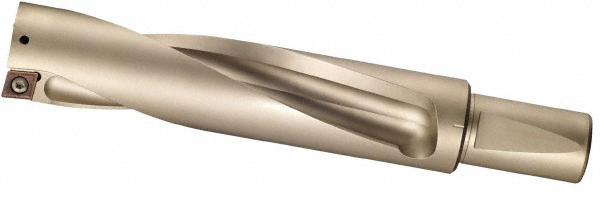

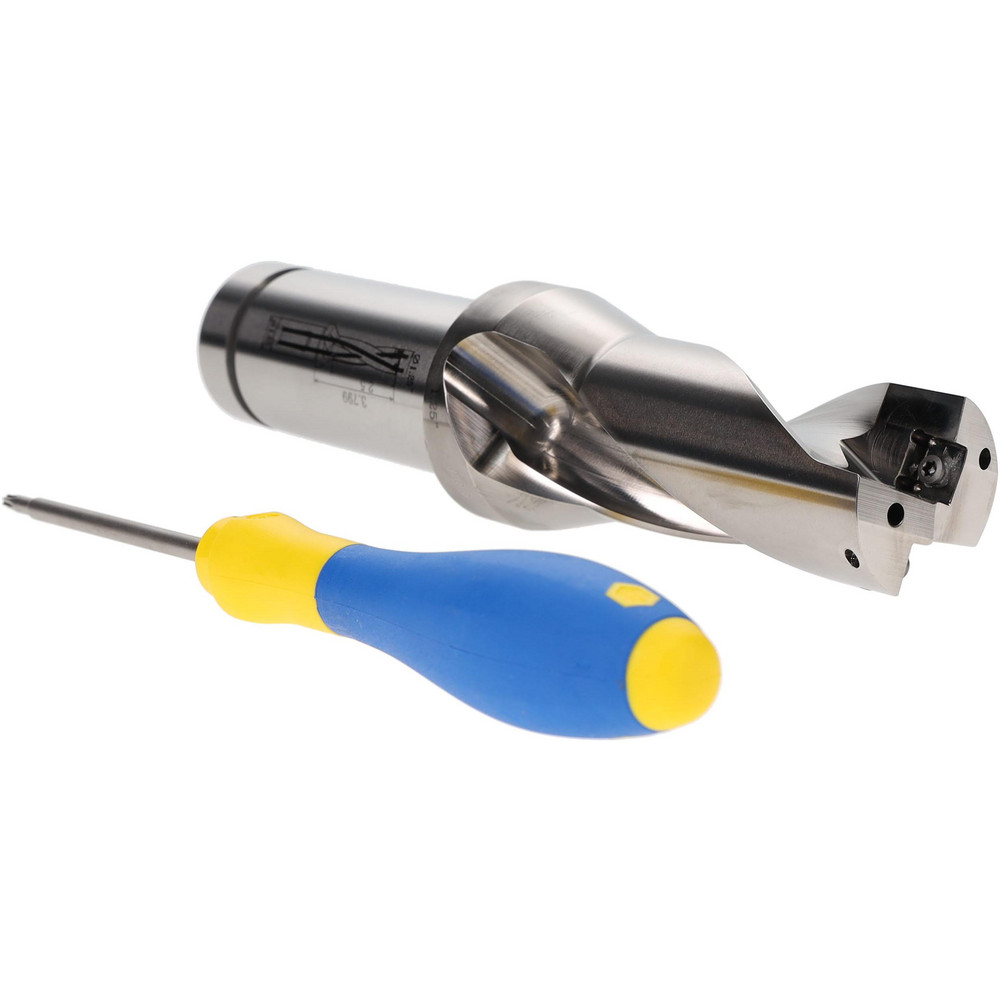

Weldon Flat & Flange Shank, Uses WOEX 05T304 Inserts, Series KUB Trigon

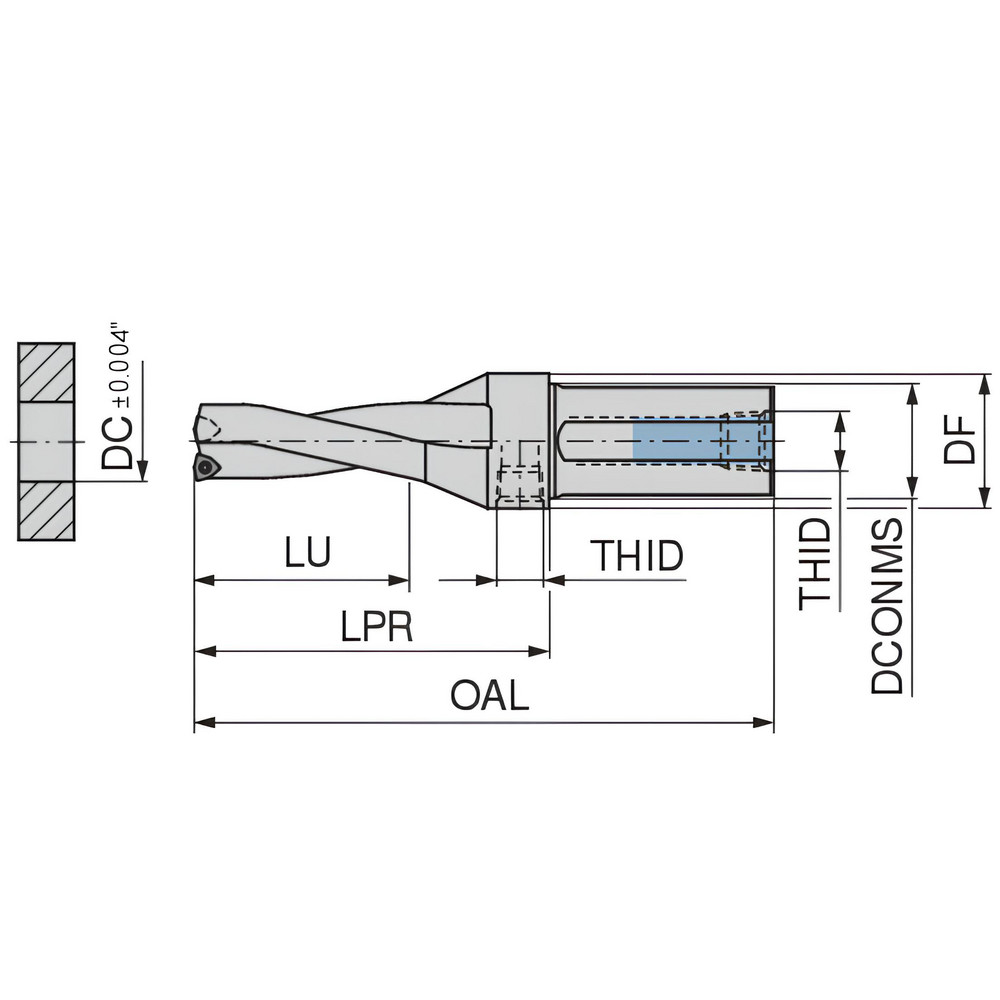

| Compatible Drill Style | KUBT |
|---|---|
| Maximum Drill Diameter (Inch) | 1-13/32 |
| Maximum Drill Diameter (Decimal Inch) | 1.4063 |
| Maximum Drill Depth (Inch) | 3-1/4 |
| Maximum Drill Depth (Decimal Inch) | 3.2500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Compatible Insert Size Code | 05T304 |
| Drill Depth by Diameter Ratio | 2.5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 8.2500 |
| Overall Length (Inch) | 8-1/4 |
| Series | KUB Trigon |
| Flute Length (Decimal Inch) | 3.2500 |
| Body Length (Decimal Inch) | 5.0000 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling; Cross Hole; Inclined Hole Exit |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3150 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WOEX 05T304 |
| Collar Diameter (Decimal Inch) | 1.5752 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8 |
| Insert Lock Screw | N0057511 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 11634383 |
