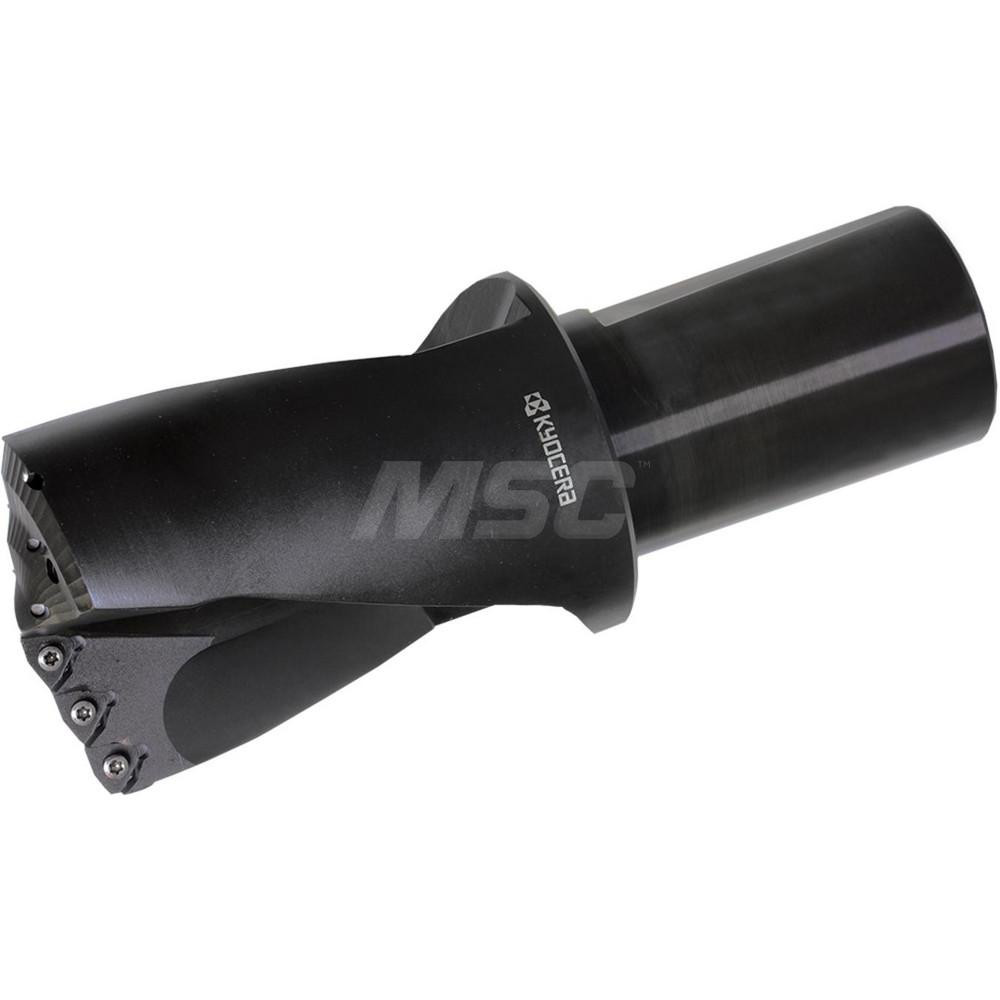

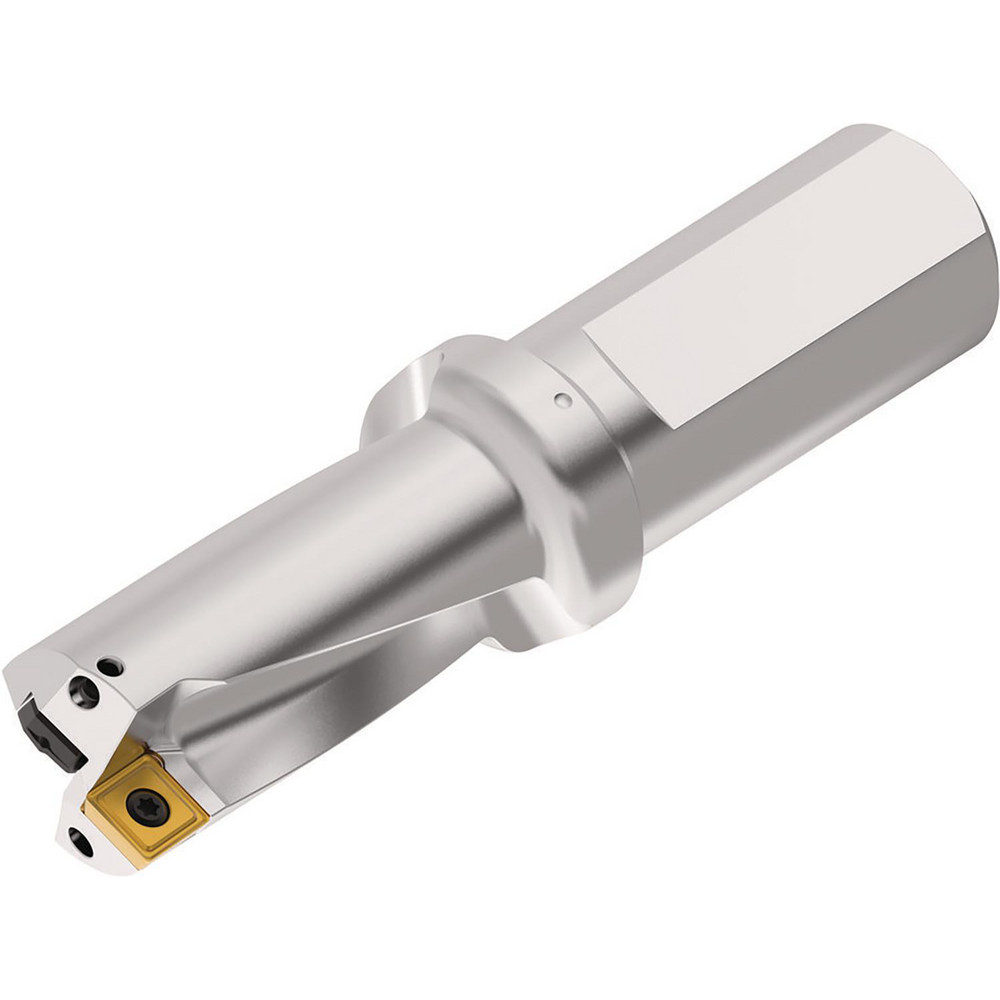

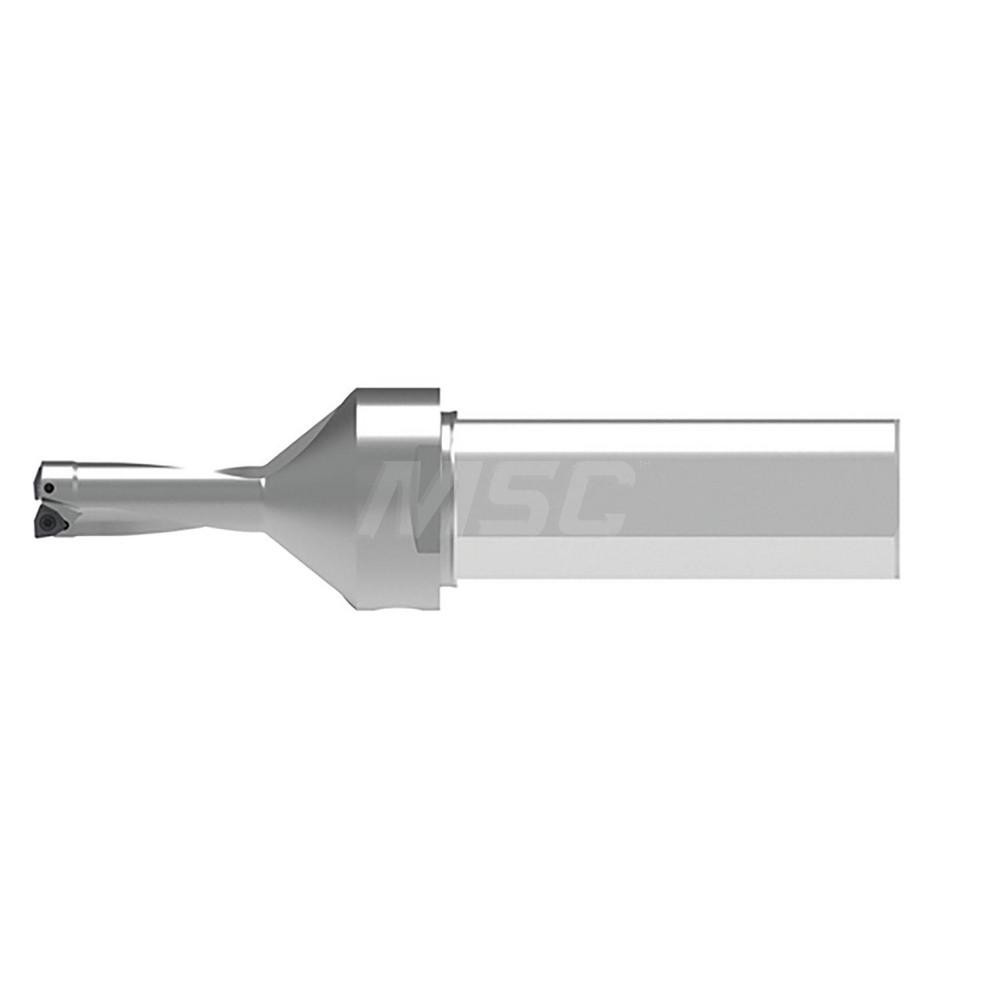

Weldon Flat & Flange Shank, Uses WOEX 06T304 Inserts, Series KUB Trigon
| Compatible Drill Style | KUBT |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/4 |
| Maximum Drill Diameter (Decimal Inch) | 1.7500 |
| Maximum Drill Depth (Inch) | 4 |
| Maximum Drill Depth (Decimal Inch) | 4.0000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Compatible Insert Size Code | 06T304 |
| Drill Depth by Diameter Ratio | 2.5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 10.7090 |
| Series | KUB Trigon |
| Flute Length (Decimal Inch) | 4.0000 |
| Body Length (Decimal Inch) | 5.7090 |
| Shank Length (Decimal Inch) | 5.0000 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling; Cross Hole; Inclined Hole Exit |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3937 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WOEX 06T304 |
| Collar Diameter (Decimal Inch) | 1.9701 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | N0057521 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 11629219 |
