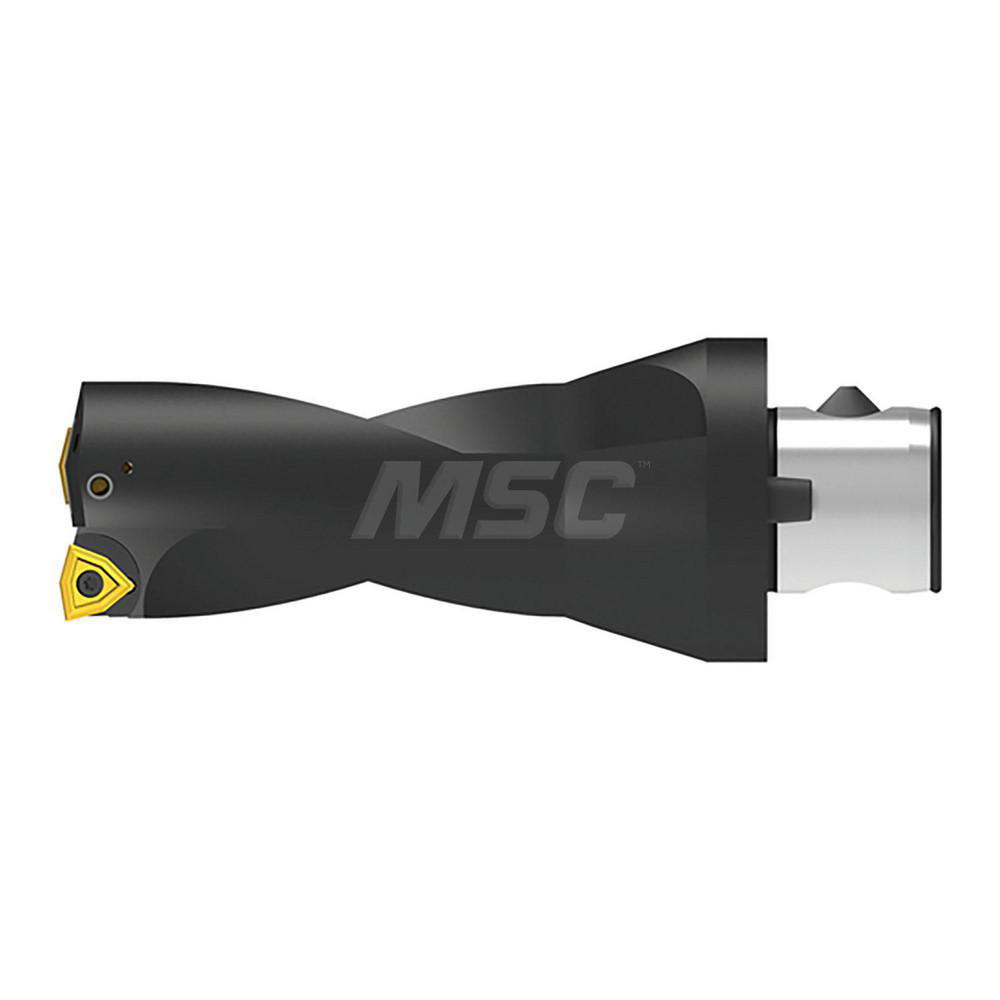

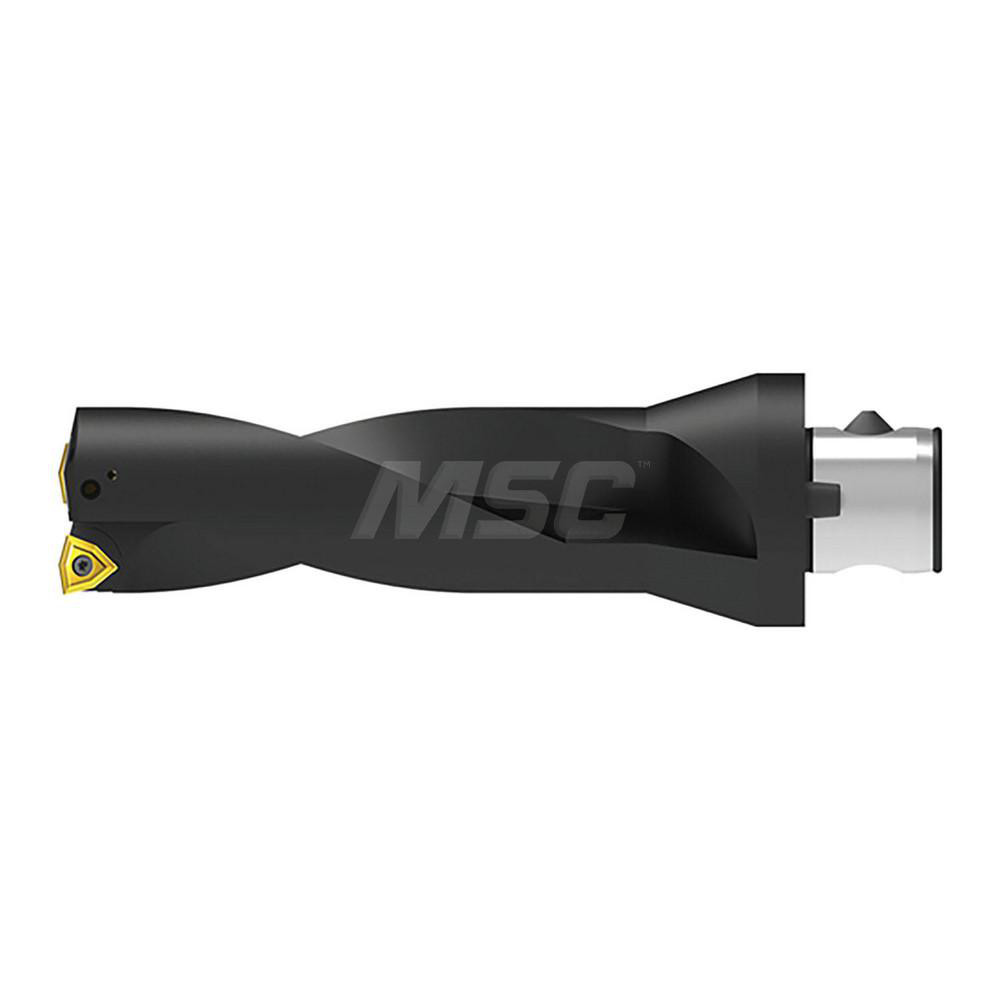

Weldon Flat & Flange Shank, Uses WOEX 100504 Inserts, Series KUB Trigon
| Compatible Drill Style | KUBT |
|---|---|
| Maximum Drill Diameter (Inch) | 2-21/32 |
| Maximum Drill Diameter (Decimal Inch) | 2.6563 |
| Maximum Drill Depth (Decimal Inch) | 5.3120 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 46.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Compatible Insert Size Code | 100504 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

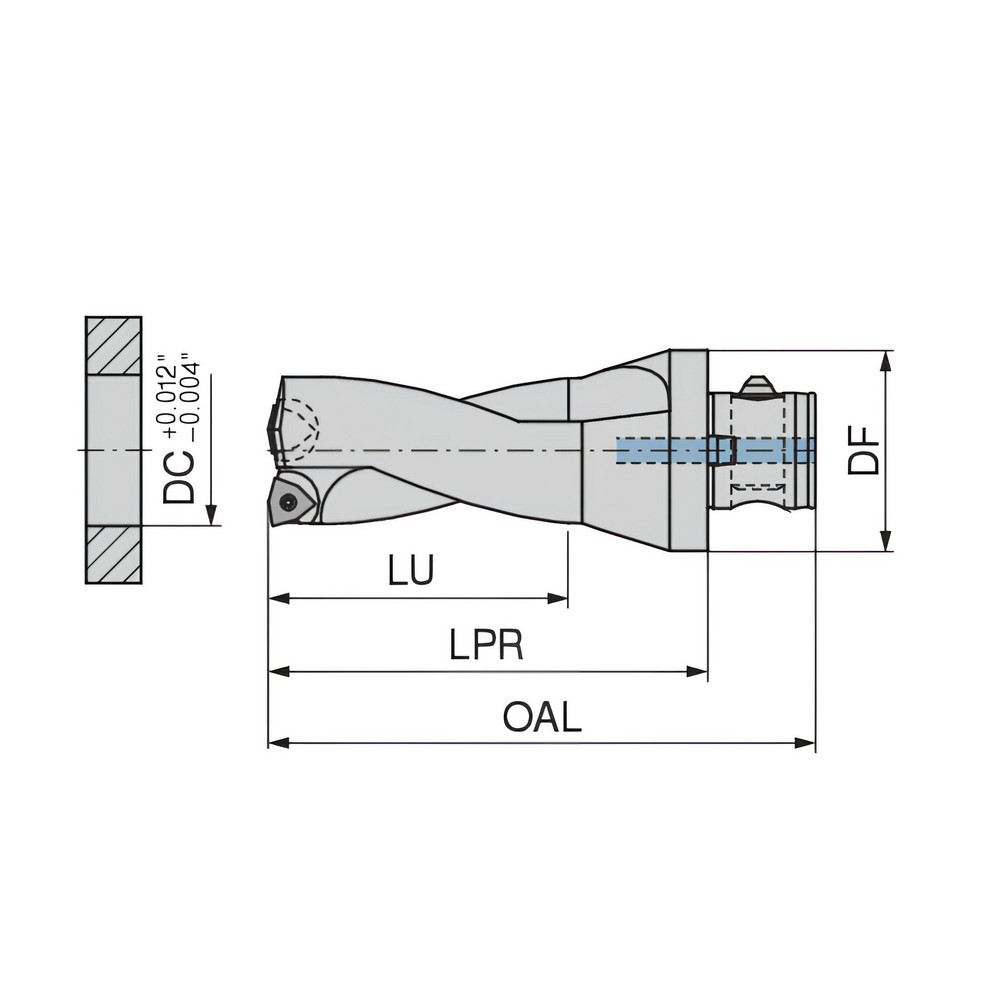

| Overall Length (Decimal Inch) | 9.1710 |
| Series | KUB Trigon |
| Flute Length (Decimal Inch) | 5.3120 |
| Body Length (Decimal Inch) | 7.4780 |
| Shank Length (Decimal Inch) | 1.6930 |
| Modular Connection Size | ABS80 |
| Tool Application | Drilling; Cross Hole; Inclined Hole Exit |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5906 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WOEX 100504 |
| Collar Diameter (Decimal Inch) | 3.1496 |
| Insert Lock Screw | N0057531 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 11629185 |
