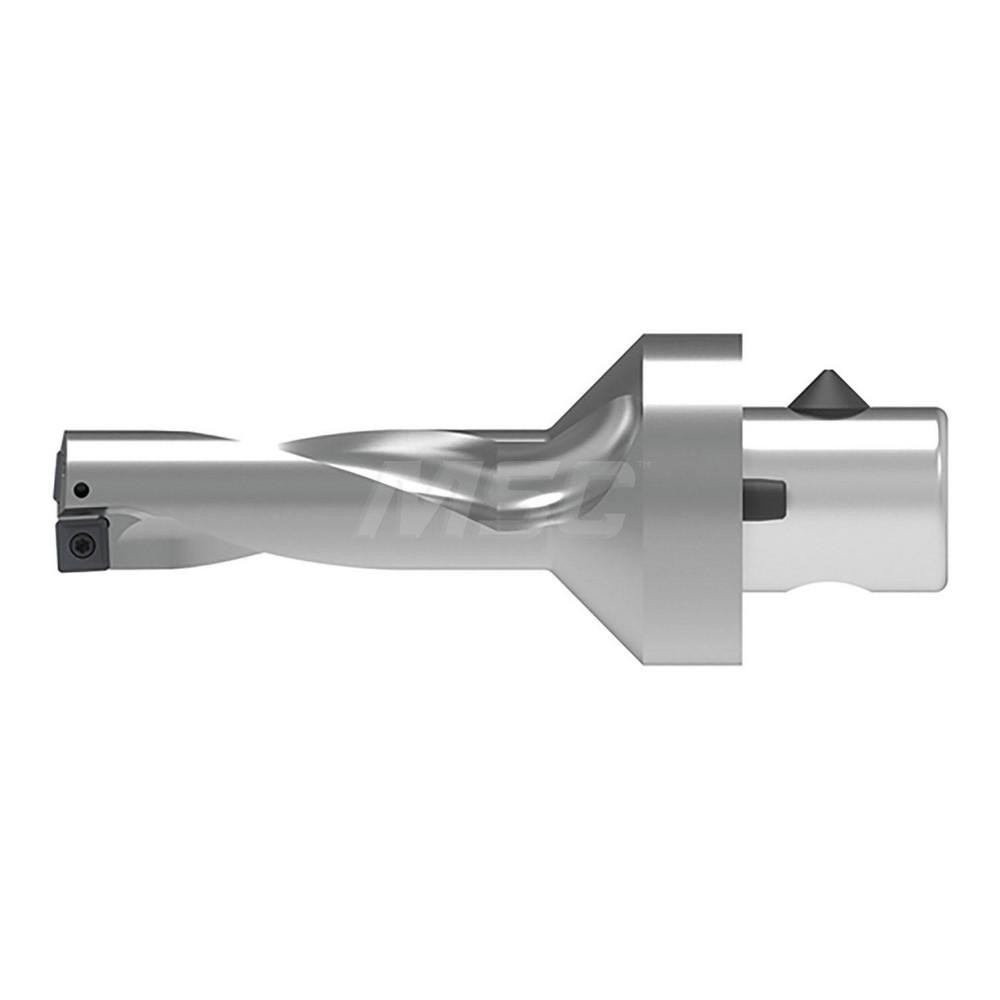

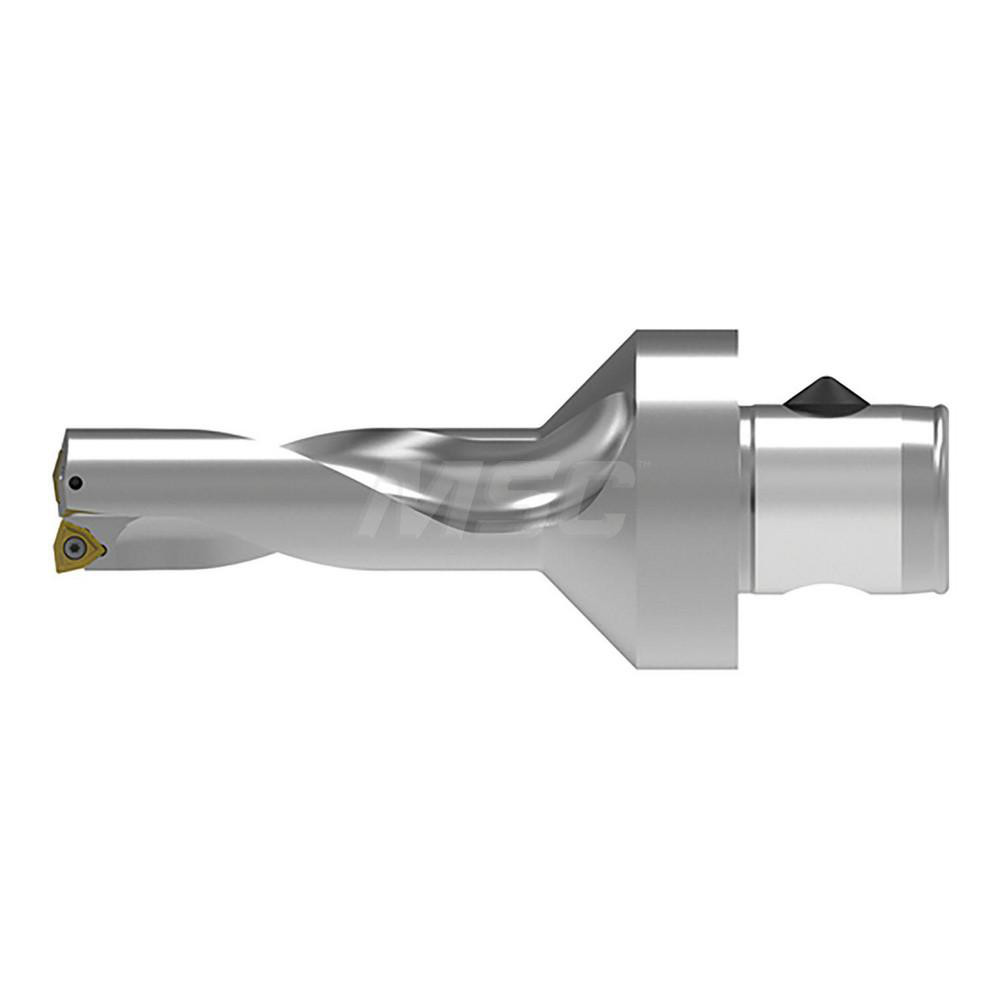

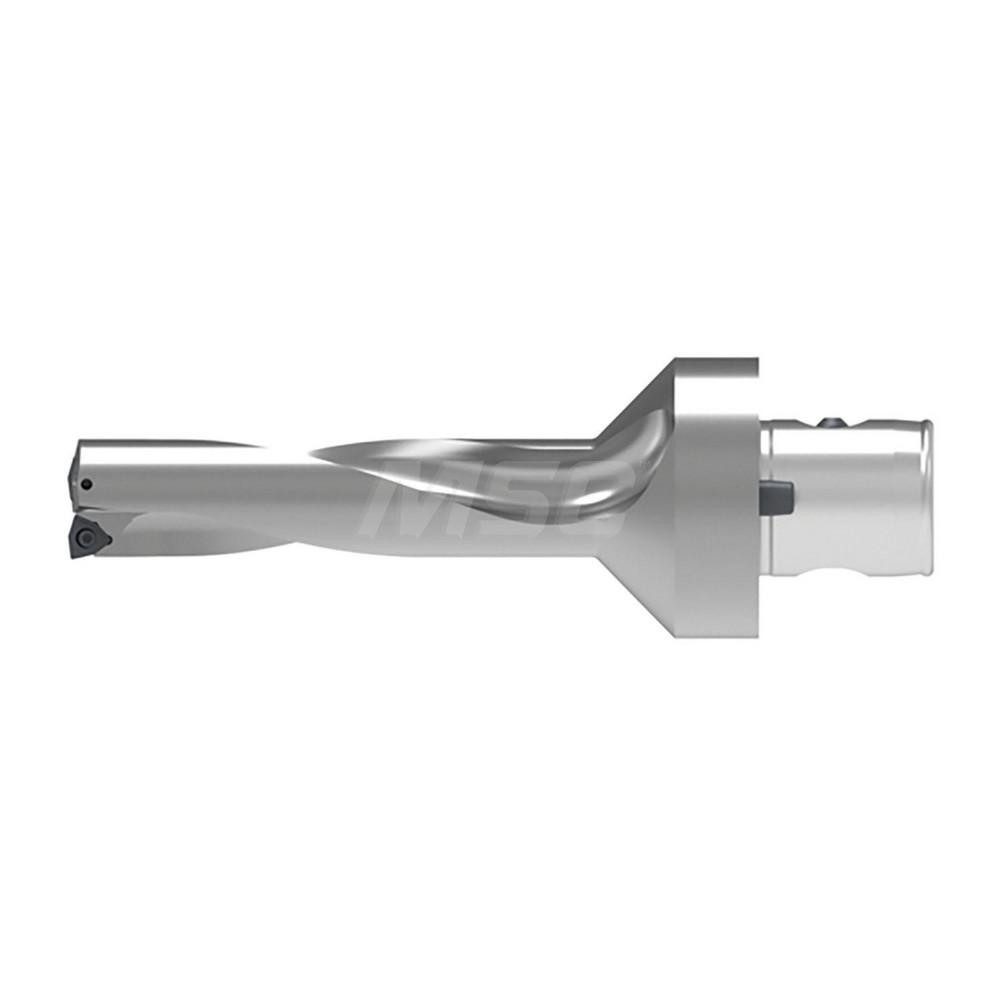

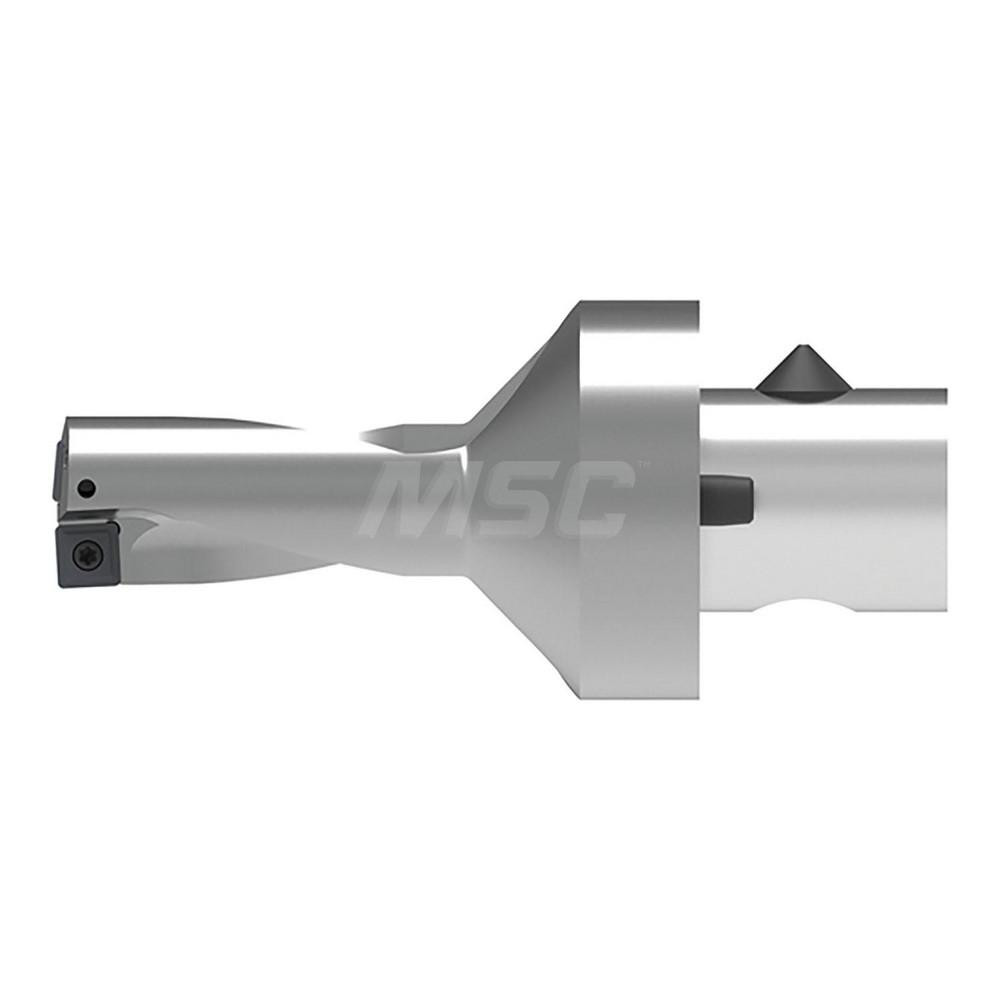

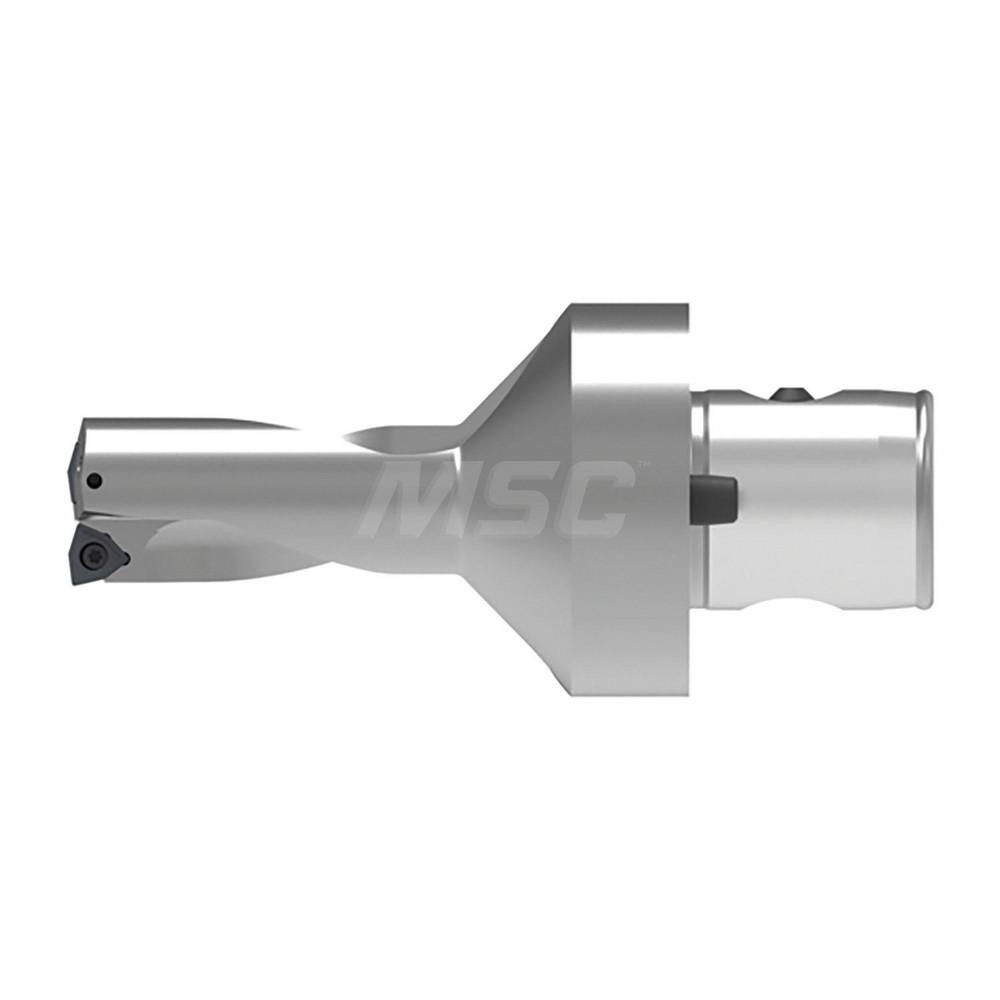

Weldon Flat & Flange Shank, Uses WOEX 05T304 Inserts, Series KUB Trigon
| Compatible Drill Style | KUBT |
|---|---|
| Maximum Drill Diameter (Inch) | 1-21/64 |
| Maximum Drill Diameter (Decimal Inch) | 1.3281 |
| Maximum Drill Depth (Inch) | 5-23/64 |
| Maximum Drill Depth (Decimal Inch) | 5.3590 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 28.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Compatible Insert Size Code | 05T304 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

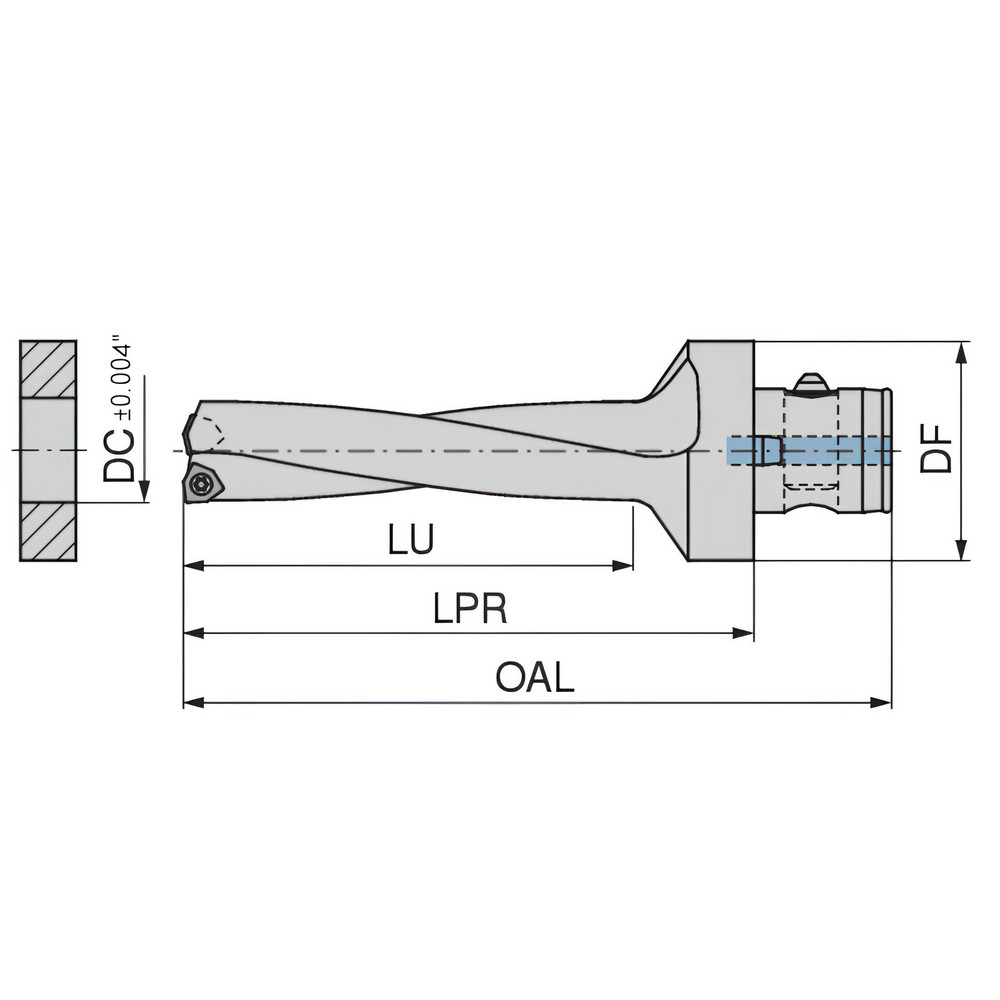

| Overall Length (Decimal Inch) | 8.1700 |
| Series | KUB Trigon |
| Flute Length (Decimal Inch) | 5.3590 |
| Body Length (Decimal Inch) | 6.9500 |
| Shank Length (Decimal Inch) | 1.2200 |
| Modular Connection Size | ABS50 |
| Tool Application | Drilling; Cross Hole; Inclined Hole Exit |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3150 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WOEX 05T304 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Insert Lock Screw | N0057511 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 11629169 |
