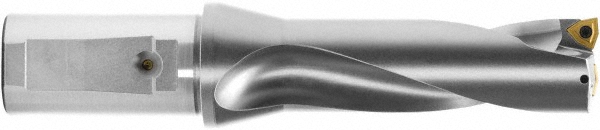

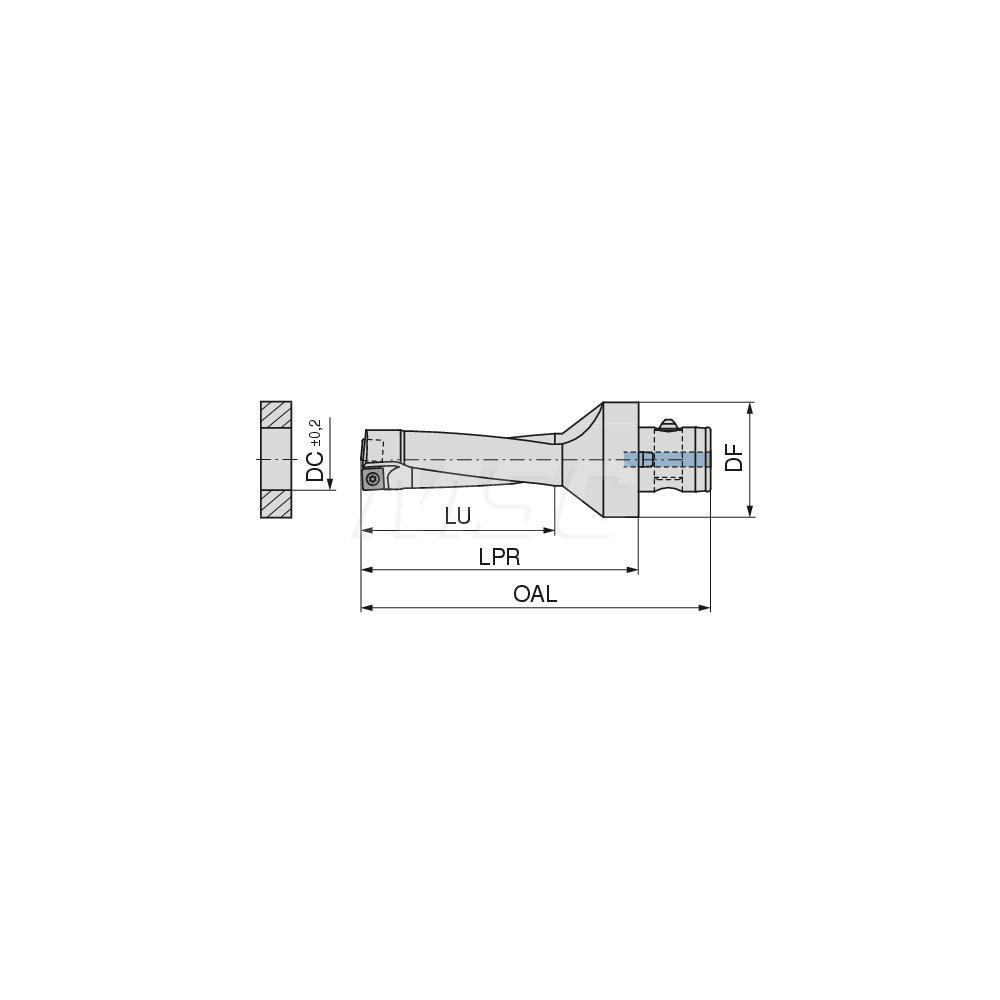

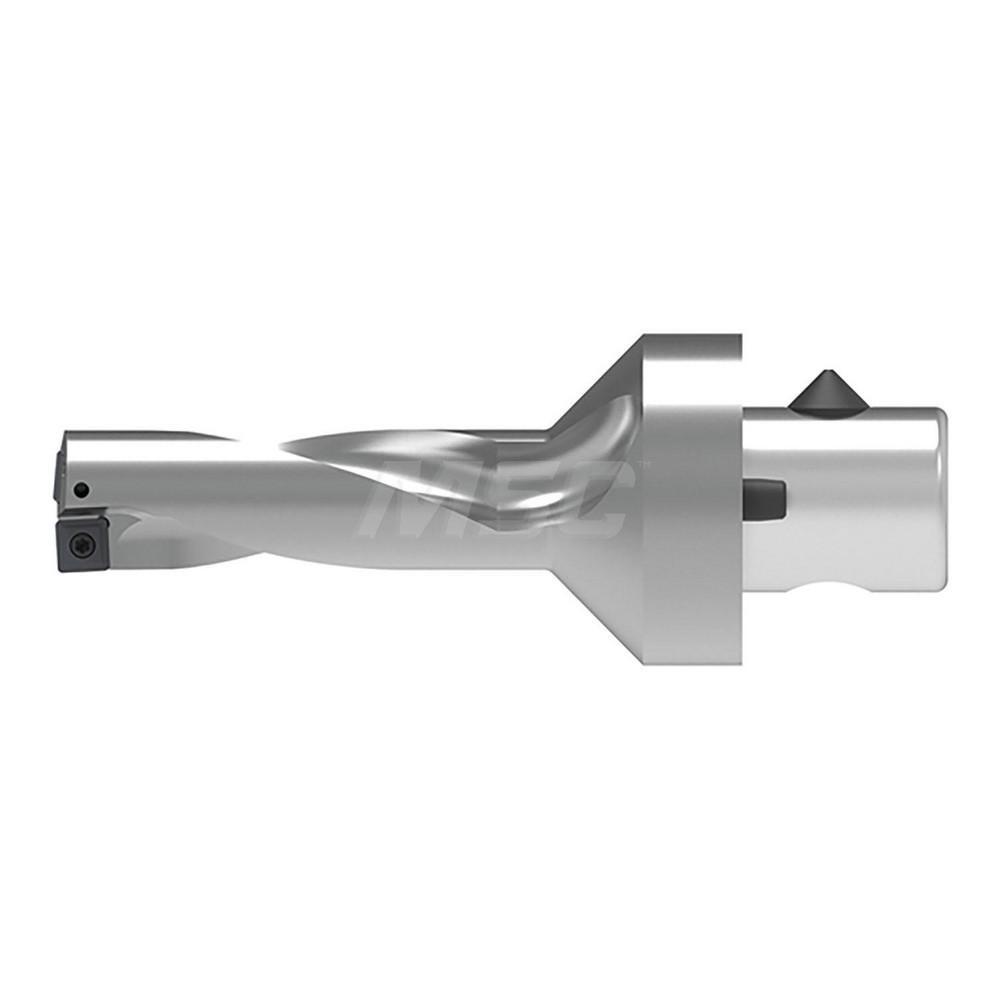

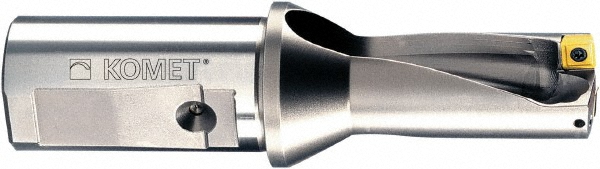

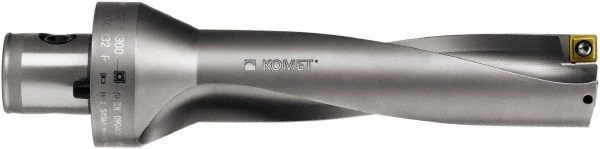

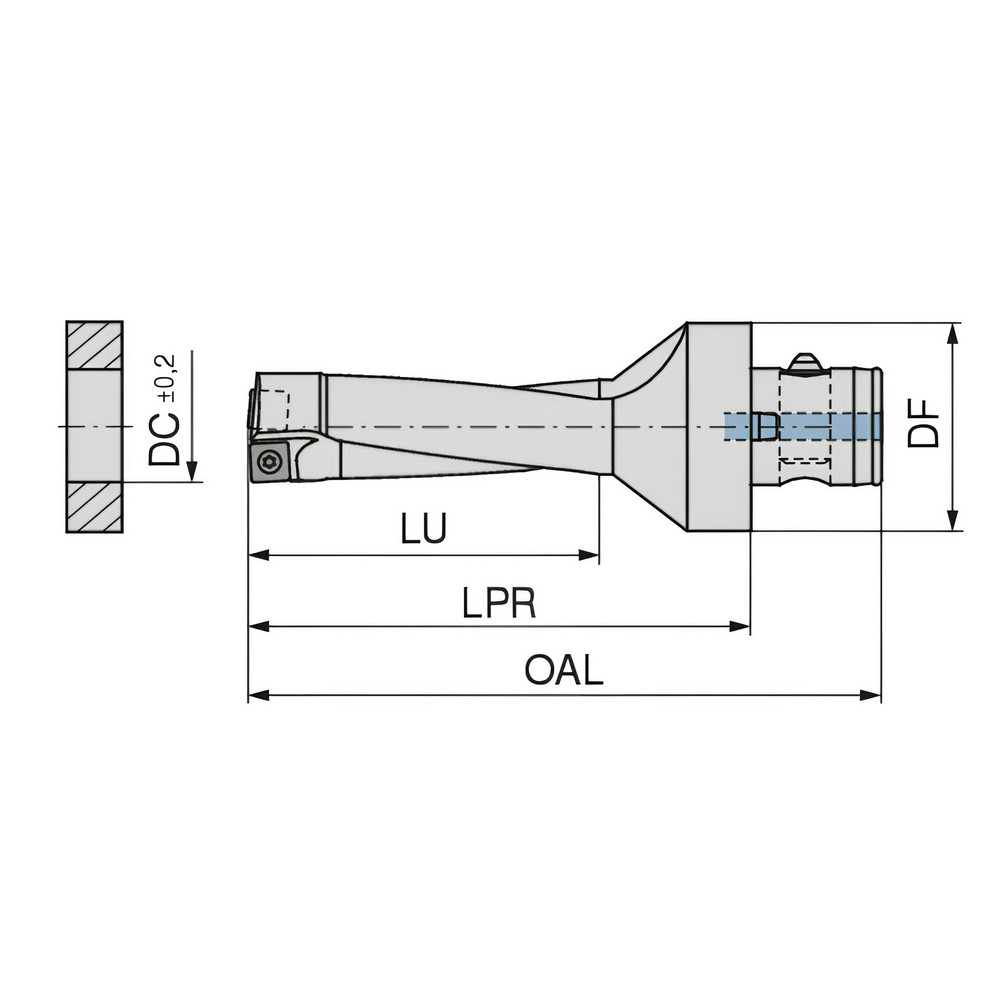

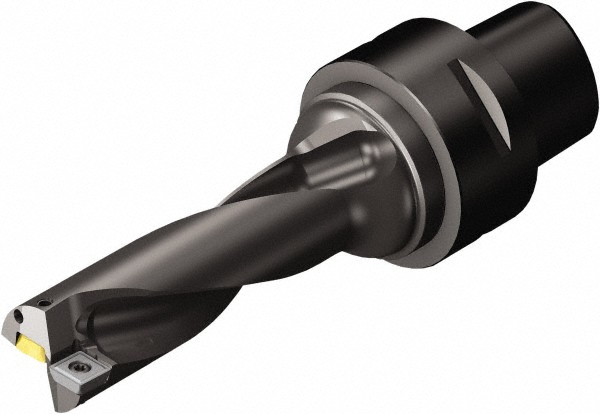

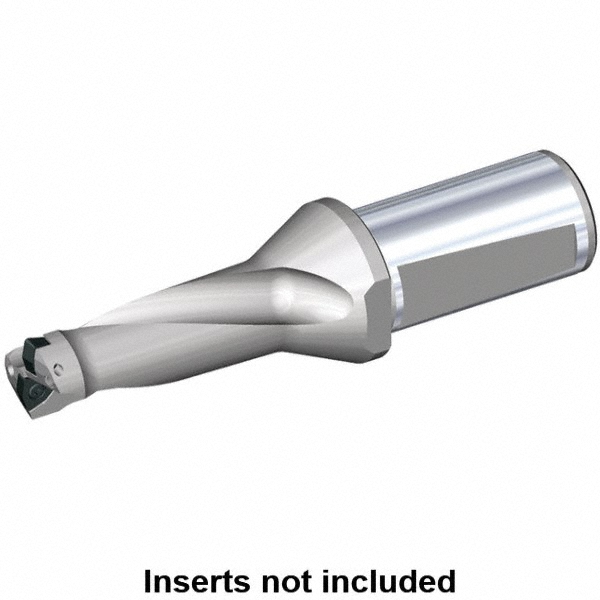

Weldon Flat & Flange Shank, Uses SOEX 060306 Inserts, Series KUB Quatron
| Compatible Drill Style | KUBQ |
|---|---|
| Maximum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7677 |
| Maximum Drill Depth (Decimal Inch) | 2.2441 |
| Maximum Drill Depth (mm) | 57.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 28.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Compatible Insert Size Code | 060306 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | KUB Quatron |
| Flute Length (mm) | 57.00 |
| Body Length (mm) | 92.00 |
| Body Length (Decimal Inch) | 3.6220 |
| Shank Length (mm) | 31.00 |
| Modular Connection Size | ABS50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.35 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOEX 060306 |
| Collar Diameter (mm) | 50.00 |
| Insert Lock Screw | N0057553 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 66222274 |
