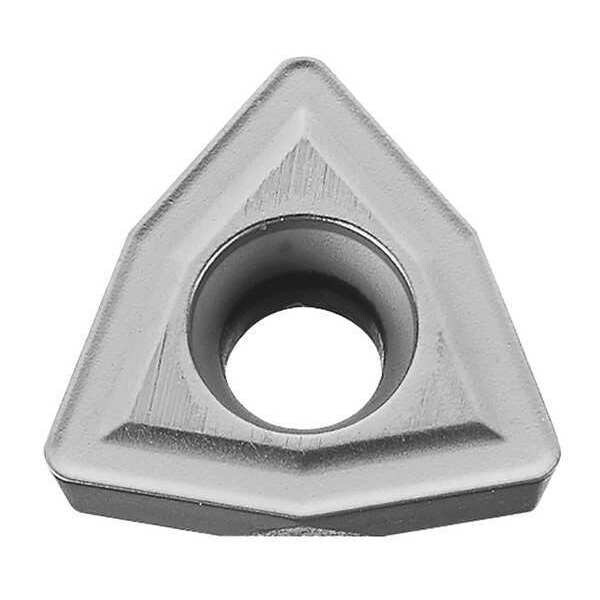

0.3130 in, WCMX050308M1PR1230, 7 Degrees
| Item | Indexable Drilling Insert |
|---|---|
| Manufacturer Series | WCMX |
| Insert Size | 050308 |
| Grade | PR1230 |
| Inscribed Circle | 0.313 in |
| Insert Style | WCMX |
| Insert Shape | Trigon |
| ISO Number | WCMX050308M1PR1230 |
| Mounting Style | Screw Clamp |
| Mounting Hole Dia. | 1/8 in |
| Rake | Positive |
| No. of Edges | 3 |
| Chip-Breaker | Yes |
| For Use With | Holeshot, Coremaster Drills |
| Insert Material | Carbide |
| Nose Radius | 0.031 in |
| Dimension Type | Decimal Inch |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| Application | Drilling |
| Coating | Megacoat |
| Style | WCMX |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Cutting Direction | Right Hand |
| ANSI Number | WCMX050308M1PR1230 |
| Insert Position | Center |
| Relief Angle | 7 deg |
| Insert Application | Drilling |
| Insert Thickness | 0.125" |
| Steel (P) Compatibility | Yes |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | P |
| Thickness | 1/8 in |
| Primary Material Application | Steel |
| ANSI Code | WCMX050308M1PR1230 |
| Included Angle | 80 deg |
| Manufacturer Grade | PR1230 |
| For Drill Type | Coremaster Coredrill, Holeshot Drill |
| Feed Type | High |
| Hole Dia. | 0.126 in |
| Corner Radius | 0.0315 in |
| Coating Process | PVD |
| Shape | Trigon |
| Package Quantity | 1 |
