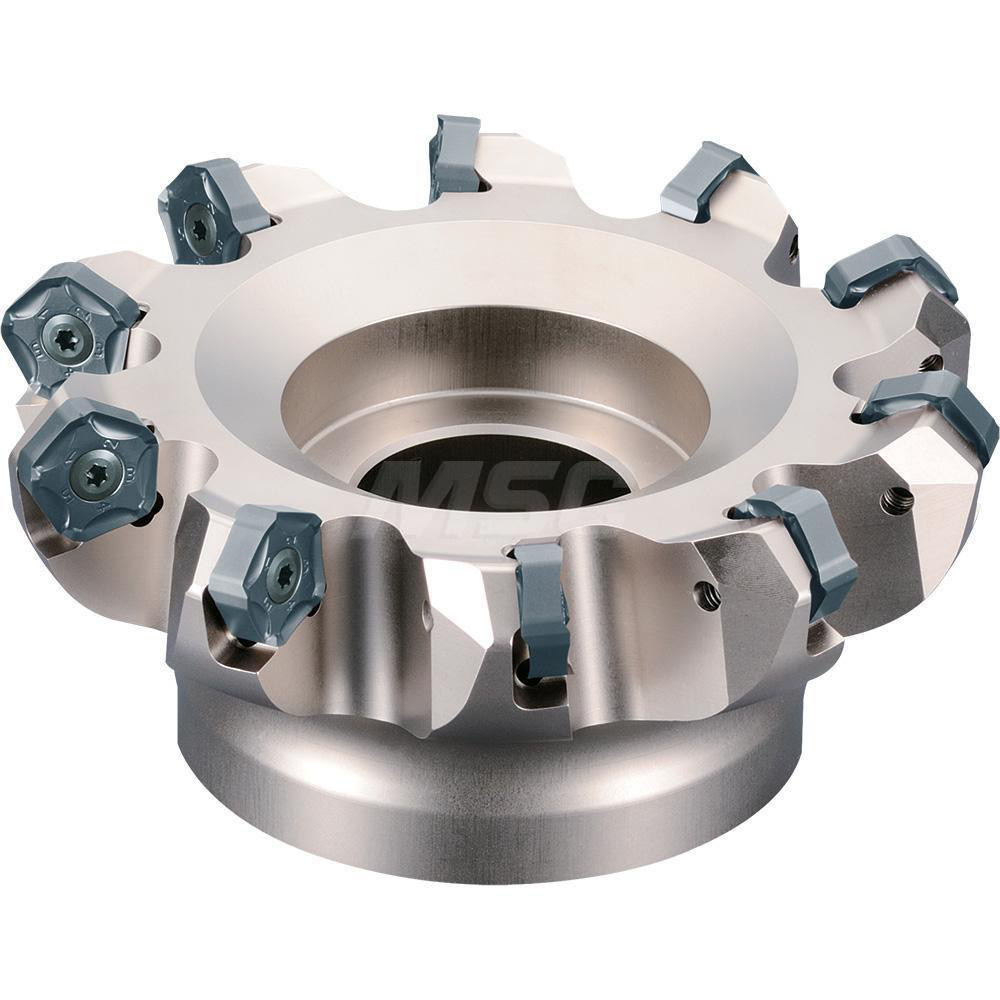

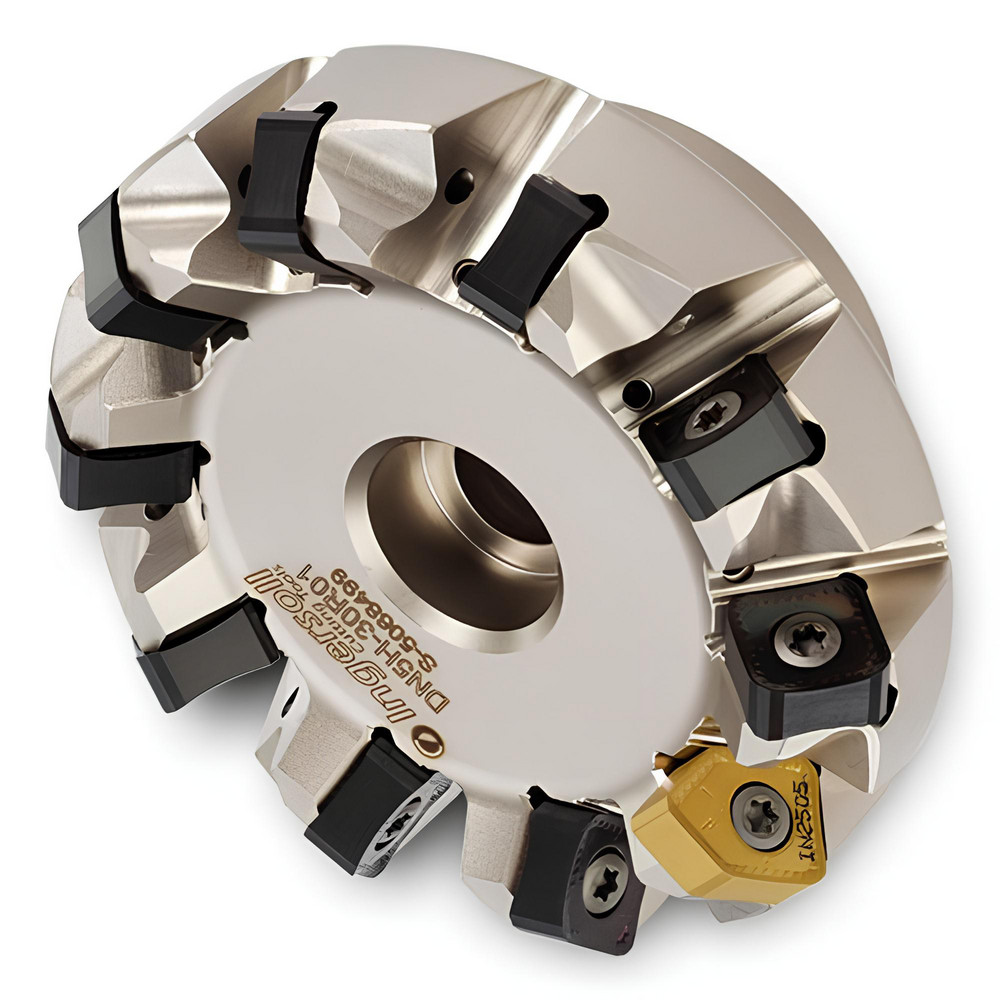

Takes 13 Inserts, PNEU 1205\xB6PNMU 1205 Insert, Right Hand Cut, 13 Flutes, Series MFPN
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.3150 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | 1205 |
| Cutter Style | MFPN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -6 |
| Series | MFPN |
| Hub Diameter (Decimal Inch) | 3.4250 |
| Keyway Width (Decimal Inch) | 0.625 |
| Keyway Width (Inch) | 5/8 |
| Overall Height (Decimal Inch) | 2.4800 |
| Maximum Body Diameter (Decimal Inch) | 5.5100 |
| Pitch Type | Extra Fine |

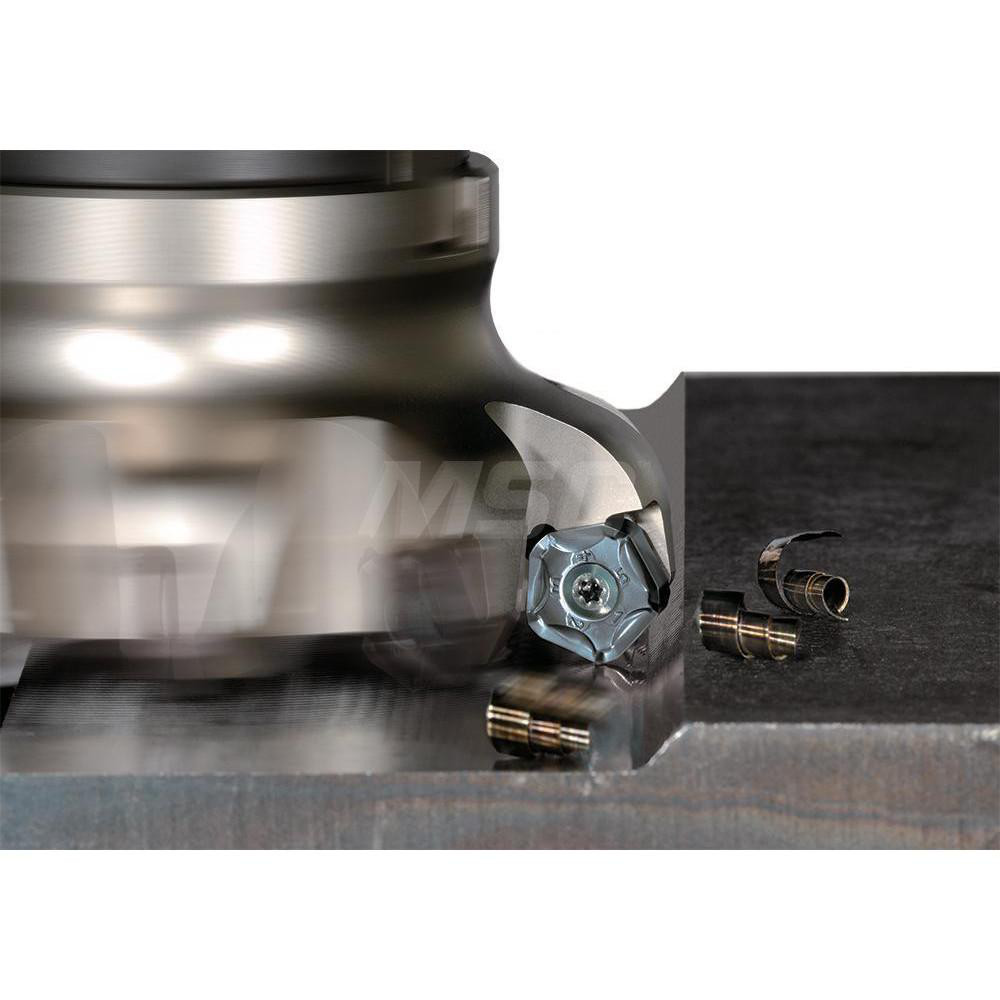

| Tool Application | Facing |
| Complete Insert Compatibility | PNMU 1205ANER-SM; PNEU 1205ANER-W; PNMU 1205ANER-GM; PNMU 1205ANER-GH; PNEU 1205ANER-GL |
| Number Of Cutter Inserts | 13 |
| Coolant Through | No |
| Number Of Flutes | 13 |
| UNSPSC Code | 23291600 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50421270 |
