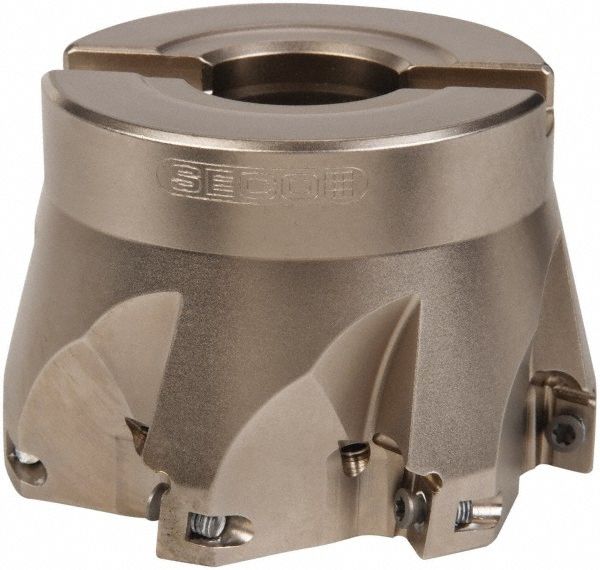

Takes 7 Inserts, 0° Lead Angle, 1.969" High, BDMT 11T3 Insert Style, Through Coolant

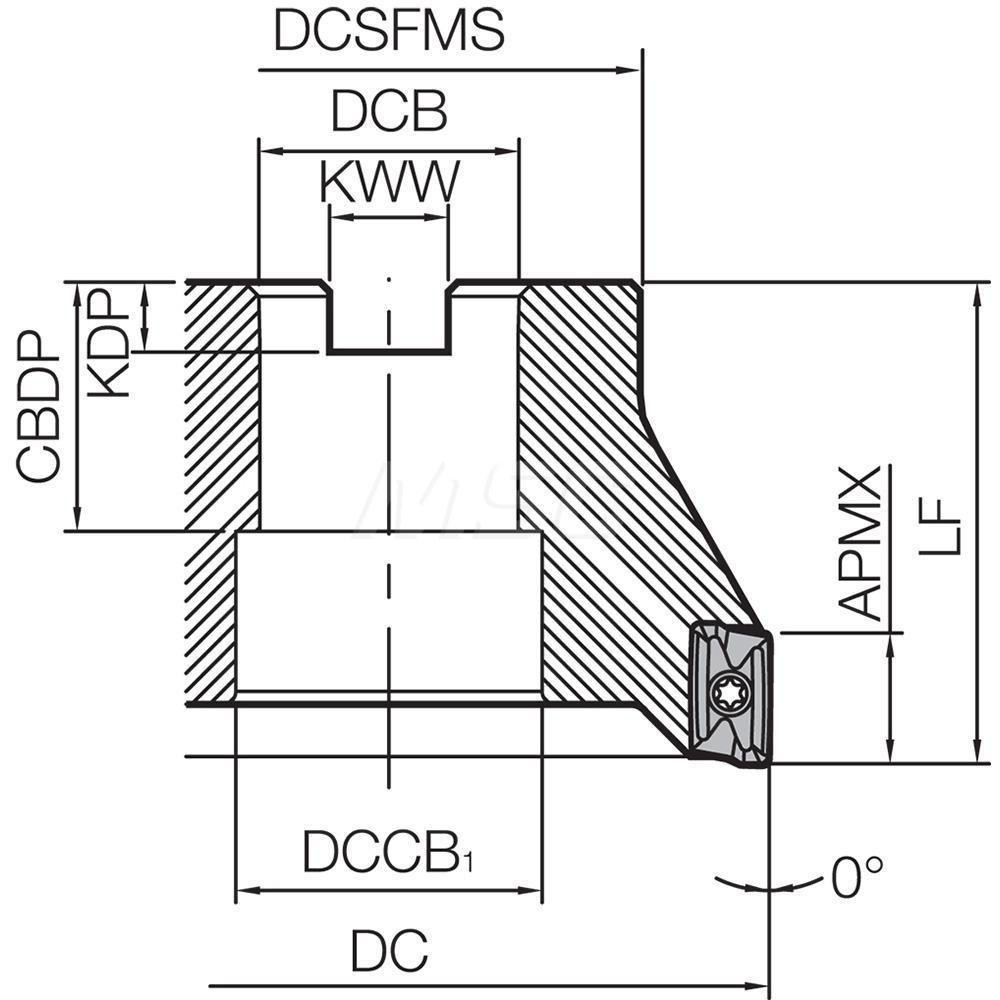

| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 0.5550 |
| Compatible Insert Size Code | BDMT 11T3 |
| Cutter Style | MEC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |

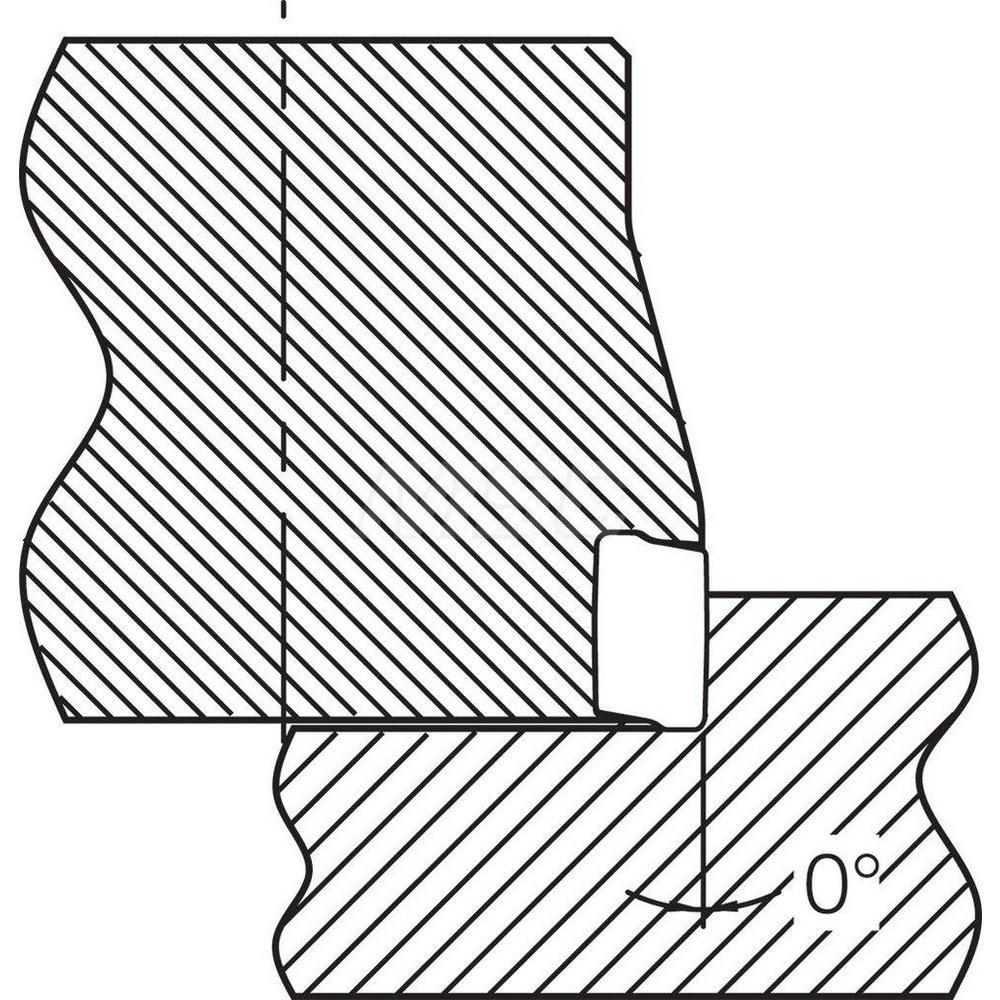

| Lead Angle | 0 |
| Rake | Negative |
| Rake Angle | -7.00 |
| Series | MEC |
| Overall Height (Decimal Inch) | 1.9690 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 1.9170 |
| Pitch Type | Medium |
| Tool Application | Facing; Plunging; Shouldering; Slotting |
| Counterbore Diameter (Decimal Inch) | 0.8270 |

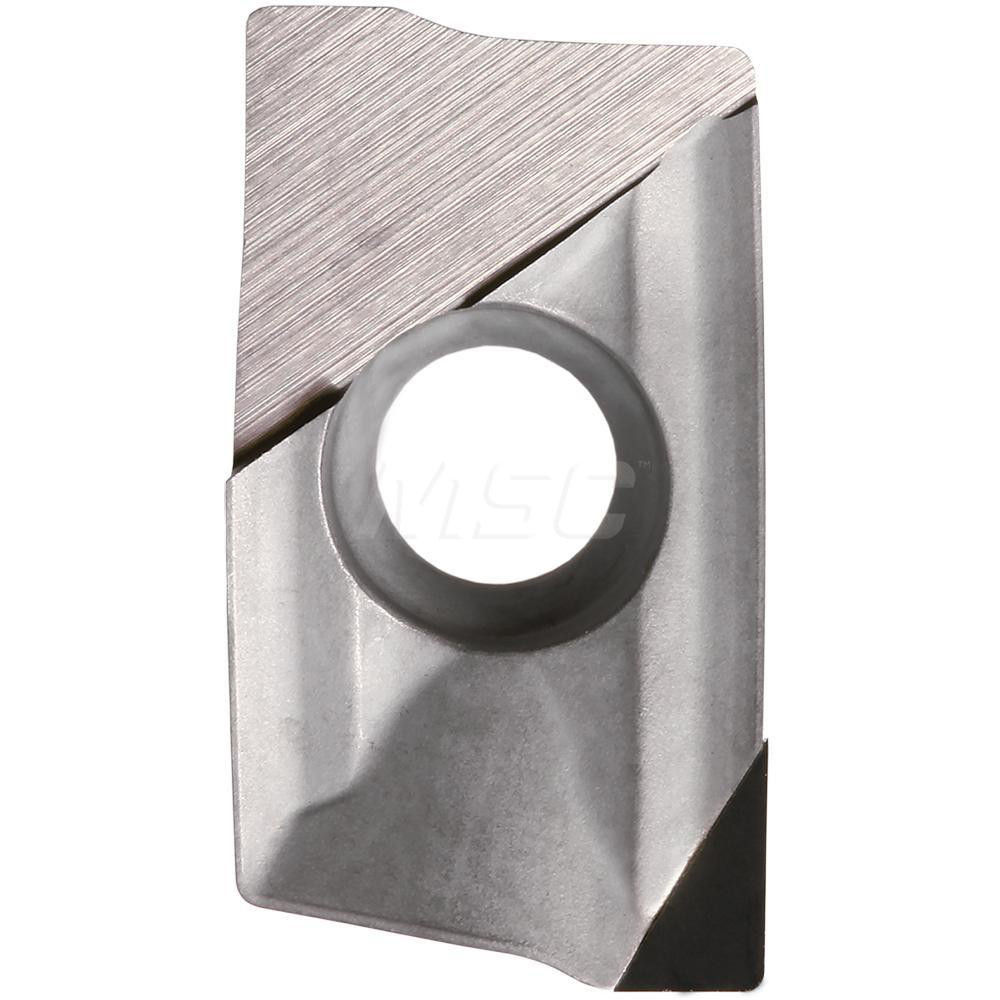

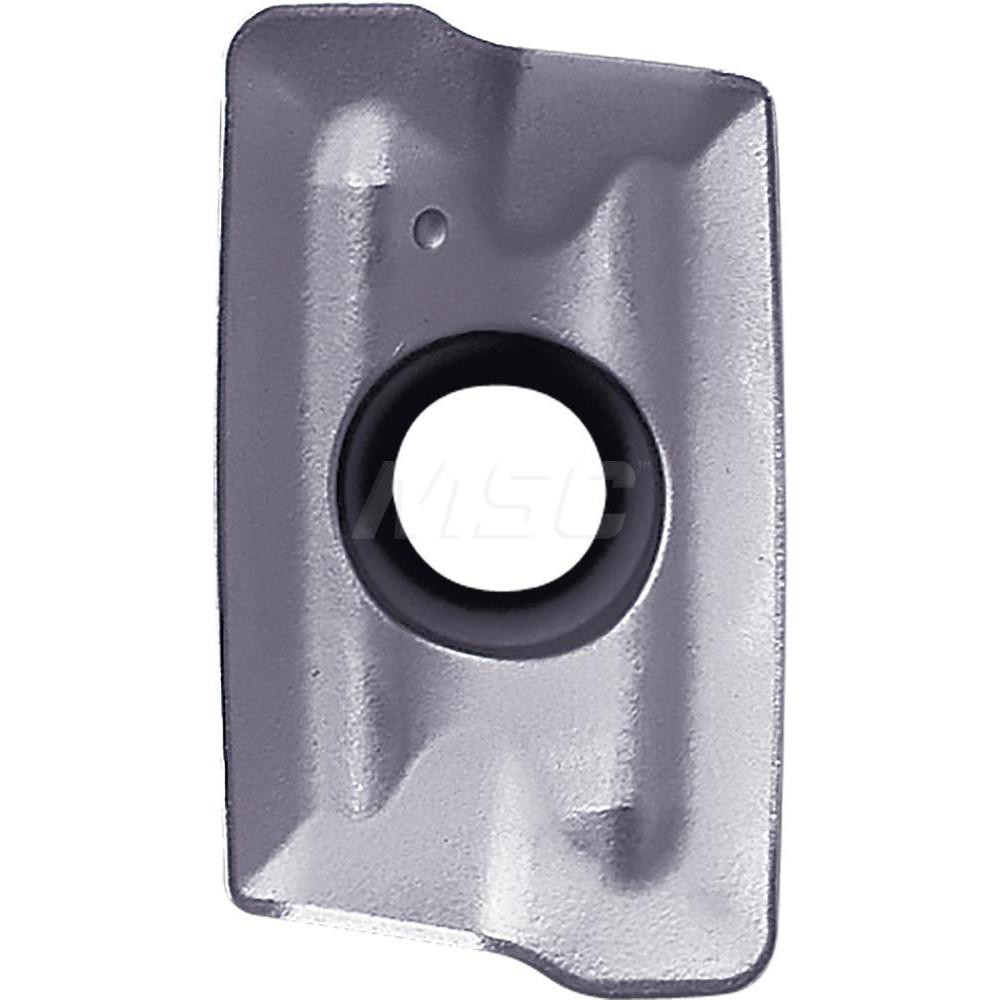

| Complete Insert Compatibility | BDMT 11T324ER-JT; BDMT 11T304ER-JS; BDMT 11T304FR-JA; BDMT 11T304FR; BDMT 11T302FR; BDMT 11T302FR-JA; BDMT 11T302ER-JS; BDMT 11T308ER-JT; BDMT 11T308FR-JA; BDMT 11T302ER-JT; BDMT 11T312ER-JT; BDMT 11T316ER-JT; BDMT 11T320ER-JT; BDMT 11T308ER-JS; BDMT 11T304ER-JT |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.2230 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 93397909 |
