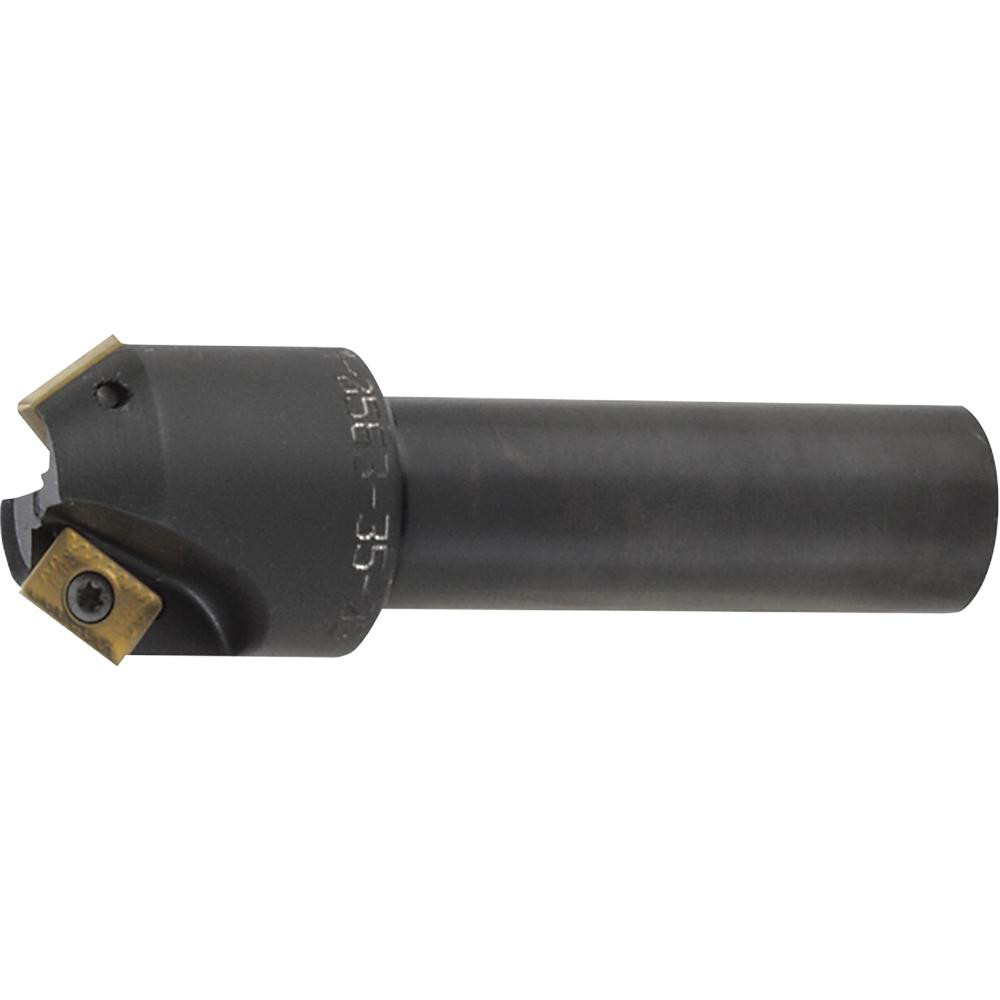

Takes 2 Inserts, XPMT 0902.. Insert Style, CM Toolholder, 2.91" OAL, 0.16" Max Depth of Cut
| Cutting Diameter (Decimal Inch) | 0.5630 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.5630 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5630 |
| Maximum Depth of Cut (Decimal Inch) | 0.1600 |
| Compatible Insert Size Code | XPMT 090216; XPMT 090208; XPMT 090224 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number Of Cutter Inserts | 2 |
| Cutting Direction | Right Hand |
| Insert Style | XPMT 0902.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 2.9100 |
| Toolholder Style | CM |
| Functional Length (Decimal Inch) | 2.9100 |
| Maximum Body Diameter (Decimal Inch) | 0.6250 |
| Maximum Body Diameter (mm) | 15.88 |
| Tool Application | Facing |
| Head Length (Decimal Inch) | 1.0000 |
| Head Length (Inch) | 1 |
| UNSPSC Code | 23291600 |
| Width (Decimal Inch - 4 Decimals) | 0.2930 |
| Coolant Through | No |
| Shank Type | Whistle Notch |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 78823754 |
