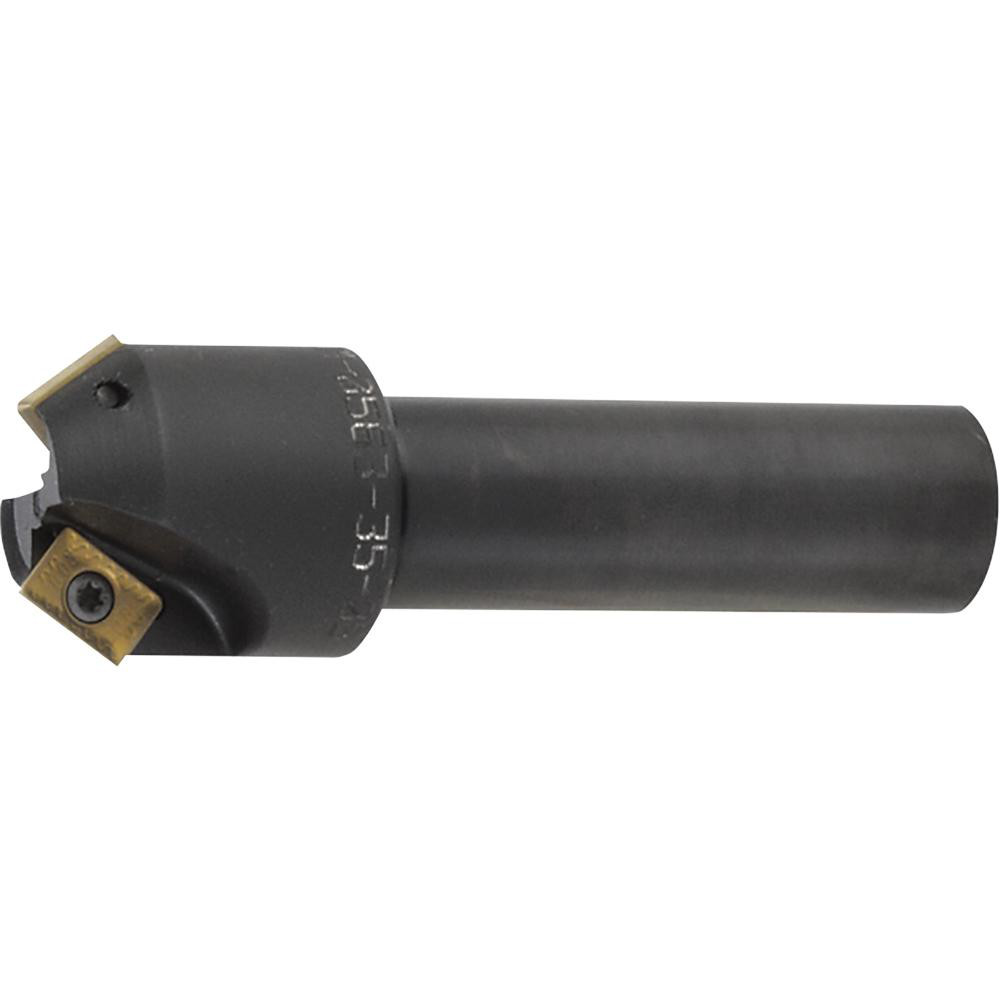

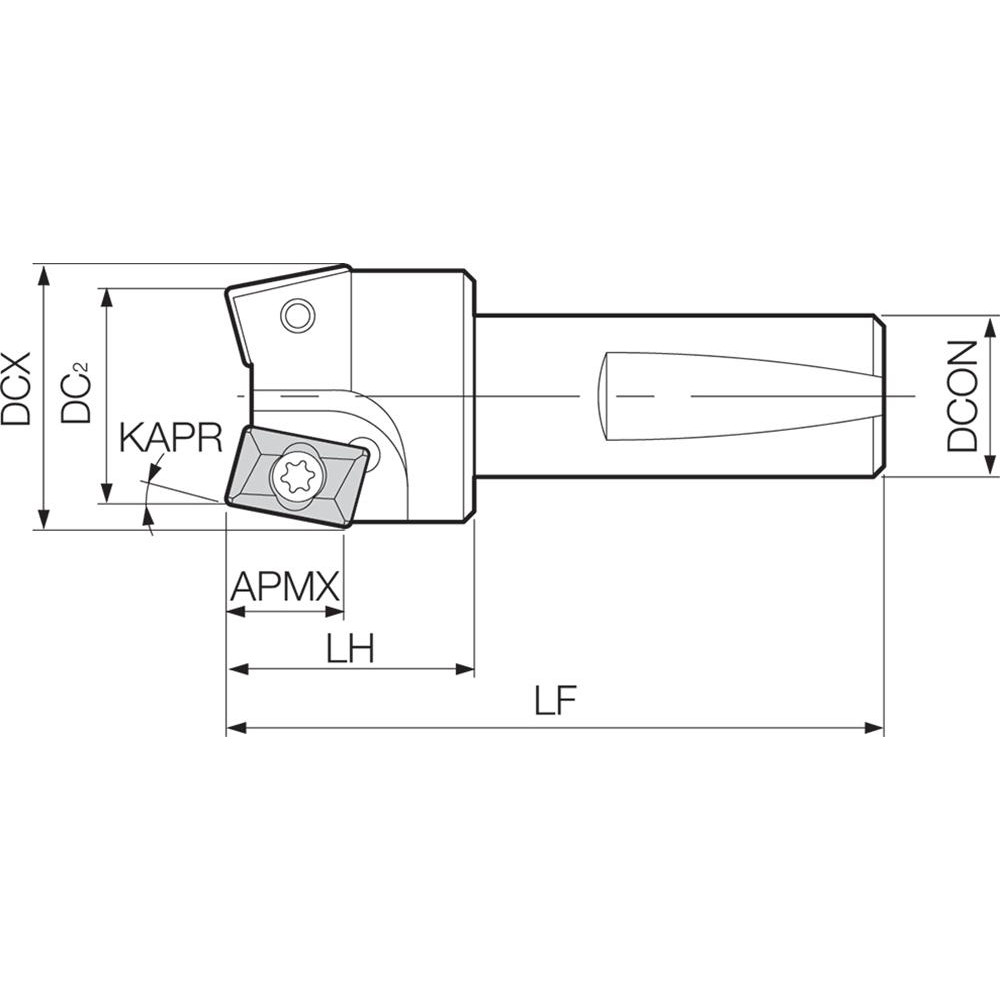

Takes 2 Inserts, XPMT 15T3.. Insert Style, CM Toolholder, 3.15" OAL, 0.284" Max Depth of Cut
| Cutting Diameter (Decimal Inch) | 1 |
|---|---|
| Minimum Cutting Diameter (Inch) | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2840 |

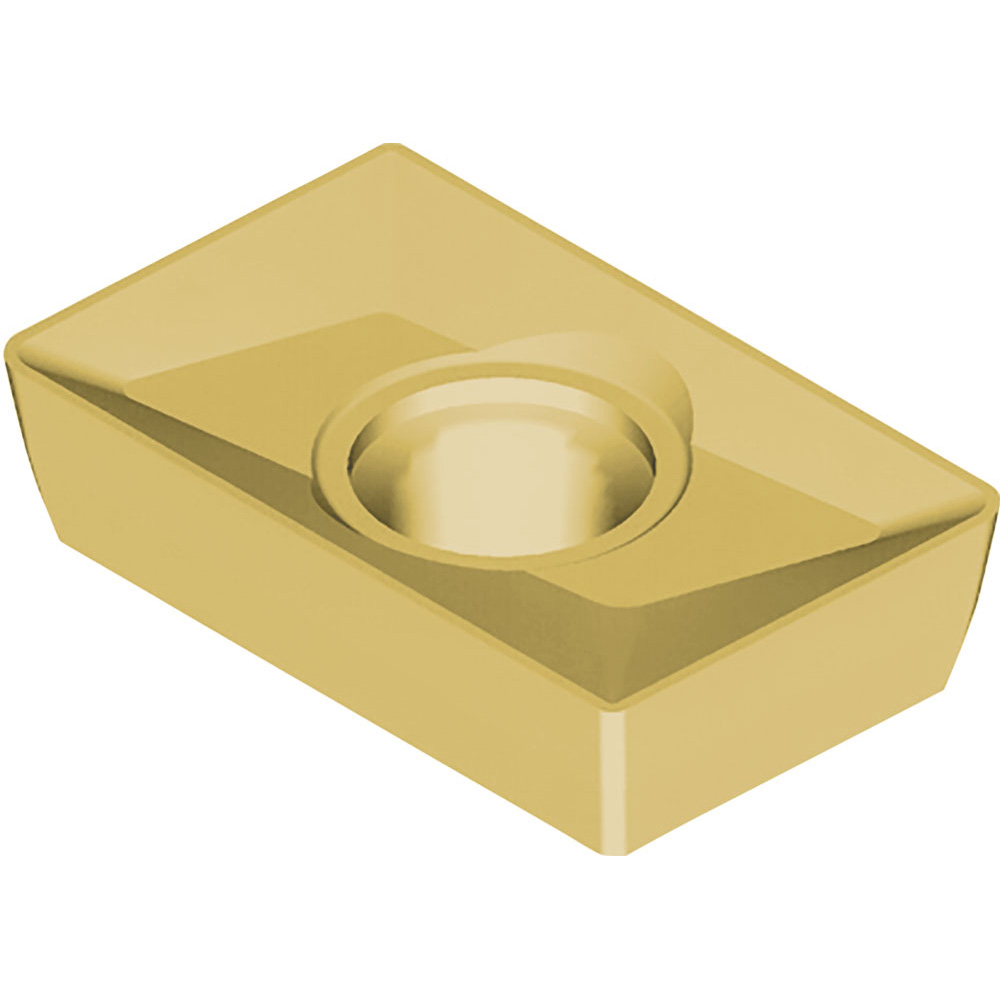

| Compatible Insert Size Code | XPMT 15T308; XPMT 15T316; XPMT 15T304; XPMT 15T324; XPMT 15T331; XPMT 15T364 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Cutting Direction | Right Hand |
| Insert Style | XPMT 15T3.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.1500 |
| Series | CM |
| Toolholder Style | CM |
| Functional Length (Decimal Inch) | 3.1500 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Maximum Body Diameter (mm) | 19.05 |
| Tool Application | Facing |
| Head Length (Decimal Inch) | 1.2500 |
| Head Length (Inch) | 1-1/4 |
| UNSPSC Code | 23291600 |
| Width (Decimal Inch - 4 Decimals) | 0.5210 |
| Coolant Through | No |
| Shank Type | Whistle Notch |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 78823895 |
