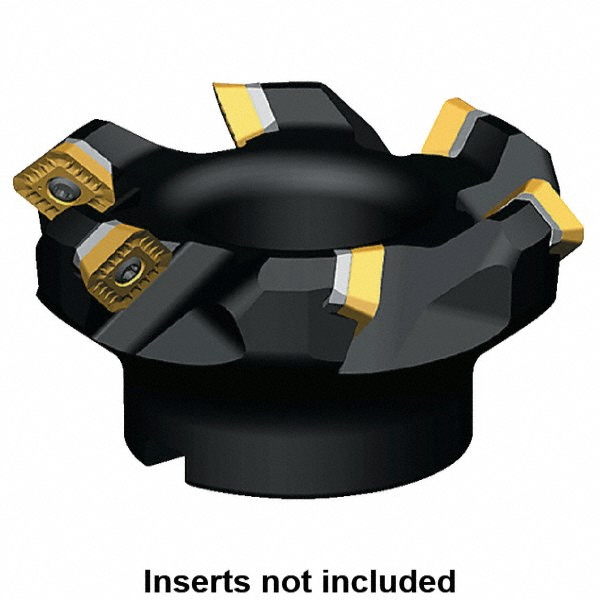

Takes 4 Inserts, PNEU 12..\xB6PNMU 12.. Insert, Right Hand Cut, 4 Flutes, Series MFPN
| Minimum Cutting Diameter (mm) | 63.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 76.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | 12 |
| Cutter Style | MFPN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -10 |
| Series | MFPN |
| Hub Diameter (mm) | 76.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Overall Height (Decimal Inch) | 1.5748 |
| Pitch Type | Coarse |
| Tool Application | Facing |
| Complete Insert Compatibility | PNMU 1205ANER-SM; PNEU 1205ANER-W; PNMU 1205ANER-GM; PNMU 1205ANER-GH; PNEU 1205ANER-GL |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| UNSPSC Code | 23291600 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50421064 |
