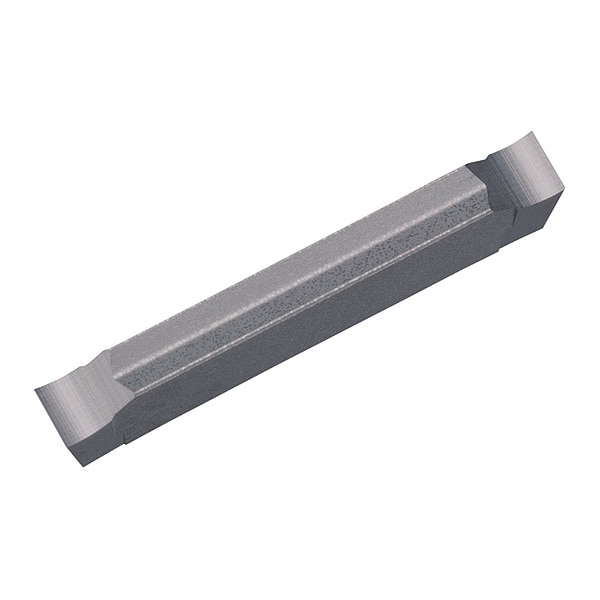

Cut-Off Insert, GDG 2020N005PG GW15 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| ISO Number | GDG2020N-005PG |
| Overall Length | 20 mm |
| Rake | Positive |
| Corner Radius | 0.05 mm |
| Insert Holding Type | Clamp |
| Cutting Application | Cut-Off for Small Parts |
| Secondary Material Application ISO Code | S |
| Material - Machining | Carbide |
| Number of Cutting Edges | 2 |
| Max. Grooving Width | 2 mm |
| For Toolholder | KGDL...-2, KGDL...JX-2, KGDR...-2, KGDR...JX-2, KGDSL...JX-2, KGDSR...JX-2 |
| Secondary Material Application | High-Temperature Alloys |
| Cutting Height | 4.3 mm |
| Hole Type | No Hole |
| Chip-Breaker Code | PG |
| Finish - Machining | Bright |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Measurement System | Metric |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | GW15 |
| Insert Size | 2020 |
| ANSI Code | GDG2020N005PG |
| Package Quantity | 1 |
