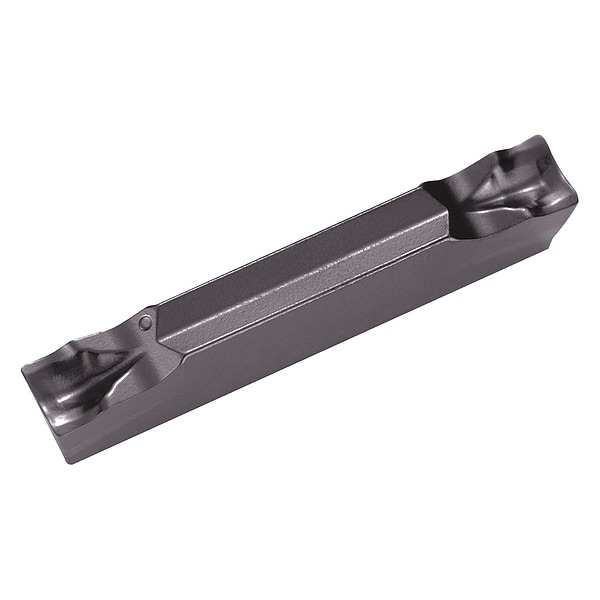

Cut-Off Insert, GDM 2520N020PM PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Overall Length | 20 mm |
| ISO Number | GDM2520N020PM |
| Rake | Positive |
| Corner Radius | 0.2 mm |
| Primary Material Application ISO Code | P |
| Cutting Height | 4.3 mm |
| Insert Size | 2520 |
| Primary Material Application | Steel |
| Number of Cutting Edges | 2 |
| Measurement System | Metric |
| Insert Holding Type | Clamp |
| ANSI Code | GDM2520N020PM |
| Cutting Application | Cut-Off |
| Material - Machining | Carbide |
| Finish - Machining | Megacoat |
| Secondary Material Application ISO Code | M |
| For Toolholder | KGDL...-2.4, KGDL...-2.4JX, KGDL...JX-2.4, KGDR...-2.4, KGDR...-2.4JX, KGDR...JX-2.4 |
| Max. Grooving Width | 2.5 mm |
| Hole Type | No Hole |
| Manufacturer Grade | PR1225 |
| Secondary Material Application | Stainless Steel |
| Coating Process | PVD |
| Chip-Breaker Code | PM |
| Package Quantity | 1 |
