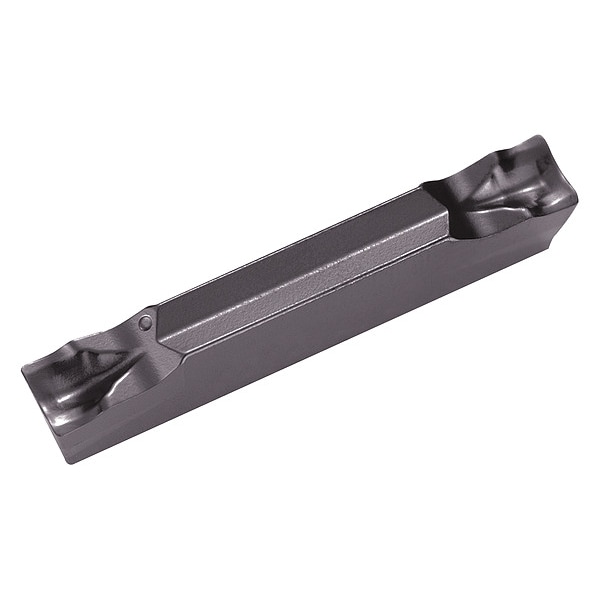

Cut-Off Insert, GDM 3020N025PM PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Rake | Positive |
| Corner Radius | 0.25 mm |
| ISO Number | GDM3020N-025PM |
| Overall Length | 20 mm |
| Secondary Material Application ISO Code | M |
| Primary Material Application ISO Code | S |
| Insert Holding Type | Clamp |
| Max. Grooving Width | 3 mm |
| Coating Process | PVD |
| Primary Material Application | High-Temperature Alloys |
| Number of Cutting Edges | 2 |
| Insert Size | 3020 |
| Cutting Application | Cut-Off |
| Manufacturer Grade | PR1535 |
| Hole Type | No Hole |
| Finish - Machining | Megacoat Nano |
| Measurement System | Metric |
| Chip-Breaker Code | PM |
| ANSI Code | GDM3020N025PM |
| Cutting Height | 4.3 mm |
| Secondary Material Application | Stainless Steel |
| For Toolholder | KGDL...-2, KGDL...-2.4, KGDL...-3, KGDL...JX-2, KGDL...JX-2.4, KGDL...JX-3, KGDR...-2, KGDR...-2.4, KGDR...-3, KGDR...JX-2, KGDR...JX-2.4, KGDR...JX-3, KGDSL...JX-2, KGDSL...JX-2.4, KGDSL...JX-3, KGDSR...JX-2, KGDSR...JX-2.4, KGDSR...JX-3 |
| Material - Machining | Carbide |
| Package Quantity | 1 |
