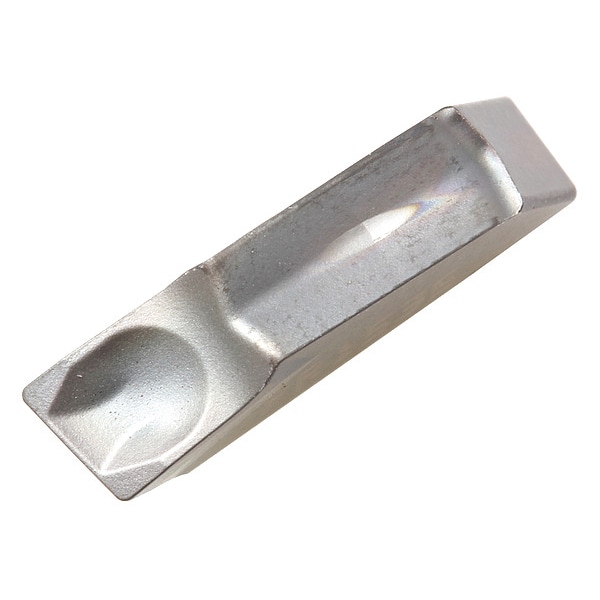

Cut-Off Insert, TK R3 KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Right Hand |
| Corner Radius | 0.25 mm |
| Rake | Positive |
| Lead Angle | 8 deg |
| ISO Number | TKR3 |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | KW10 |
| ANSI Code | TKR3 |
| Finish - Machining | Bright |
| Material - Machining | Carbide |
| Measurement System | Metric |
| For Toolholder | KTKB...-3S |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Cutting Application | Cut-Off |
| Number of Cutting Edges | 1 |
| Hole Type | No Hole |
| Insert Size | 3 |
| Max. Grooving Width | 3.1 mm |
| Insert Holding Type | Clamp |
| Package Quantity | 1 |
