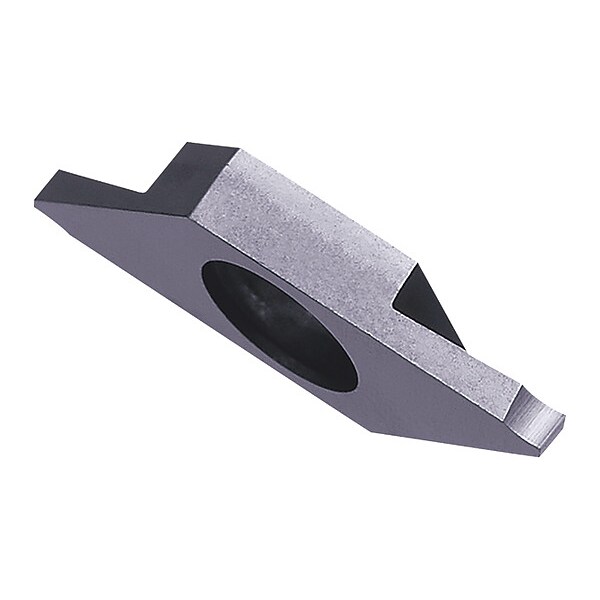

Cut-Off Insert, TKF 12L150T PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Left Hand |
| ISO Number | TKF12L150-T |
| Corner Radius | 0.08 mm |
| Rake | Positive |
| Lead Angle | 0 deg |
| Thickness | 8.7 mm |
| Max. Grooving Width | 1.5 mm |
| Manufacturer Grade | PR1535 |
| Chip-Breaker Code | T |
| Hole Type | With Hole |
| Secondary Material Application | Stainless Steel |
| Coating Process | PVD |
| Finish - Machining | Megacoat Nano |
| Measurement System | Metric |
| Insert Size | 12 |
| Insert Holding Type | Clamp |
| Primary Material Application ISO Code | S |
| ANSI Code | TKF12L150T |
| Depth of Cut | 6 mm |
| Number of Cutting Edges | 2 |
| Cutting Application | Cut-Off for Small Parts |
| For Toolholder | KTKFL...-12JX, KTKFL...F-12, KTKFL...JX-12 |
| Material - Machining | Carbide |
| Primary Material Application | High-Temperature Alloys |
| Secondary Material Application ISO Code | M |
| Package Quantity | 1 |
