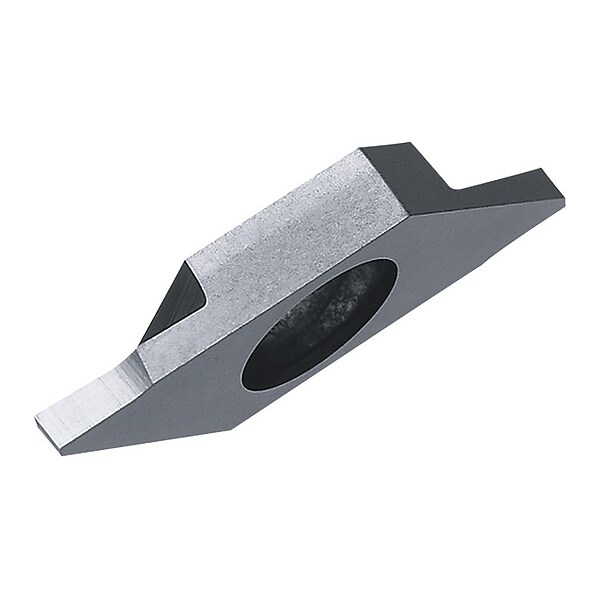

Cut-Off Insert, TKF 12R050NB KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| Lead Angle | 0 deg |
| Rake | Positive |
| ISO Number | TKF12R050-NB |
| Corner Radius | 0 mm |
| Thickness | 8.7 mm |
| Max. Grooving Width | 0.5 mm |
| Number of Cutting Edges | 2 |
| ANSI Code | TKF12R050NB |
| Insert Holding Type | Clamp |
| Material - Machining | Carbide |
| Depth of Cut | 2.5 mm |
| For Toolholder | KTKFR...-12JX, KTKFR...F-12, KTKFR...JX-12 |
| Measurement System | Metric |
| Chip-Breaker Code | NB |
| Finish - Machining | Bright |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | KW10 |
| Insert Size | 12 |
| Cutting Application | Cut-Off for Small Parts |
| Hole Type | With Hole |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Package Quantity | 1 |
