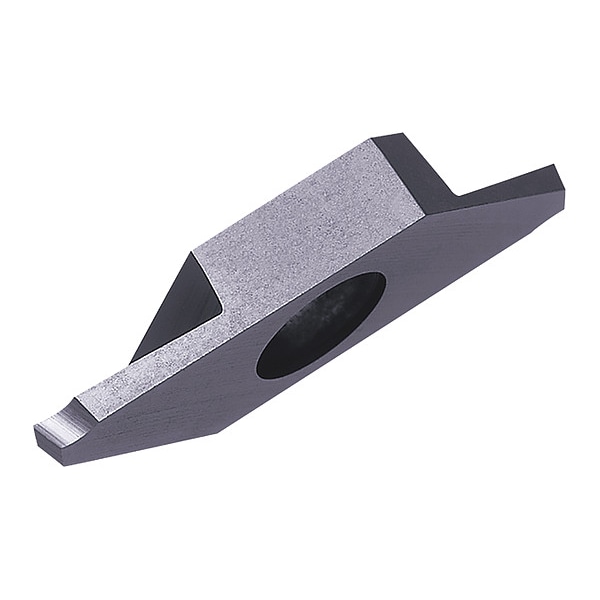

Cut-Off Insert, TKF 16R150S16DR PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| ISO Number | TKF16R150-S-16DR |
| Corner Radius | 0.05 mm |
| Lead Angle | 16 deg |
| Rake | Positive |
| Thickness | 9.5 mm |
| Hole Type | With Hole |
| Chip-Breaker Code | S |
| Primary Material Application ISO Code | P |
| Finish - Machining | Megacoat |
| Coating Process | PVD |
| Measurement System | Metric |
| Manufacturer Grade | PR1225 |
| Cutting Application | Cut-Off for Small Parts |
| Depth of Cut | 8 mm |
| Material - Machining | Carbide |
| Insert Holding Type | Clamp |
| Insert Size | 16 |
| Secondary Material Application ISO Code | M |
| ANSI Code | TKF16R150S16DR |
| Primary Material Application | Steel |
| Secondary Material Application | Stainless Steel |
| Number of Cutting Edges | 2 |
| Max. Grooving Width | 1.5 mm |
| For Toolholder | KTKFR...-16JX, KTKFR...F-16, KTKFR...JX-16 |
| Package Quantity | 1 |
