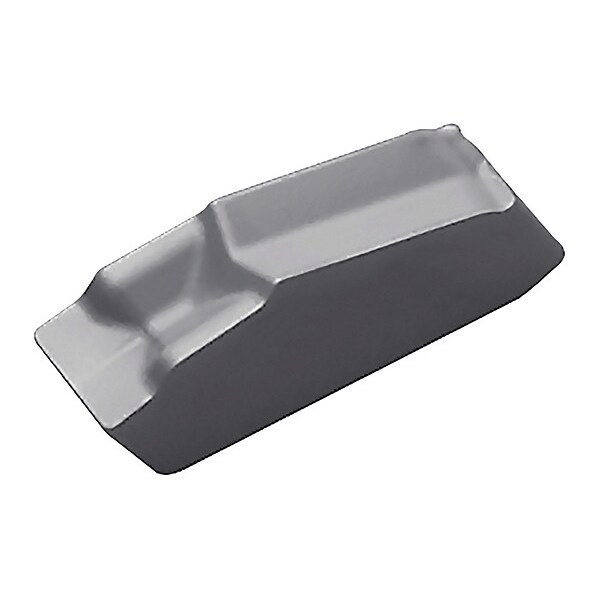

Cut-Off Insert, TKN 3P PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Corner Radius | 0.25 mm |
| ISO Number | TKN3-P |
| Rake | Positive |
| Insert Holding Type | Clamp |
| Secondary Material Application | Stainless Steel |
| ANSI Code | TKN3P |
| Chip-Breaker Code | P |
| Cutting Application | Cut-Off |
| Manufacturer Grade | PR1535 |
| Primary Material Application | High-Temperature Alloys |
| For Toolholder | KTKB...-3S |
| Insert Size | 3 |
| Measurement System | Metric |
| Feed Type | Low |
| Material - Machining | Carbide |
| Coating Process | PVD |
| Max. Grooving Width | 3.1 mm |
| Secondary Material Application ISO Code | M |
| Primary Material Application ISO Code | S |
| Number of Cutting Edges | 1 |
| Hole Type | No Hole |
| Finish - Machining | Megacoat Nano |
| Package Quantity | 1 |
