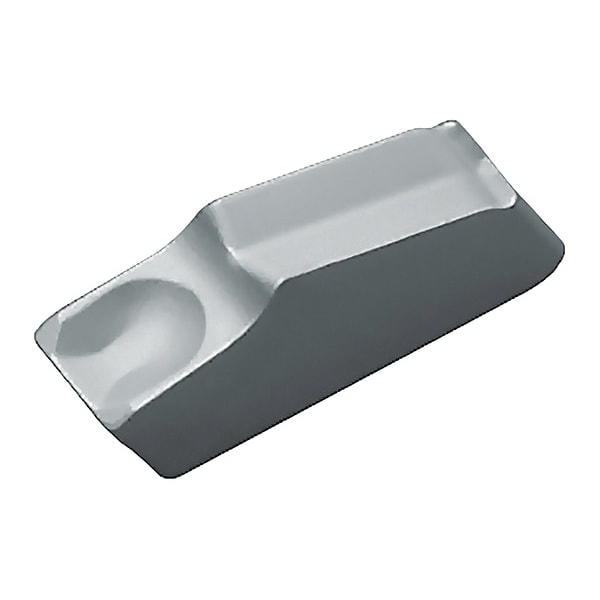

Cut-Off Insert, TKN 4 KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Neutral |
| Rake | Positive |
| Corner Radius | 0.3 mm |
| ISO Number | TKN4 |
| Hole Type | No Hole |
| Cutting Application | Cut-Off |
| Number of Cutting Edges | 1 |
| Measurement System | Metric |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Insert Holding Type | Clamp |
| Max. Grooving Width | 4.1 mm |
| ANSI Code | TKN4 |
| For Toolholder | KTKB...-4S |
| Finish - Machining | Bright |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | KW10 |
| Insert Size | 4 |
| Package Quantity | 1 |
