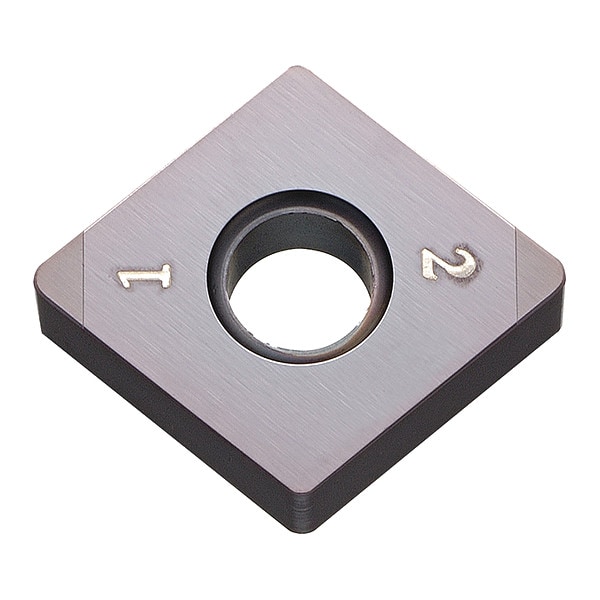

Diamond Turning Insert, 1/2 in, 1/32 in
| Item | Diamond Turning Insert |
|---|---|
| Inscribed Circle | 1/2 in |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Negative |
| ISO Number | CNGA120408 S01730 ME-T |
| End Mill Style | Ball Nose |
| Cutting Direction | Neutral |
| Features | Heat-Resistant Megacoat |
| Thickness | 3/16 in |
| Hole Type | Straight Hole |
| Manufacturer Grade | KBN25M |
| Shape | Diamond |
| Clearance Angle | 0 deg |
| ANSI Code | CNGA432S00730MET |
| Finish - Machining | Megacoat |
| Number of Cutting Edges | 2 |
| Primary Material Application | Hardened Steel |
| Chip-Breaker Style | Finishing |
| Primary Material Application ISO Code | H |
| Through Hole Inside Dia. | 0.2031 in |
| Measurement System | Fractional Inch |
| Cutting Edge | Tough |
| Cutting Application | Boring, External Turning, Facing, Internal Facing |
| General Shape | Diamond |
| Material - Machining | CBN |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | MET |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
