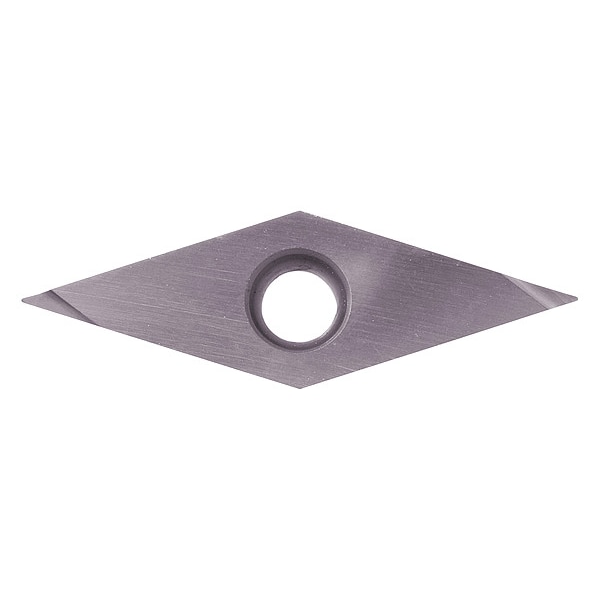

Diamond Turning Insert, Diamond, 2, 0.0020 in
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | 0.002 in |
| Rake | Positive |
| ISO Number | VBET1103005MR-FSF |
| Cutting Direction | Right Hand |
| Features | Superior Wear and Oxidation Resistance |
| Thickness | 2 |
| Secondary Material Application | Stainless Steel |
| Primary Material Application ISO Code | P |
| Manufacturer Grade | PR1225 |
| Insert Holding Type | Screw |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Finish - Machining | Megacoat |
| Cutting Edge | Minus Tolerance Corner Radius; Precision; Sharp Edge; Super Fine |
| Chip-Breaker Code | FSF |
| Primary Material Application | Steel |
| ANSI Code | VBET22013MRFSF |
| Chip-Breaker Style | Finishing |
| Coating Process | PVD |
| Included Angle | 35 Degrees |
| Shape | Diamond |
| Through Hole Inside Dia. | 0.1102 in |
| General Shape | Diamond |
| Cutting Application | Back Boring, Copying, External Turning, Facing, Internal Facing, Interrupted Cutting, Profiling, Undercutting |
| Clearance Angle | 5 deg |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Secondary Material Application ISO Code | M |
| Number of Cutting Edges | 2 |
| Package Quantity | 1 |
