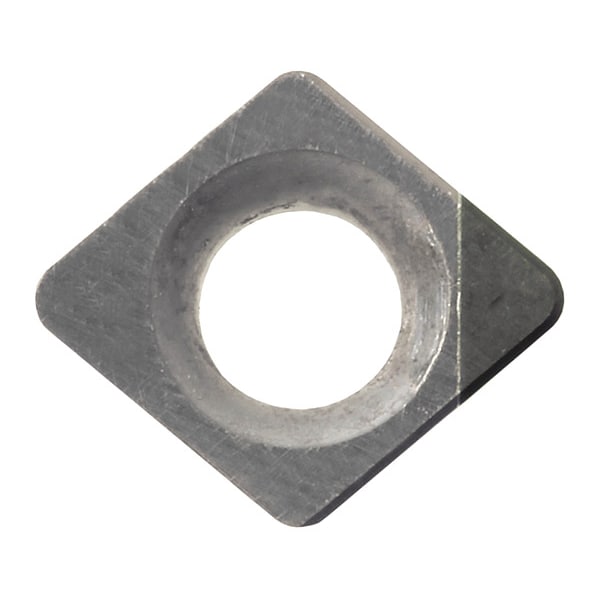

Diamond Turning Insert, Diamond, 2, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | CCMW060204SE |
| Cutting Direction | Neutral |
| Thickness | 1.5 |
| Features | Good Wear Resistance and Toughness, High Stability |
| General Shape | Diamond |
| Cutting Edge | Small Edge |
| Cutting Application | Boring, External Turning, Facing, Internal Facing |
| Primary Material Application ISO Code | H |
| Shape | Diamond |
| Through Hole Inside Dia. | 0.1102 in |
| Material - Machining | CBN |
| Number of Cutting Edges | 1 |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Insert Holding Type | Screw |
| Measurement System | Fractional Inch |
| Clearance Angle | 7 deg |
| Chip-Breaker Code | SE |
| ANSI Code | CCMW2151SE |
| Manufacturer Grade | KBN525 |
| Chip-Breaker Style | Finishing |
| Included Angle | 80 Degrees |
| Primary Material Application | Hardened Steel |
| Finish - Machining | Bright |
| Package Quantity | 1 |
