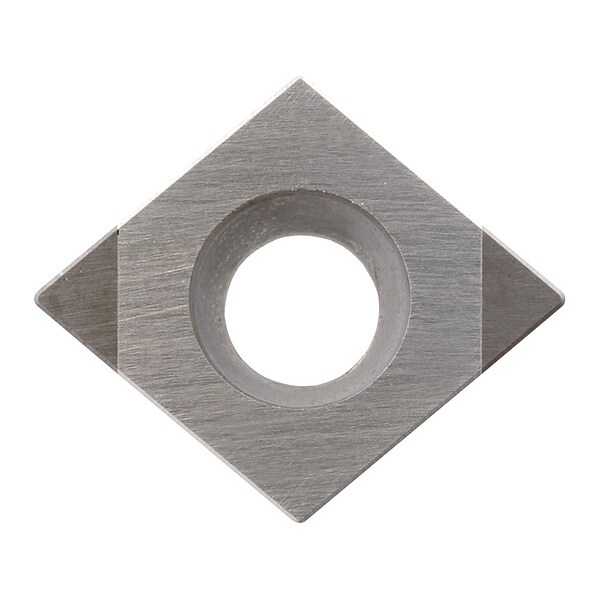

Diamond Turning Insert, Diamond, 2, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | CCMW060204T00815ME |
| Cutting Direction | Neutral |
| Features | Heat-Resistant Megacoat, Honeycomb Structure CBN Composite Material Consisting of Wear Resistant CBN (Core) and Tough CBN (Shell) |
| Thickness | 1.5 |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Included Angle | 80 Degrees |
| Measurement System | Fractional Inch |
| Material - Machining | CBN |
| ANSI Code | CCMW2151T00315ME |
| Finish - Machining | Megacoat |
| Chip-Breaker Style | Finishing |
| Manufacturer Grade | KBN35M |
| Shape | Diamond |
| Clearance Angle | 7 deg |
| Primary Material Application ISO Code | H |
| General Shape | Diamond |
| Material Grade - Machining | Honeycomb Structure |
| Through Hole Inside Dia. | 0.1102 in |
| Primary Material Application | Hardened Steel |
| Cutting Application | Boring, External Turning, Facing, Internal Facing |
| Number of Cutting Edges | 2 |
| Chip-Breaker Code | ME |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
