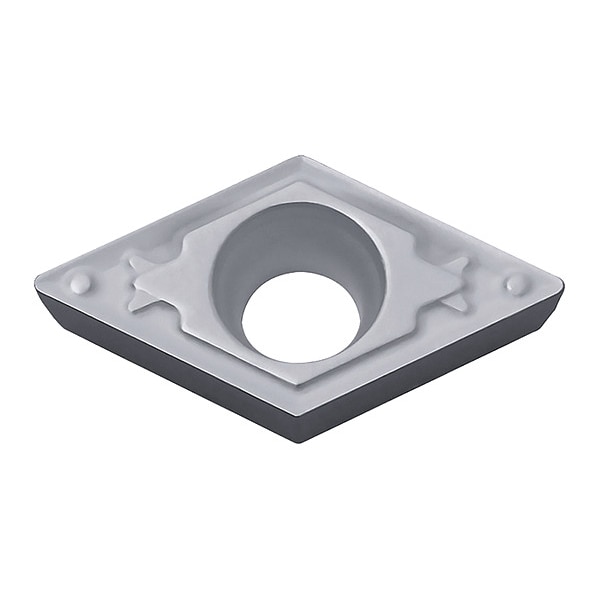

Diamond Turning Insert, Diamond, 2, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | DCMT070204HQ |
| Cutting Direction | Neutral |
| Thickness | 1.5 |
| Features | General Purpose Cermet with Superior Wear Resistance and Toughness |
| Insert Holding Type | Screw |
| Included Angle | 55 Degrees |
| Finish - Machining | Bright |
| Material - Machining | Cermet |
| General Shape | Diamond |
| Clearance Angle | 7 deg |
| Secondary Material Application | Stainless Steel |
| Chip-Breaker Code | HQ |
| Secondary Material Application ISO Code | M |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Chip-Breaker Style | Medium Finishing |
| Primary Material Application ISO Code | P |
| Cutting Application | Back Boring, Copying, External Turning |
| Material Grade - Machining | TiCN+NbC Component |
| Manufacturer Grade | TN60 |
| Primary Material Application | Steel |
| Number of Cutting Edges | 2 |
| Shape | Diamond |
| ANSI Code | DCMT2151HQ |
| Measurement System | Fractional Inch |
| Through Hole Inside Dia. | 0.1102 in |
| Package Quantity | 1 |
