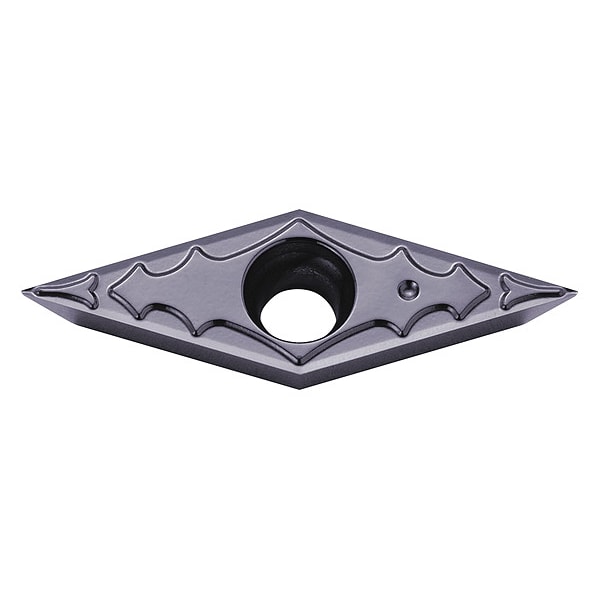

Diamond Turning Insert, Diamond, 2, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | VPGT110302MP-CF |
| Cutting Direction | Neutral |
| Features | Superior Wear and Oxidation Resistance |
| Thickness | 2 |
| General Shape | Diamond |
| Through Hole Inside Dia. | 0.1102 in |
| Chip-Breaker Code | CF |
| Insert Holding Type | Screw |
| Finish - Machining | Megacoat |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Measurement System | Fractional Inch |
| Clearance Angle | 11 deg |
| Secondary Material Application | Stainless Steel |
| Material - Machining | Carbide |
| Primary Material Application | Steel |
| ANSI Code | VPGT2205MPCF |
| Included Angle | 35 Degrees |
| Primary Material Application ISO Code | P |
| Shape | Diamond |
| Number of Cutting Edges | 2 |
| Cutting Application | Back Boring, Copying, External Turning, Facing, Internal Facing, Interrupted Cutting, Profiling, Undercutting |
| Cutting Edge | Minus Tolerance Corner Radius; Polished; Sharp Edge |
| Coating Process | PVD |
| Secondary Material Application ISO Code | M |
| Manufacturer Grade | PR1225 |
| Package Quantity | 1 |
