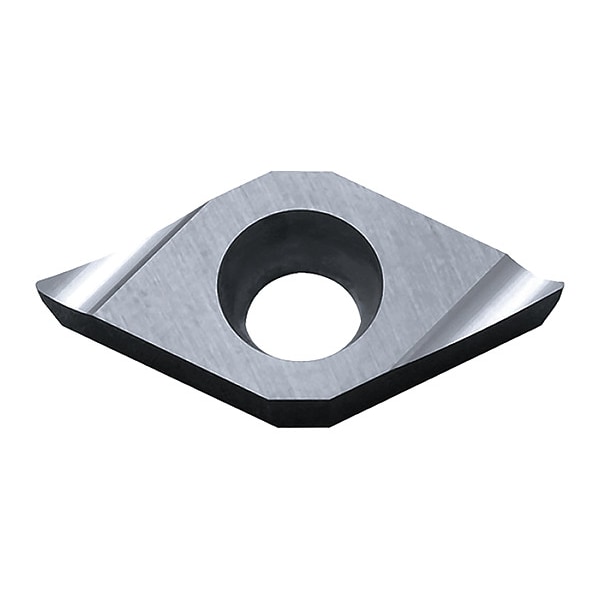

Diamond Turning Insert, Diamond, 3, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | DCGT11T304R-A3 |
| Cutting Direction | Right Hand |
| Features | For Stable Cutting of Cast Iron, Non-Ferrous Materials, Non-Metals and Titanium Alloys |
| Thickness | 2.5 |
| Cutting Edge | Sharp Edge |
| Cutting Application | Back Boring, Copying, External Turning, Sub-Spindle Turning |
| Through Hole Inside Dia. | 0.1732 in |
| ANSI Code | DCGT3251RA3 |
| Material - Machining | Carbide |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Number of Cutting Edges | 2 |
| Chip-Breaker Style | Medium Finishing |
| Included Angle | 55 Degrees |
| Primary Material Application ISO Code | N |
| Insert Holding Type | Screw |
| Shape | Diamond |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| General Shape | Diamond |
| Finish - Machining | Bright |
| Material Grade - Machining | WC-Co |
| Clearance Angle | 7 deg |
| Manufacturer Grade | KW10 |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | A3 |
| Package Quantity | 1 |
