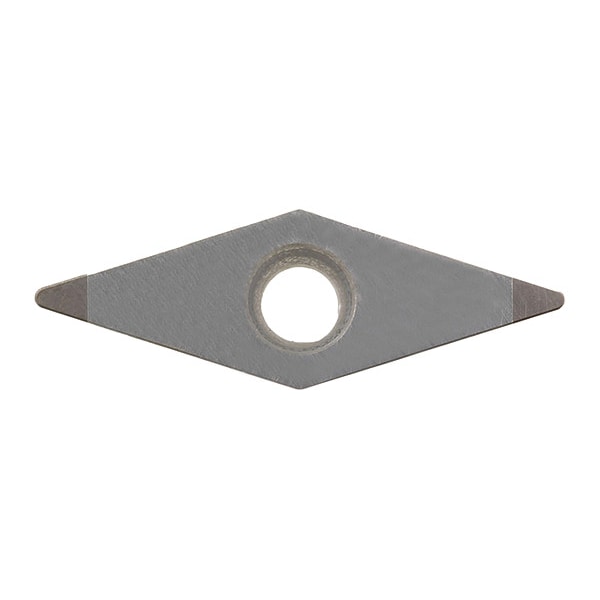

Diamond Turning Insert, Diamond, 3, 2
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | Positive |
| ISO Number | VBGW160408T00815ME |
| Cutting Direction | Neutral |
| Features | Heat-Resistant Megacoat |
| Thickness | 3 |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Measurement System | Fractional Inch |
| Insert Holding Type | Screw |
| ANSI Code | VBGW332T00315ME |
| Material - Machining | CBN |
| Manufacturer Grade | KBN05M |
| Number of Cutting Edges | 2 |
| Primary Material Application | Hardened Steel |
| Included Angle | 35 Degrees |
| Clearance Angle | 5 deg |
| Finish - Machining | Megacoat |
| Shape | Diamond |
| Chip-Breaker Code | ME |
| Cutting Application | Back Boring, Copying, External Turning, Facing, Finishing, Internal Facing, Profiling, Undercutting |
| Chip-Breaker Style | Finishing |
| Primary Material Application ISO Code | H |
| General Shape | Diamond |
| Through Hole Inside Dia. | 0.1732 in |
| Package Quantity | 1 |
