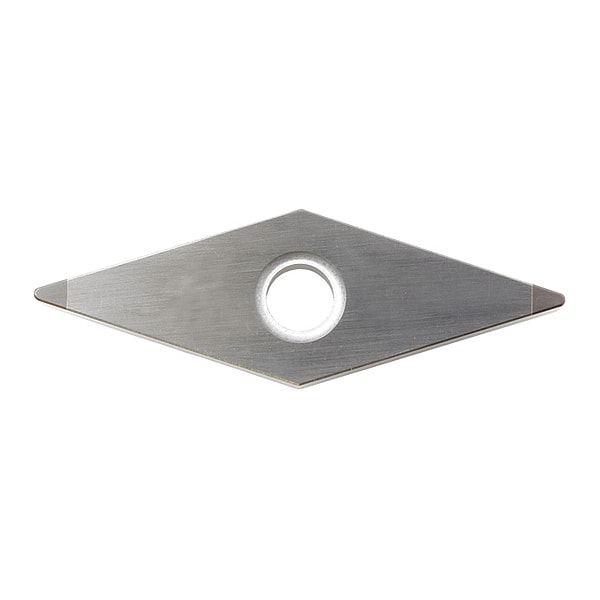

Diamond Turning Insert, Diamond, 3, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Negative |
| ISO Number | VNGA160402ME |
| Cutting Direction | Neutral |
| Thickness | 3 |
| Features | Good Wear Resistance and Toughness, High Stability |
| Chip-Breaker Style | Finishing |
| Included Angle | 35 Degrees |
| ANSI Code | VNGA3305ME |
| Through Hole Inside Dia. | 0.15 in |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H |
| Clearance Angle | 0 deg |
| Measurement System | Fractional Inch |
| Manufacturer Grade | KBN525 |
| Material - Machining | CBN |
| Cutting Application | Copying, External Turning, Facing, Undercutting |
| Finish - Machining | Bright |
| Chip-Breaker Code | ME |
| Shape | Diamond |
| Insert Holding Type | Screw |
| Number of Cutting Edges | 2 |
| General Shape | Diamond |
| Hole Type | Straight Hole |
| Package Quantity | 1 |
