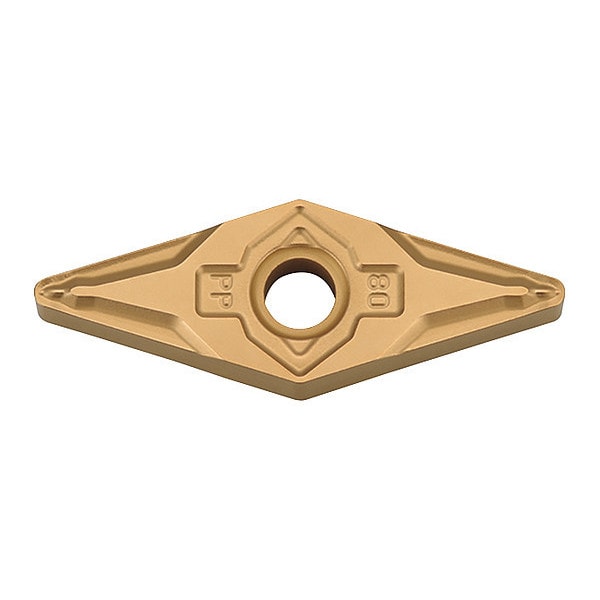

Diamond Turning Insert, Diamond, 3, VNMG, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNMG |
| Inscribed Circle | 3 |
| Insert Size | 3,305 |
| Chip-Breaker | Yes |
| Grade | CA525 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | VNMG160402PP |
| ANSI Number | VNMG3305PP-CA525 |
| Mounting Style | Clamp |
| No. of Edges | 4 |
| Insert Thickness | 3/16 in |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.0079 in |
| For Use With | Toolholders, Boring Bars |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.15 in |
| Stainless (M) Compatibility | No |
| Cutting Direction | Neutral |
| Coating | TiN, Al2O3, TiCN |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Steel (P) |
| Material - Machining | Carbide |
| Chip-Breaker Style | On Two Sides, Molded |
| Manufacturer Grade | CA525 |
| Cutting Application | Turning |
| Chip-Breaker Code | PP |
| Shape | Rhombic |
| Included Angle | 35 Degrees |
| Finish - Machining | TiCN+Al2O3+TiN |
| Insert Holding Type | Screw |
| ANSI Code | VNMG3305PP CA525 |
| Thickness | 3 |
| Clearance Angle | 0 deg |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 4 |
| Material | Carbide |
| Package Quantity | 1 |
