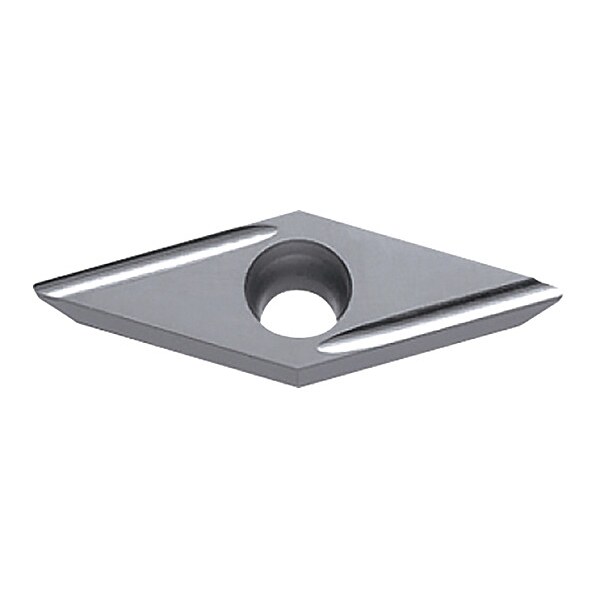

Diamond Turning Insert, Diamond, 3/16 in, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 3/16 in |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | VPET080202FL-USF |
| Cutting Direction | Left Hand |
| Features | General Purpose Cermet with Superior Wear Resistance and Toughness |
| Thickness | 1.5 |
| Through Hole Inside Dia. | 0.0906 in |
| General Shape | Diamond |
| Number of Cutting Edges | 2 |
| Material - Machining | Cermet |
| Included Angle | 35 Degrees |
| Primary Material Application ISO Code | P |
| Chip-Breaker Code | USF |
| Measurement System | Fractional Inch |
| Secondary Material Application ISO Code | M |
| Material Grade - Machining | TiCN+NbC Component |
| Clearance Angle | 11 deg |
| Manufacturer Grade | TN60 |
| Cutting Edge | Precision; Sharp Edge; Super Fine |
| Finish - Machining | Bright |
| Shape | Diamond |
| Secondary Material Application | Stainless Steel |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Insert Holding Type | Screw |
| ANSI Code | VPET151505FLUSF |
| Cutting Application | Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting |
| Primary Material Application | Steel |
| Package Quantity | 1 |
