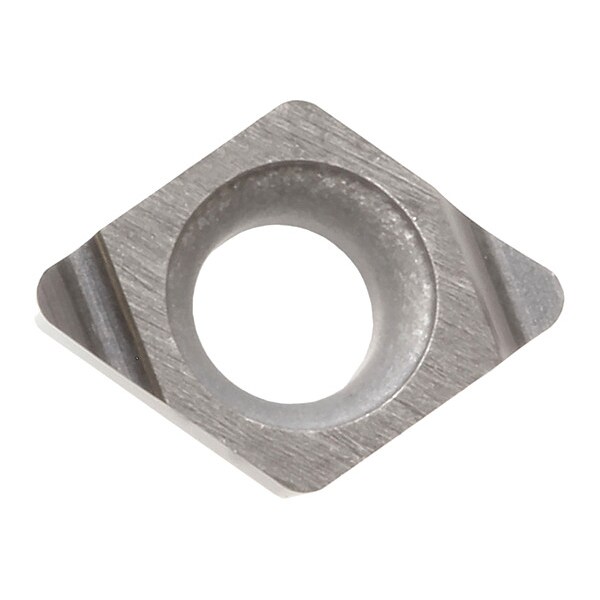

Diamond Turning Insert, Diamond, 3.50mm, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 3.5 mm |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | JCGT030104R-F |
| Cutting Direction | Right Hand |
| Features | General Purpose Cermet with Superior Wear Resistance and Toughness |
| Thickness | 1.4 mm |
| Primary Material Application | Steel |
| Through Hole Inside Dia. | 0.0748 in |
| Material - Machining | Cermet |
| Manufacturer Grade | TN60 |
| General Shape | Diamond |
| Finish - Machining | Bright |
| Cutting Application | Back Boring, Boring, Internal Facing |
| Measurement System | Metric |
| Material Grade - Machining | TiCN+NbC Component |
| ANSI Code | JCGT11091RF |
| Included Angle | 70 Degrees |
| Secondary Material Application ISO Code | M |
| Number of Cutting Edges | 2 |
| Insert Holding Type | Screw |
| Cutting Edge | Sharp Edge |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Clearance Angle | 7 deg |
| Chip-Breaker Style | Finishing |
| Chip-Breaker Code | F |
| Secondary Material Application | Stainless Steel |
| Shape | Diamond |
| Primary Material Application ISO Code | P |
| Package Quantity | 1 |
