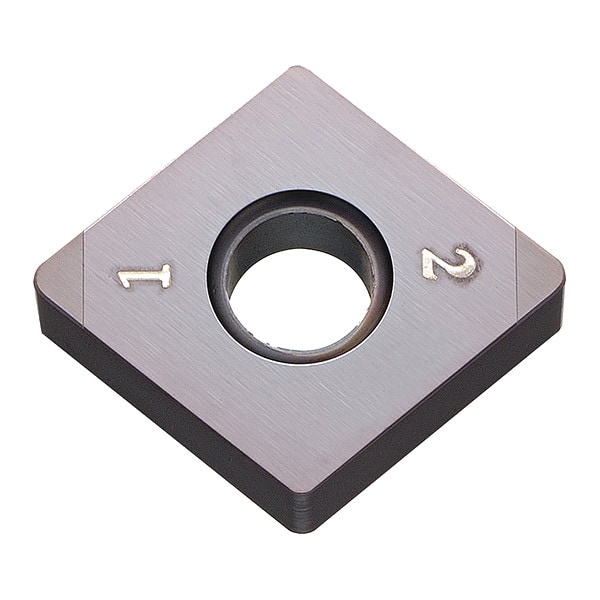

Diamond Turning Insert, Diamond, 4, 2
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | Negative |
| ISO Number | CNGA120408S01215MEW |
| Cutting Direction | Neutral |
| Thickness | 3 |
| Features | Heat-Resistant Megacoat |
| Through Hole Inside Dia. | 0.2031 in |
| Finish - Machining | Megacoat |
| Primary Material Application ISO Code | H |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | MEW |
| Primary Material Application | Hardened Steel |
| Chip-Breaker Style | Finishing |
| Insert Holding Type | Screw |
| Wiper Insert | Yes |
| Clearance Angle | 0 deg |
| Manufacturer Grade | KBN05M |
| General Shape | Diamond |
| Cutting Application | Boring, External Turning, Facing, Finishing, Internal Facing |
| Shape | Diamond |
| Hole Type | Straight Hole |
| Number of Cutting Edges | 2 |
| Measurement System | Fractional Inch |
| Material - Machining | CBN |
| ANSI Code | CNGA432S00515MEW |
| Package Quantity | 1 |
