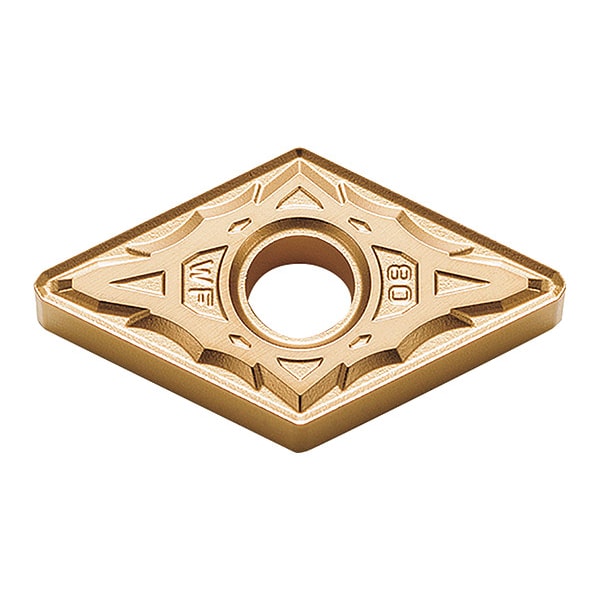

Diamond Turning Insert, Diamond, 4, 3
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 3 |
| Rake | Negative |
| ISO Number | DNMX150612WF |
| Cutting Direction | Neutral |
| Thickness | 4 |
| Features | Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish |
| Shape | Diamond |
| Measurement System | Fractional Inch |
| Hole Type | Screw Hole |
| Primary Material Application | Steel |
| Insert Holding Type | Screw |
| Manufacturer Grade | PV720 |
| Cutting Application | Boring, Copying, External Turning |
| Included Angle | 55 Degrees |
| Material Grade - Machining | TiCN Component |
| Chip-Breaker Code | WF |
| General Shape | Diamond |
| Through Hole Inside Dia. | 0.2031 in |
| ANSI Code | DNMX443WF |
| Secondary Material Application ISO Code | M |
| Chip-Breaker Style | Finishing |
| Finish - Machining | Megacoat Nano |
| Clearance Angle | 0 deg |
| Secondary Material Application | Stainless Steel |
| Number of Cutting Edges | 4 |
| Primary Material Application ISO Code | P |
| Wiper Insert | Yes |
| Material - Machining | Cermet |
| Coating Process | PVD |
| Package Quantity | 1 |
