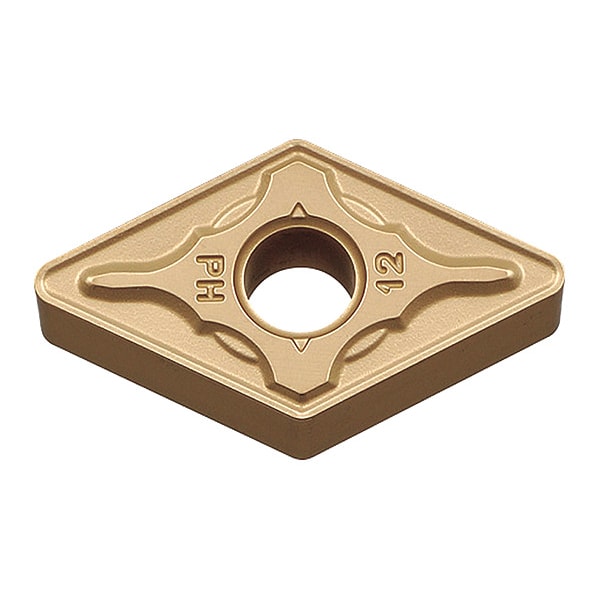

Diamond Turning Insert, Diamond, 4, 4
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 4 |
| Rake | Negative |
| ISO Number | DNMG150416PH |
| Cutting Direction | Neutral |
| Thickness | 3 |
| Features | Thickened Alumina with Good Thermal Resistance (Twice as Thick as Conventional Coating) and Specialized Post-Coating Process Prevents Adhesion |
| Chip-Breaker Code | PH |
| Manufacturer Grade | CA025P |
| Cutting Application | Boring, Copying, External Turning, General to Interrupted Cutting |
| Shape | Diamond |
| ANSI Code | DNMG434PH |
| Primary Material Application | Steel |
| Material Grade - Machining | Micro Columnar Coating Structure |
| Material - Machining | Carbide |
| Included Angle | 55 Degrees |
| Primary Material Application ISO Code | P |
| Hole Type | Straight Hole |
| Finish - Machining | TiCN+Al2O3+TiN |
| Coating Process | CVD |
| Through Hole Inside Dia. | 0.2031 in |
| Clearance Angle | 0 deg |
| Measurement System | Fractional Inch |
| Insert Holding Type | Screw |
| General Shape | Diamond |
| Chip-Breaker Style | Roughing |
| Number of Cutting Edges | 4 |
| Package Quantity | 1 |
